S02812810516ICR

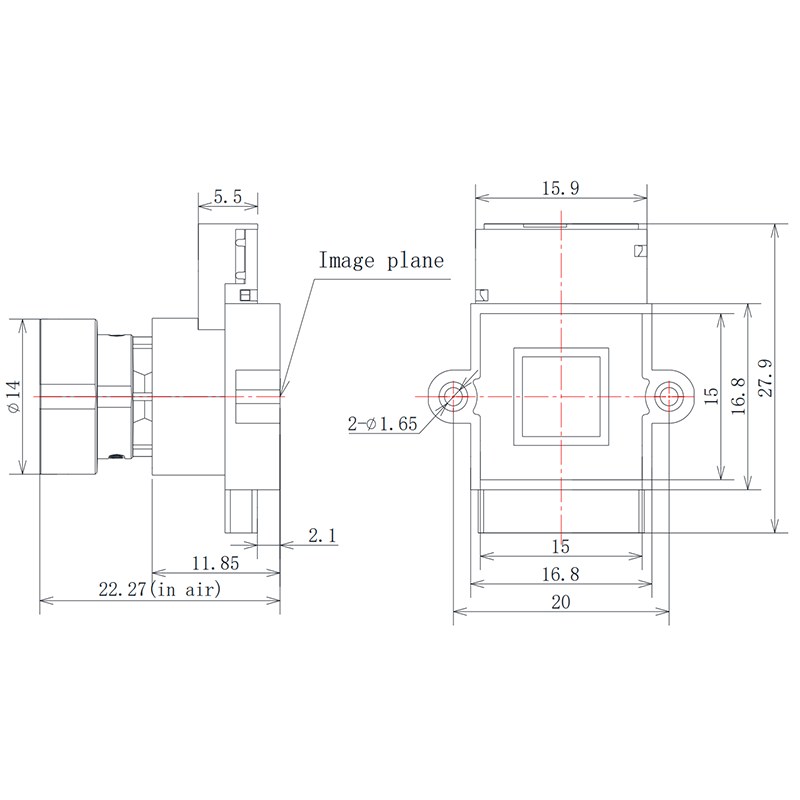

Wide-angle 8-Megapixel M12 Low Distortion lens with 122° diagonal FOV, F1.6 aperture, and ICR holder for security applications.
S02812810516ICR is Wide-angle 8-Megapixel M12 Low Distortion lens with 122° diagonal FOV, F1.6 aperture, and ICR holder for security applications.
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V. (IMX415) | 122°(D) |
| 105°(H) | |
| 58°(V) | |
| RESOLUTION | 8 MegaPixel |
| TV DISTORTION | <-13.3% |
| APERTURE | F1.6 |
| MOUNT | M12X0.5 |
| T.T.L. | 22.27mm |
| STRUCTURE | With ICR holder |
