CCL14041MP
Low distortion wide angle 4.1mm 50° M12 mount lens 1/4″ F4.0 HD 5MP rectilinear scanning
CCL14041MP Low distortion wide angle 4.1mm 50° M12 mount lens 1/4″ F4.0 HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 4.1mm |
| F.O.V. | 60°(D) |
| 50°(H) | |
| 38°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-0.4% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 21.9mm |

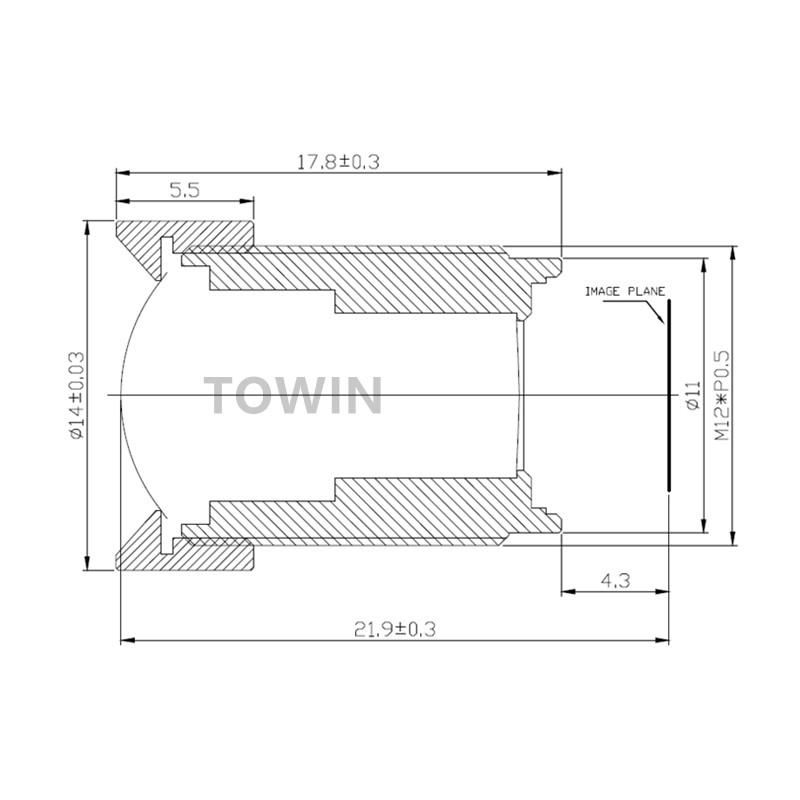

| DIMENSION | Φ14×17.8mm |
| LENS COMPOMEMT | 3G2P |
CCL14041MP Low distortion wide angle 4.1mm 50° M12 mount lens F4.0 HD 5MP rectilinear scanning
