Wide Angle M9 S-mount board lens 3.1mm short TTL for OV9750 Car view recorder

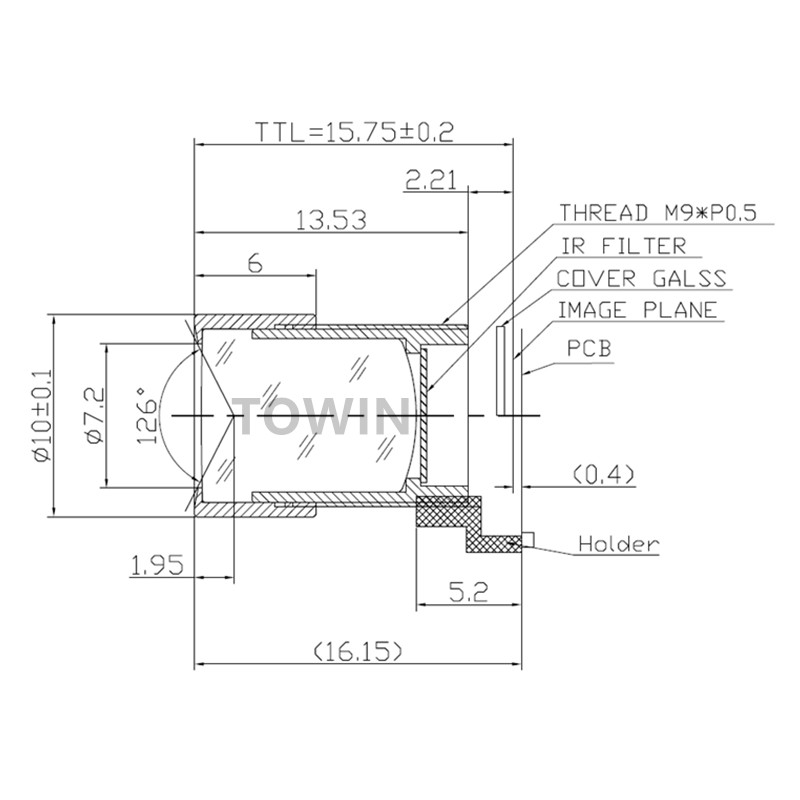

CCL13031MPFM9 Wide Angle M9 S-mount board lens 3.1mm short TTL for OV9750 Car view recorder
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 3.1mm |
| F.O.V. | 126°(D) |
| 92°(H) | |
| 67°(V) | |
| RESOLUTION | 4 MegaPixel |
| DISTORTION | <-27% |
| APERTURE | F2.0 |
| MOUNT | M9X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 4.79mm |
| M.O.D. | 0.2m |
| LENS COMPOMEMT | 6G+IR cut |
CCL13031MPFM9 Wide Angle M9 S-mount board lens 3.1mm short TTL for OV9750 Car view recorder
