CCL15009F

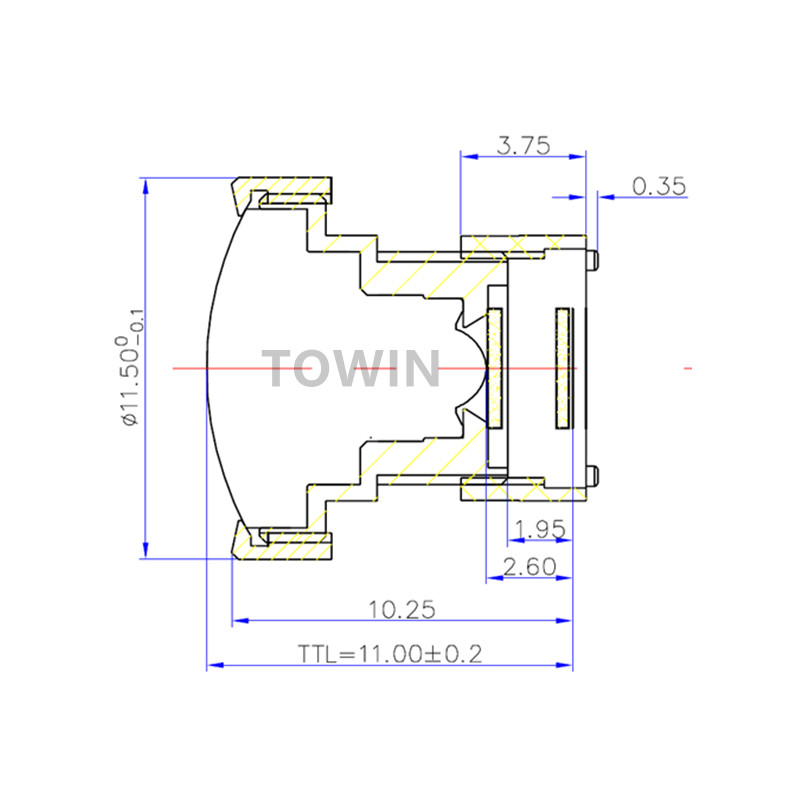

Low distortion wide angle 120° M7 mount lens for car rear view recorder with short TTL
CCL15009F Low distortion wide angle 120° M7 mount lens for car rear view recorder with short TTL
| IMAGE FORMAT | 1/5″ |
| FOCAL LENGTH | 0.9mm |
| F.O.V. | 150°(D) |
| 120°(H) | |
| 85°(V) | |
| RESOLUTION | VGA |
| TV-DISTORTION | <-10% |
| APERTURE | F2.0 |
| MOUNT | M7X0.35 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 11mm |
| LENS COMPOMEMT | 2G2P+IR |
CCL15009F Low distortion wide angle 120° M7 mount lens for car rear view recorder with short TTL
