CCL140220MPF

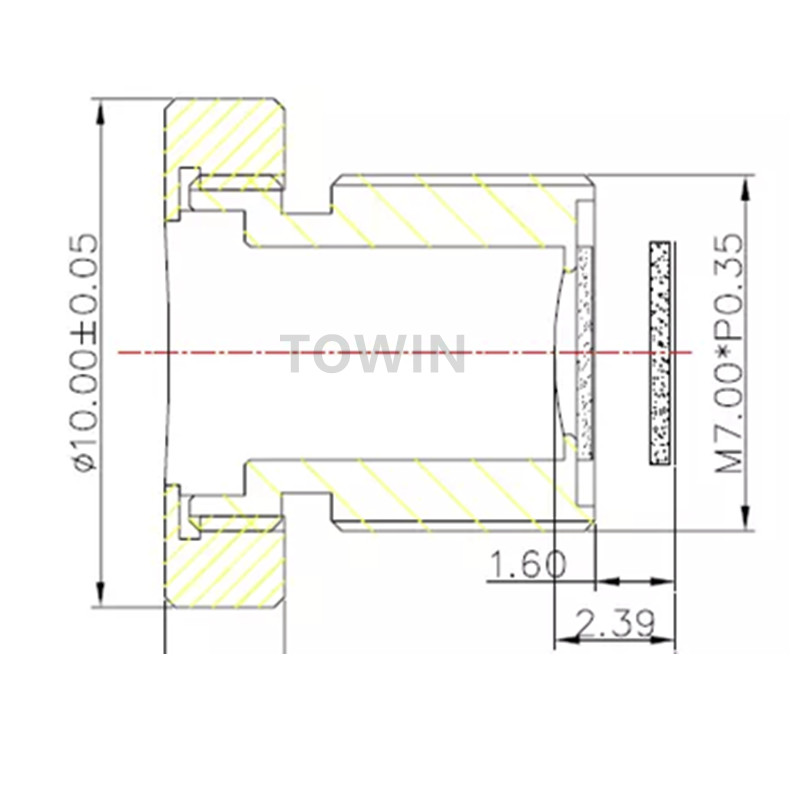

Low distortion wide angle 1/4″ 2mm 110° M7 mount lens HD 2MP F2.0 rectilinear scanning
CCL140220MPF Low distortion wide angle 1/4″ 2mm 110° M7 mount lens HD 2MP F2.0 rectilinear scanning
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 2.0mm |
| F.O.V. | 130°(D) |
| 110°(H) | |
| 95°(V) | |
| RESOLUTION | 2 MP |
| TV DISTORTION | <-1% |
| APERTURE | F2.0 |
| MOUNT | M7x0.35 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 10.07mm |
| CONSTRUCTION | 3G1P+IRF |
CCL140220MPF Low distortion wide angle 2mm 110° M7 mount lens HD 2MP F2.0 rectilinear scanning
