M804312706520F
1/2.7″ 2 megapixel 4.3mm, F2.0 low distortion M12 S-mount board lens with low CRA 18° and short T.T.L.7.8mm.
M804312706520F is a 4.3mm low distortion M12 S-mount board lens. It is for 1/2.7″ 2 megapixel sensors, such as OV2710, OV2735, AR0230. It is used in face recognition with low CRA and short T.T.L.7.8mm.
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 4.3mm |
| F.O.V. | 73°(D) |
| 65°(H) | |
| 40°(V) | |
| RESOLUTION | 2MP |
| DISTORTION | 0.5% |
| APERTURE | F2.0 |
| MOUNT | M8X0.25 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| B.F.L. | 1.45mm |
| CONSTRUCTION | 4P+IRF |

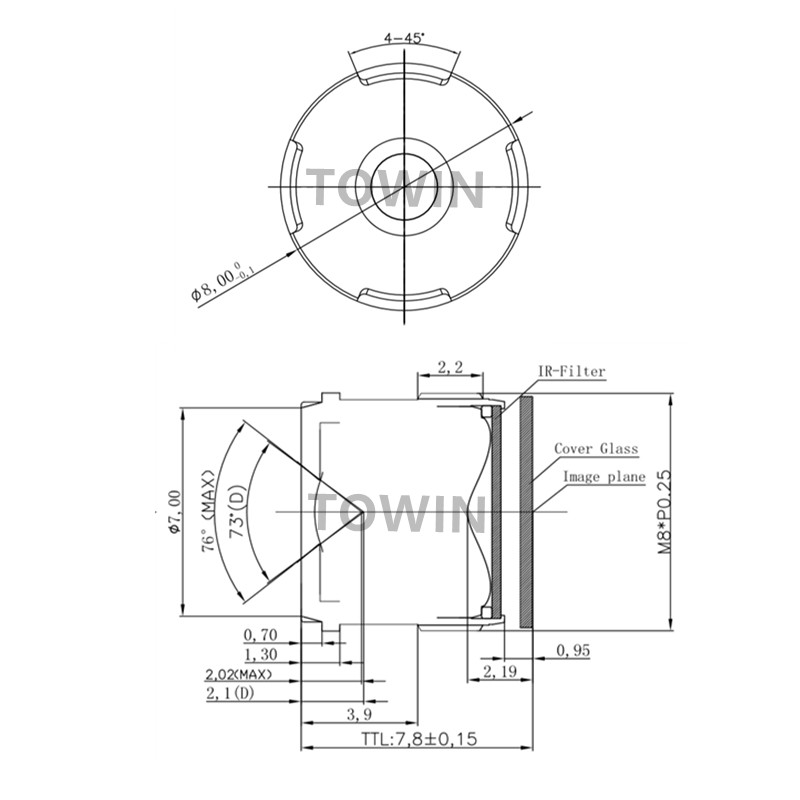

M804312706520F 4.3mm low distortion M12 S-mount board lens-1
