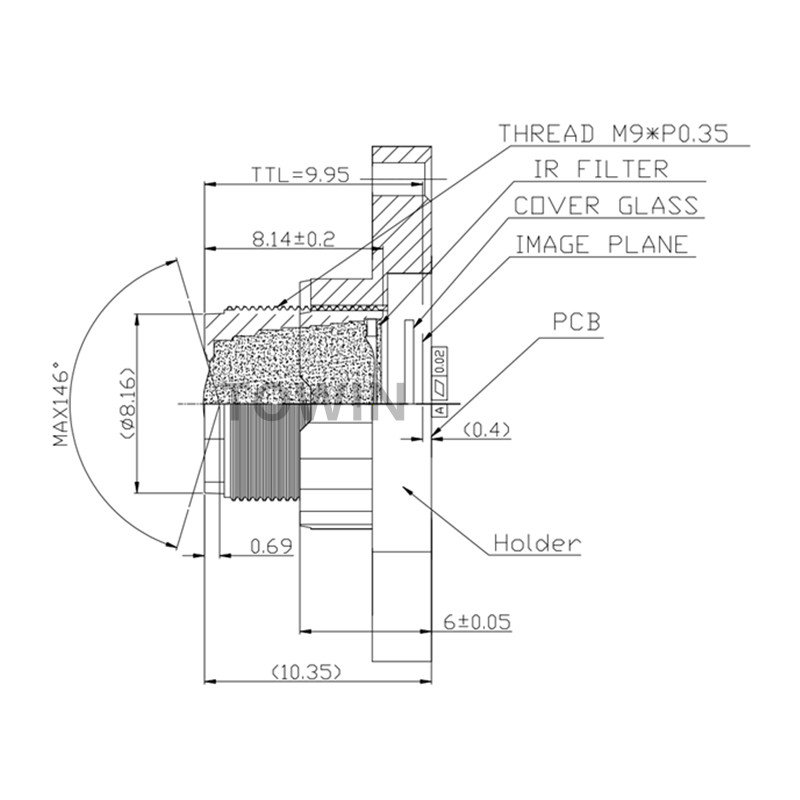

Low distortion wide angle 1/2.7″ 2.7mm 102° M9 mount lens with HD 2MP OV2710 UAV drone
CCL127027MP Low distortion wide angle 1/2.7″ 2.7mm 102° M9 mount lens with HD 2MP OV2710 UAV drone
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 2.7 mm |
| F.O.V. | 122°(D) |
| 102°(H) | |
| 62°(V) | |
| RESOLUTION | 2 MP |
| TV DISTORTION | <-12% |
| APERTURE | F2.4 |
| MOUNT | M9xP0.35 |
| IRIS | Fixed |
| B.F.L. | 2.2mm |
| T.T.L. | 9.95mm |
| COMPONENT | 6E+850nm filter |
CCL127027MP Low distortion wide angle 2.7mm 102° M9 mount lens with HD 2MP OV2710 UAV drone
