Low light F1.4 HD CCTV M12 S-mount board lens 6mm 2MP OV2710 low distortion
CCL127060MP Low light F1.4 HD CCTV M12 S-mount board lens 6mm 2MP OV2710 low distortion
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 6mm |
| F.O.V. | 75°(D) |
| 63°(H) | |
| 44°(V) | |
| RESOLUTION | 2 MP |
| APERTURE | F1.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| TTL | 24.89 |
| M.O.D. | 0.2m |

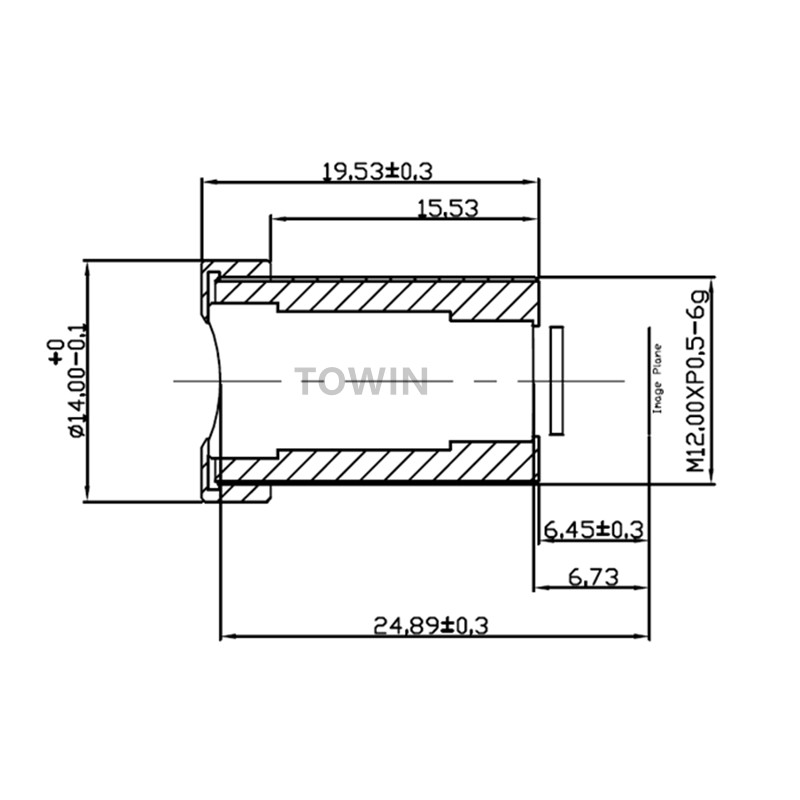

| DIMENSION | Φ14×19.5mm |
| LENS COMPOMEMT | 5G |
CCL127060MP Low light F1.4 HD CCTV M12 S-mount board lens 6mm 2MP OV2710 low distortion
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
