CCL127036MP

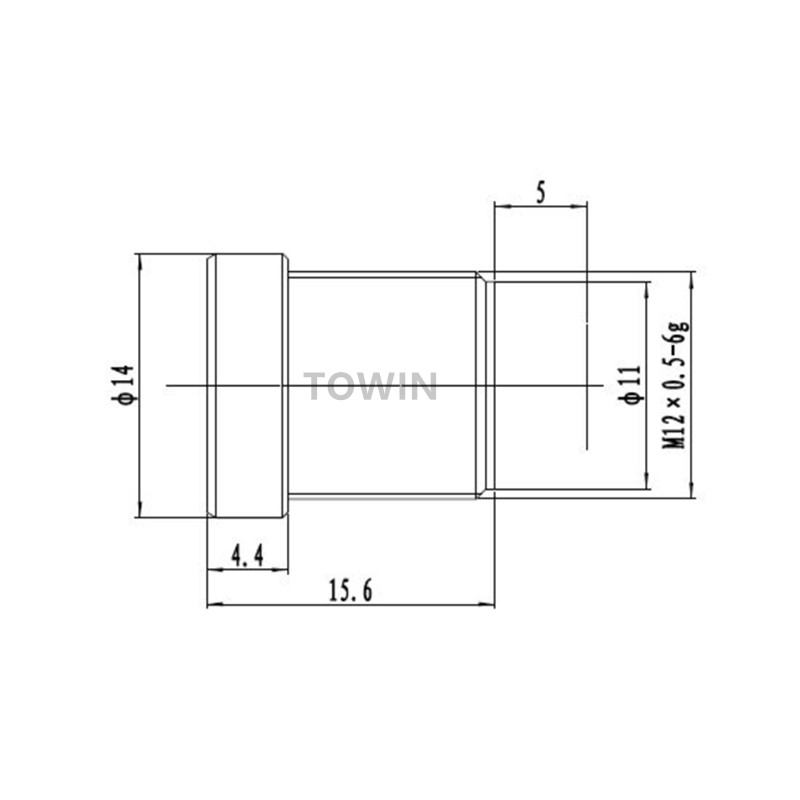

HD CCTV Wide Angle M12 S-mount board lens 3.6mm IR corrected for OV2710 2MP
CCL127036MP HD CCTV Wide Angle M12 S-mount board lens 3.6mm IR corrected for OV2710 2MP
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 3.6mm |
| F.O.V. | 120°(D) |
| 96°(H) | |
| 72°(V) | |
| RESOLUTION | 3Megapixel |
| APERTURE | F2.6 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.7mm |
| M.O.D. | 0.3m |
| LENS COMPOMEMT | 5G |
CCL127036MP HD CCTV Wide Angle M12 S-mount board lens 3.6mm IR corrected for OV2710 2MP
