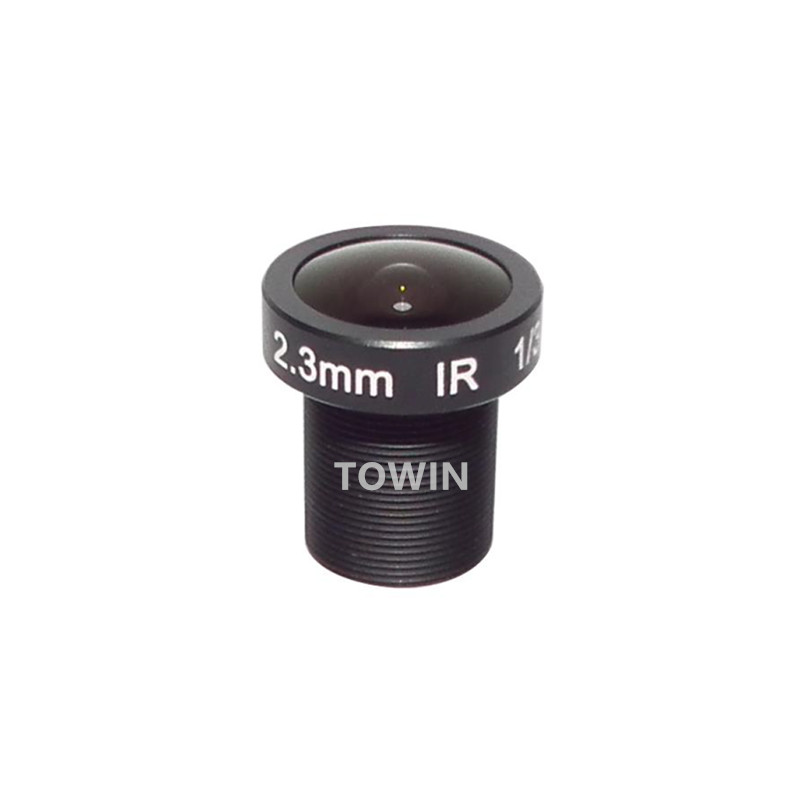

HD CCTV Wide Angle M12 S-mount board lens 2.3mm for IMX290 4MP HFOV154° F2.2
CCL12802322MP HD CCTV Wide Angle M12 S-mount board lens 2.3mm for IMX290 4MP HFOV154° F2.2

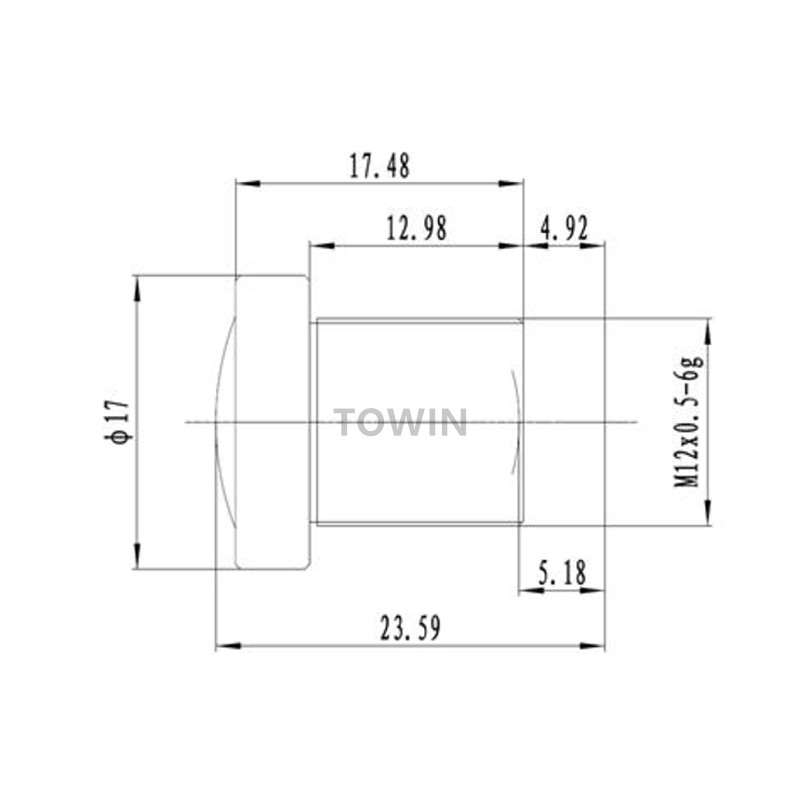

| IMAGE FORMAT | MAX Φ6mm |
| FOCAL LENGTH | 2.3mm |
| F.O.V.(sensor IMX290) | 172°(D) |
| 154°(H) | |
| 80°(V) | |
| RESOLUTION | 4 Megapixel |
| OPTICAL DISTORTION | <-90% |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| T.T.L. | 23.59mm |
| B.F.L. | 5.18mm |
| M.B.F.L. | 4.92mm |
| M.O.D. | 0.3m |
| LENS COMPOMEMT | 6G |
