Low distortion wide angle 4.4mm 1/2.5″ 67° M12 mount lens rectilinear scanning HD 8MP

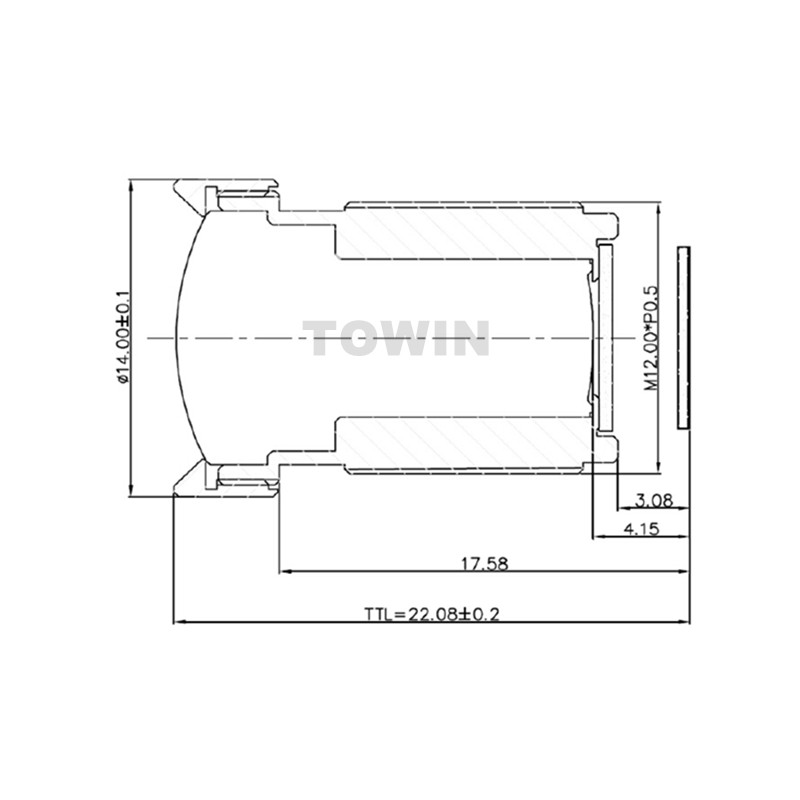

CCL125044MPF Low distortion wide angle 1/2.5″ 4.4mm 67° M12 mount lens rectilinear scanning HD 8MP
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 4.4mm |
| F.O.V. | 80°(D) |
| 67°(H) | |
| 55°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <1% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 22.08mm |
| DIMENSION | Φ14x19mm |
| CONSTRUCTION | 4G2P+IRF |
CCL125044MPF Low distortion wide angle 4.4mm 67° M12 mount lens rectilinear scanning HD 8MP
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
