CCL123030MPCS

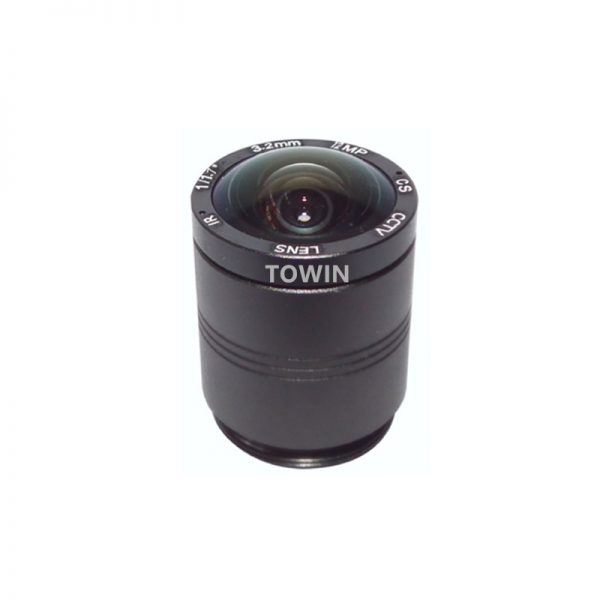

CCTV CS mount lens 1/2.3″ 3.2mm wide angle IR corrected lens 12MP IMX226 F2.0 day night fixed Iris
CCL123030MPCS CCTV CS mount lens 1/2.3″ 3.2mm wide angle IR corrected lens 12MP IMX226 F2.0 day night fixed Iris
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 3mm |
| F.O.V. | 136°(D) |
| 114°(H) | |
| 83° (V) | |
| RESOLUTION | 12 MP |
| APERTURE | F2.0 |
| MOUNT | CS |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.94mm |
| IR | Corrected |
CCL123030MPCS CCTV CS mount lens 3.2mm wide angle IR corrected lens 12MP IMX226 F2.0 day night fixed Iris
