CCL118042MP
S02713011625F
03/19/2020
CCL1345PMP
03/24/2020

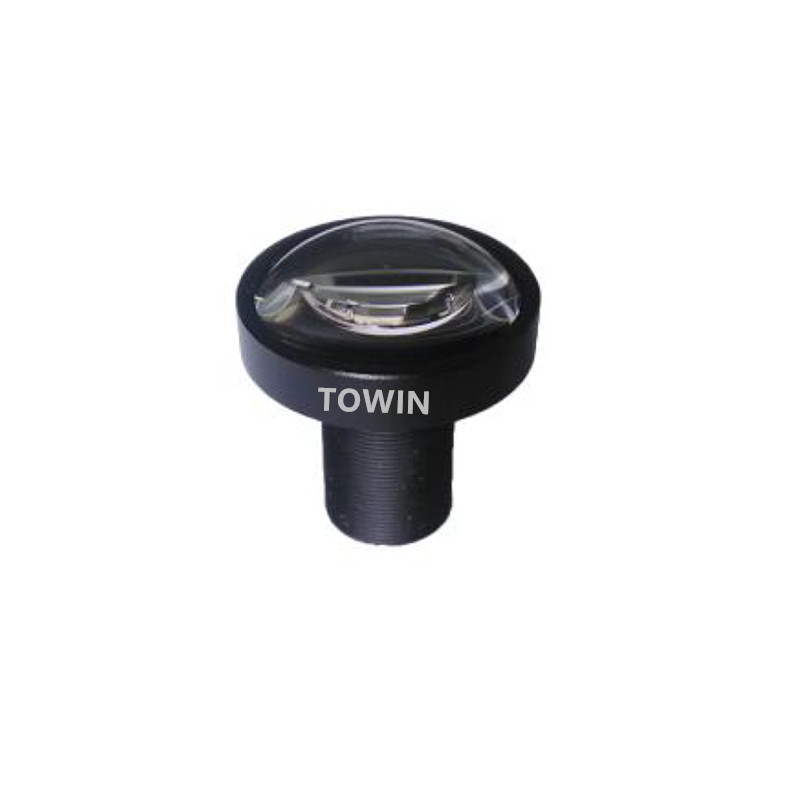

CCL118042MP is a low distortion IR corrected M12 CCTV lens. It is for 1/1.8″ sensors like IMX185, IMX385. And it is a 2 Megapixel HD S-mount board lens with large aperture F1.8 for IP security surveillance camera.
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 4.2mm |
| F.O.V. | 94°(D) |
| 86°(H) | |
| 51°(V) | |
| RESOLUTION | 2 MP |
| DISTORTION | <-6.9% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| B.F.L. | 6.18mm |
| DIMENSION | Φ25×23.1mm |
| LENS COMPONEMT | 6G |
| IR | Corrected |

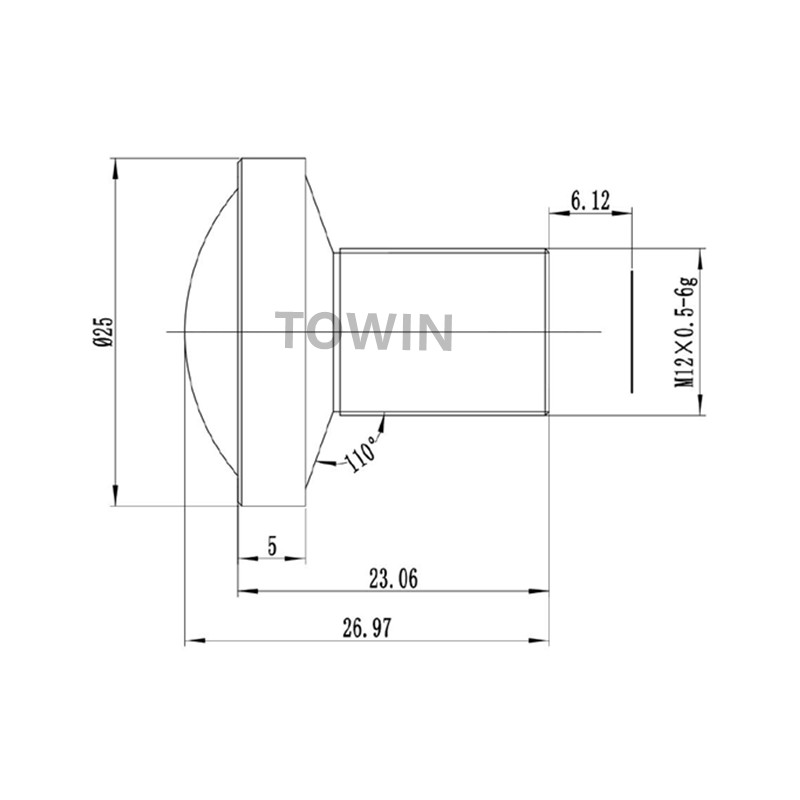

CCL118042MP 4.2mm low distortion IR corrected CCTV M12 lens-1
