Automotive Lens – A06611707116F69

A06611707116F69 is IP69K waterproof Automotive Lens with Built-In IR Filter, 6.5mm Wide-angle 8-Megapixel, F1.6 for surveillance and automotive applications.

6.5mm 8MP IP69K Automotive Lens

This 6.5mm 8MP IP69K automotive lens is designed for demanding automotive and outdoor imaging applications requiring a broad field of view, high-resolution imaging, and strong environmental protection. With an 81° diagonal FOV on a 1/1.73″ sensor, F1.6 aperture, IR-corrected optical construction, and IP69K waterproof protection, it is suitable for rugged camera systems operating in challenging environments.

For engineers selecting optics according to sensor format, FOV, focal length, and application requirements, the Lens Selection Guide provides additional guidance for optical configuration.

Product Core Highlights

• 8MP High-Resolution Imaging: Supports detailed image capture with the OX08B40 sensor.
• 81° Wide Field of View: Covers a broad scene with a 6.5mm focal length.
• IP69K Protection: Built for camera systems exposed to water, dust, and demanding operating environments.
• F1.6 Aperture: Provides a relatively bright optical configuration for challenging lighting conditions.
• IR-Corrected Optical Design: IRCF construction supports consistent imaging across relevant spectral conditions.

6.5mm IP69K Automotive Lens Applications

Core Application Scenes

This 6.5mm 8MP automotive lens is designed for camera systems that need to capture a broad surrounding area while maintaining high-resolution imaging. Its 81° diagonal field of view allows a single camera to cover a relatively large scene, making it suitable for automotive perception, vehicle-mounted monitoring, and rugged outdoor imaging systems.

The IP69K waterproof construction makes this lens particularly suitable for environments exposed to high-pressure water jets, dust, road spray, and frequent cleaning. It can therefore be integrated into camera modules installed on vehicles, outdoor equipment, and industrial systems where conventional optical assemblies may require additional environmental protection.

With an F1.6 aperture and 8MP resolution, the lens is also suited to applications where image detail must be maintained under variable lighting conditions. The IRCF optical construction further supports applications requiring controlled infrared optical performance.

For automotive imaging architectures involving multiple cameras and broad scene coverage, the ADAS solution provides a relevant reference for integrating optical components into advanced vehicle vision systems.

Compatible Device List

• Automotive Camera Modules: Suitable for vehicle-mounted cameras requiring wide-angle coverage and robust environmental protection.
• ADAS Vision Systems: The 81° diagonal FOV can support broad-area image acquisition for vehicle perception and surrounding-scene monitoring.
• Rugged Outdoor Cameras: IP69K protection makes the lens suitable for outdoor camera assemblies exposed to dust, water spray, and harsh weather.
• Smart Traffic Equipment: The high-resolution 8MP configuration can be integrated into traffic monitoring and roadside imaging systems requiring broad scene coverage.
• Industrial Vision Devices: The rugged construction can support imaging modules installed in demanding industrial environments.

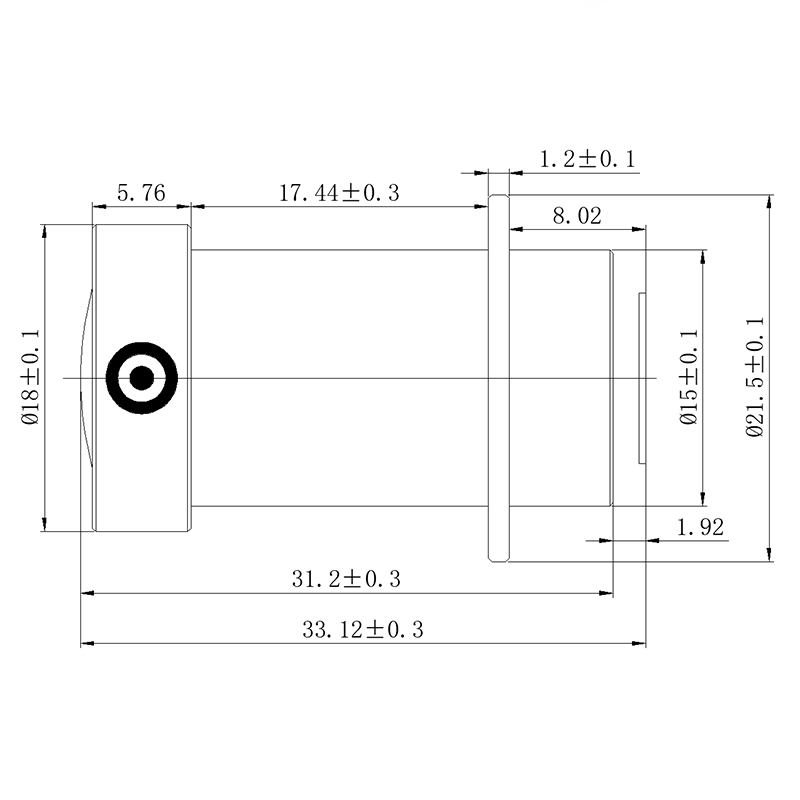

• OEM Camera Modules: The Φ15 (A-A) mounting configuration can be integrated into customized camera housings and vehicle-specific optical assemblies.

For additional automotive and transportation imaging applications, explore TOWIN’s Smart Traffic solutions.

Designed for automotive surround-view, ADAS, rugged outdoor imaging, and high-resolution wide-angle monitoring applications.

Frequently Asked Questions

Q: What sensor is this 8MP lens designed for?
A: The lens is specified for a 1/1.73″ image format and is listed with the OX08B40 sensor as the reference sensor.

Q: What is the field of view of this 6.5mm lens?
A: On the specified 1/1.73″ format, the lens provides an 81° diagonal, 71° horizontal, and 40° vertical field of view.

Q: What does the IP69K rating mean for this lens?
A: The IP69K specification indicates a high level of protection against dust and high-pressure, high-temperature water exposure, making it suitable for demanding automotive and outdoor environments.

Q: Is this lens suitable for automotive applications?
A: Yes. Its wide field of view, 8MP resolution, IP69K protection, F1.6 aperture, and compact Φ15 mounting configuration make it suitable for automotive camera modules and vehicle vision applications.

Q: Does this lens support infrared imaging?
A: The optical structure includes IRCF, indicating an IR-corrected optical configuration designed to maintain appropriate optical performance for systems involving infrared-related imaging requirements.

Q: Is the iris adjustable?
A: No. The lens uses a fixed F1.6 aperture, providing a consistent optical configuration for the target camera system.

Q: Can this lens be used for smart traffic monitoring?
A: Yes. Its 8MP resolution and broad 81° diagonal FOV can be useful for roadside and vehicle-mounted imaging systems that require wide-area visual coverage.
