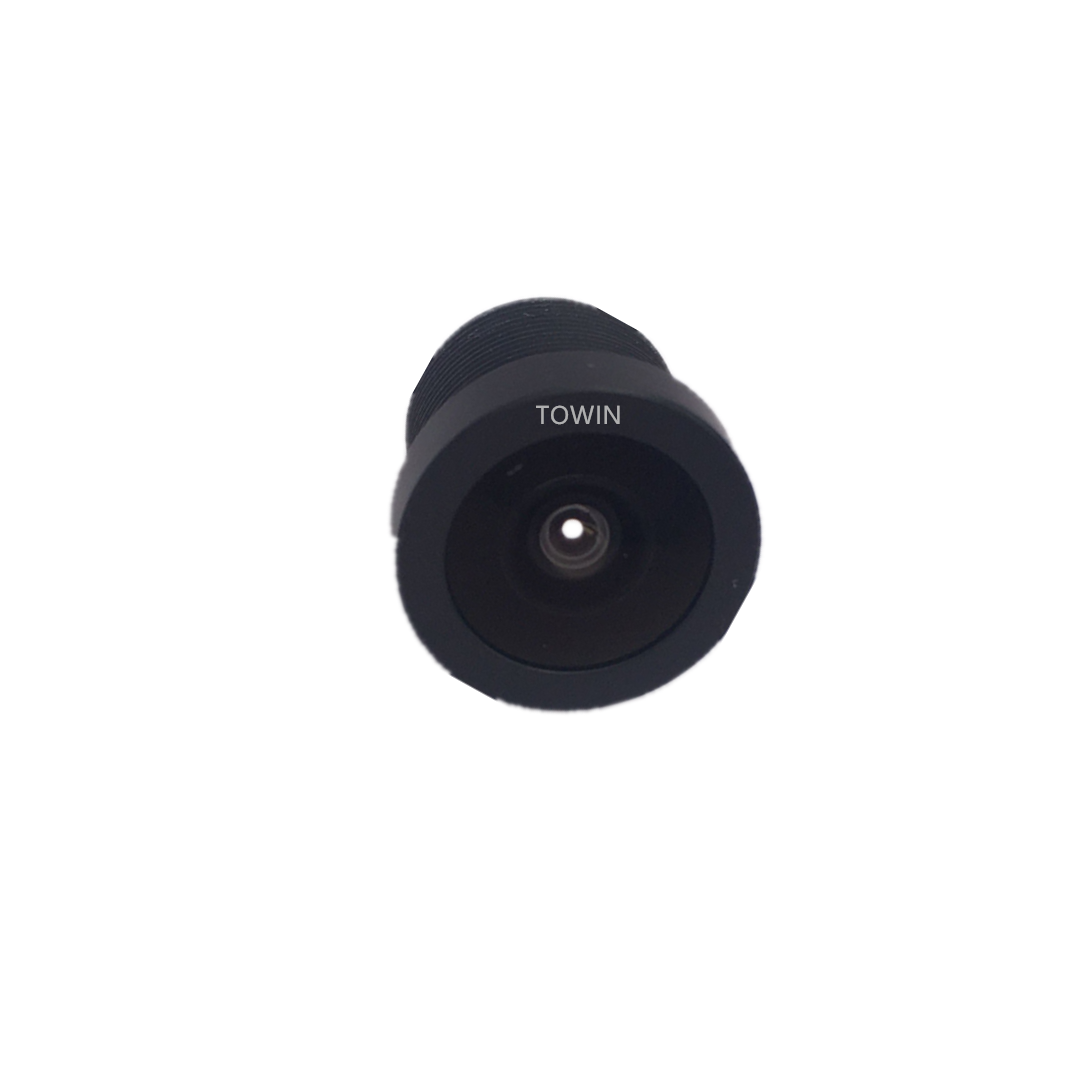

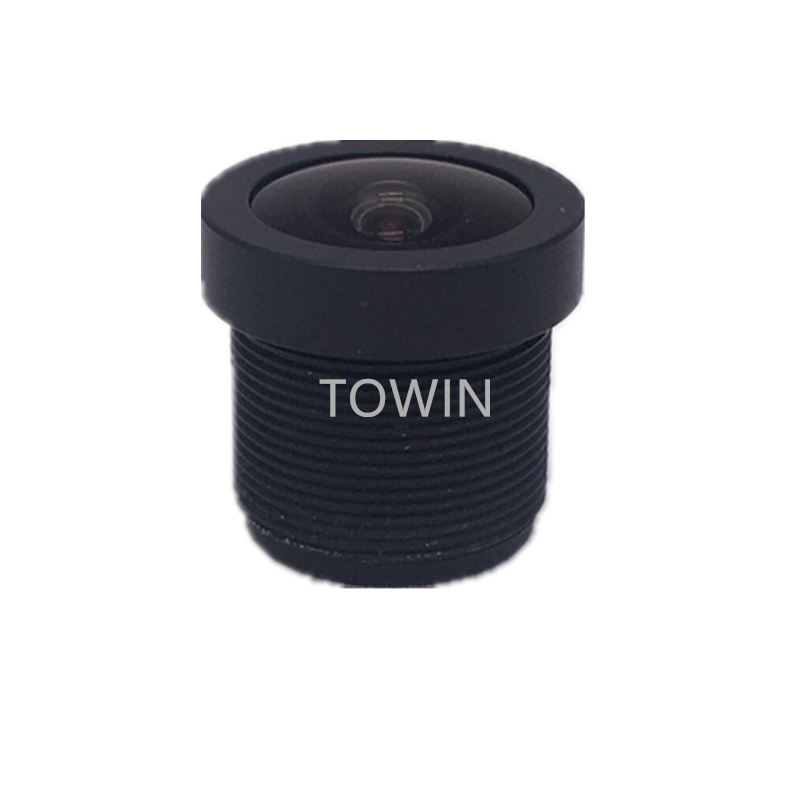

CCL13021MPR2 is a 2.1mm wide angle M12 S-mount board lens. It is designed for 1/3″ sensors, such as AR0130, AR0330, OV4688, IMX258. It is 3 Mega Pixel HD lens with short T.T.L. for Car driving recorder.
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V. | 149°(D) |
| 117°(H) | |
| 86°(V) | |
| F.O.V.(@AR0330) | 143°(D) |
| 109°(H) | |
| 81°(V) | |
| RESOLUTION | Megapixel |
| APERTURE | F2.5 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |

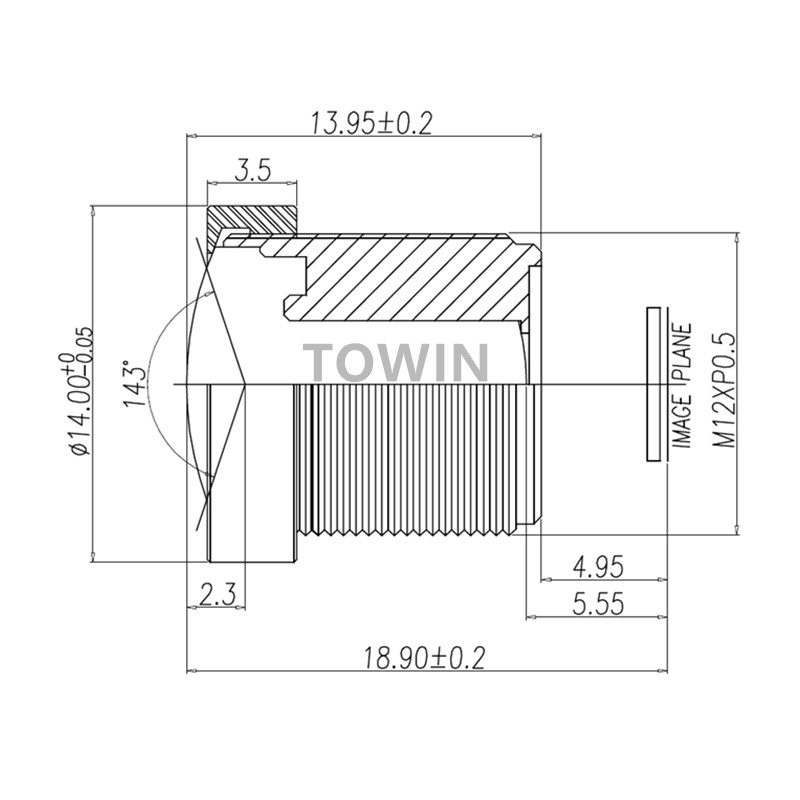

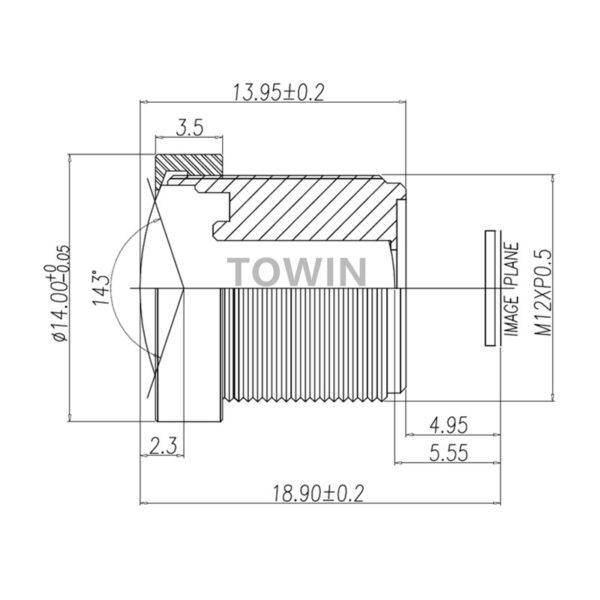

| B.F.L. | 5.55mm |
| M.O.D. | 0.1m |
| CONSTRUCTION | 6G |
