Key Takeaways
- 4k low distortion lens for drone camera provide high-resolution imaging at over 8 megapixels, avoiding edge stretching and distortion in aerial images and meeting the demands of high-precision surveying.
- Key specifications: sensor format matching, distortion rate, aperture, mount type, weight, TTL functionality, and operating temperature.
- TOWIN’s low-distortion lenses are specifically designed for drones: compact, lightweight, heat-resistant, and optimized for 4K.
- Low-distortion lenses outperform standard lenses in geometric accuracy, stitching success rate, and post-processing efficiency, making them suitable for surveying and filmmaking.
Introduction
4k low distortion lens for drone camera combine high resolution, low distortion, lightweight construction, and a wide field of view to meet the needs of professional aerial photography, surveying, mapping, and filmmaking. Ordinary wide-angle lenses often cause significant distortion, leading to reduced measurement accuracy. Dedicated 4K low-distortion lenses promptly eliminate even these effects, ensuring natural and accurate images even at wide angles.
Towin specializes in designing and manufacturing 4K low-distortion lenses for drone cameras, supporting various compact interfaces and tens of millions of pixel resolution for easy output of clear 4K video.
Core parameters and performance indicators
- 1. Resolution
- 4K (3840×2160) for professional aerial photography & mapping
- Supports 8–12MP+ still imaging for high-detail capture
- 2. Distortion Control
- Low distortion: −1.2% to −1.5%, ensuring geometric accuracy
- Optical correction via 4G2P / 3G3P lens structures
- 3. Focal Length & FOV
- Equivalent focal length: 20–28mm, ideal for aerial use
- FOV: 80°–94°, some up to 130° for wide-scene shooting
- 4. Aperture & Light Sensitivity
- Large aperture: F1.6–F2.8 for clear low-light imaging
- Improved light intake reduces noise and enhances clarity
- 5. Sensor Compatibility
- Works with 1/2.3″, 1/2.8″, 1/3″ sensors
- Compatible with high-res sensors such as IMX415, IMX678
- 6. Size & Interface
- Compact optical length: 23–25mm for drone integration
- Standard M12×P0.5 threaded mount for stable connection
- 7. Environmental Performance
- Operating temperature: −40°C to +85°C
- Blue glass UV filter for protection and clear imaging
- 8. Special Functions
- IR compatible: IR650nm, IR850nm, IR940nm for night use
- Day/night dual mode with ICR auto-switch for 24/7 monitoring

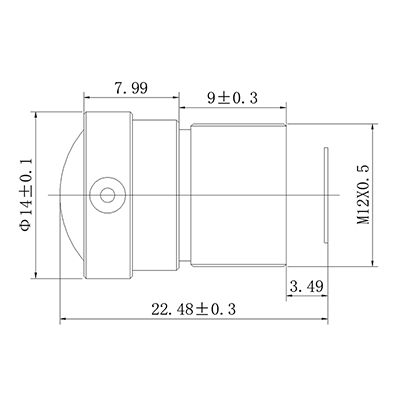

4K Low Distortion lens 12.5-Megapixel M12 lens
Why These Parameters Matter
- Ultra‑low distortion ensures architectural straightness and mapping precision.
- High resolution preserves fine details in 4K footage.
- Large aperture improves image quality in dawn/dusk/indoor flights.
- Compact mount & short TTL reduce payload and protect gimbal balance.
4K Low Distortion Lens for Drone Camera Application Scenarios
Aerial Mapping & Surveying
- Orthomosaic mapping
- Topographic surveying
- Construction site monitoring
- Agricultural inspection
- Requirement: Near‑zero distortion, high accuracy, consistent sharpness
Professional Cinematography
- Landscape filming
- Real estate & architecture
- Event & sports coverage
- Commercial advertising
- Requirement: Wide angle, natural perspective, high 4K clarity
Industrial & Security Drones
- Power line inspection
- Search & rescue
- Traffic monitoring
- Border patrol
- Requirement: Wide view, low distortion, IR compatibility, ruggedness
Consumer & Hobby Drones
- Travel vlogging
- Outdoor recreation
- Family filming
- Requirement: Lightweight, cost‑effective, stable imaging

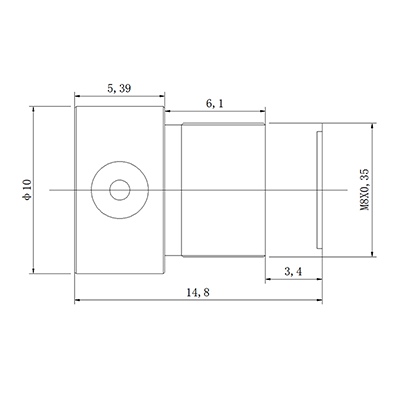

Low-distortion Wide-angle 8-Megapixel CCTV lens
Top 4K Low Distortion Lens Recommendations for Drones
1. S03112308825F: Mapping & Cinematography
12.5MP, true 4K compatible; distortion <-1%; 3.1mm focal length (102° diagonal FOV); -20°C~+70°C, M12×0.5 mount; 2G4P+IRCF, day/night use with consistent image quality.
2. M804812306618: Mini/Nano Drones
12.3MP, 4K ready; TV distortion <1%; 5.32mm ultra-short TTL, M8.2×0.25 mount; F1.8 aperture, compatible with 1/2.3″ & 1/2.5″ sensors, lightweight for longer flight time.
3. M803012709320F: Consumer Drones
8MP, 4K compatible; TV distortion <-0.4%; built-in IRCF; 3.0mm focal length (101° diagonal FOV); M8×0.35 mount, 1G5P+IRCF, budget-friendly and reliable.
4. S25023002014F: Long-Range Drone Inspection
8MP, 25mm telephoto focal length; TV distortion <0.4%; 1/1.7″ sensor compatible, M12×0.5 mount; F1.6 aperture; 6G+IRCF, -20°C~+70°C, durable for harsh environments.
Parameter Comparison
| Model | Sensor | Resolution | Focal Length | FOV | Distortion | Aperture | Mount | TTL | Application |
|---|---|---|---|---|---|---|---|---|---|
| S03112308825F | 1/2.3″ | 12.5MP | 3.1mm | 102°(D) | < -1% | F2.5 | M12×0.5 | 22.5mm | 4K wide mapping, filming |
| M804812306618 | 1/2.3″/1/2.5″ | 12.3MP | 4.8mm | 78°(D) | <1% | F1.8 | M8.2×0.25 | 5.32mm | Ultra‑compact 4K drones, low light |
| M803012709320F | 1/2.7″ | 8MP | 3.0mm | 101°(D) | < -0.4% | F2.0 | M8×0.35 | 14.69mm | Budget 4K, wide view, IR cut |
| S25023002014F | 1/1.7″ | 8MP | 25mm | 21°(D) | <0.4% | F1.6 | M12×0.5 | 29.80mm | Telephoto 4K, long‑range inspection |
Core Low Distortion Technologies
Aspherical Lens Design
- Reduces spherical aberration effectively
- Minimizes lens count, weight, and size
- One aspherical element replaces multiple spherical lenses
Precision Optical Alignment
- Strict centering & angle control
- Consistent performance across production
- Stable image geometry at all focus distances
Multi‑Layer Anti‑Reflection Coating
- Boosts light transmission
- Reduces flare & ghosting
- Improves contrast in backlight & strong sunlight
IR Cut Filter (IRCF) Integration
- Blocks infrared light for natural color
- Supports day/night dual‑use
- Ensures clear 4K color reproduction
Wide Temperature Adaptation
- Stable optics from -20°C to +70°C
- No defocus or performance drop in extreme environments
- Reliable for year‑round outdoor drone missions
4K Low Distortion Lens vs Standard Lens (Drone Use)
| Parameter | 4K Low Distortion Lens | Standard Wide‑Angle Lens | Impact for Drones |
|---|---|---|---|
| Distortion | <1% | 5–20% | Straight lines; no mapping distortion |
| Geometry Accuracy | High (measurable) | Low (non-measurable) | Ideal for surveying & 3D reconstruction |
| Image Stitching | Seamless & easy | Difficult with visible seams | Higher mapping efficiency |
| Edge Sharpness | Uniform | Edge softness | Better 4K wide‑angle clarity |
| Post‑Processing | Little correction | Heavy correction | Saves time & retains detail |
| Weight & Size | Compact & light | Similar/larger | Longer flight & stable gimbal |
FAQs
Q1: How to choose the right 4K low distortion lens for my drone?
A: Match the lens to your drone’s sensor size first. Choose wide FOV (80°–130°) for mapping, telephoto (25mm+) for long-range inspection, and compact lenses for mini drones. Prioritize distortion <1% and aperture F1.6–F2.8 for low-light use.
Q2: Can these lenses be used on all drones?
A: No. Compatibility depends on mount type (M12×0.5, M8×0.35, etc.) and TTL length. TOWIN lenses support various compact interfaces, fitting most professional, industrial and consumer drones.
Q3: What’s the difference between TV and optical distortion?
A: TV distortion is visible line bending (critical for mapping), while optical distortion is inherent aberration corrected by lens structures. TOWIN lenses have TV distortion <1% for high accuracy.
Q4: Do these lenses need special maintenance?
A: Minimal maintenance. Keep the lens clean with a microfiber cloth; avoid impact and corrosive substances. Built-in UV filters and wide temperature adaptation (-40°C to +85°C) ensure durability.
Q5: Why is TTL length important?
A: TTL affects payload balance. Shorter TTL reduces weight/size, avoiding gimbal overload and extending flight time (e.g., M804812306618 has a 5.32mm ultra-short TTL).
Q6: Do they support night/low-light imaging?
A: Yes. Most integrate IRCF and support IR (650nm/850nm/940nm), with auto ICR switch for day/night dual mode, suitable for security and inspection missions.
Conclusion
4K low distortion lenses are essential for professional drone use, offering ultra-low distortion (<1%), compact design and robust adaptability—outperforming standard wide-angle lenses in accuracy and usability. TOWIN’s lineup caters to diverse needs, from mapping and cinematography to long-range inspection and consumer use.
Focused on core parameters like sensor compatibility and TTL length, these lenses ensure seamless stitching, minimal post-processing and stable drone performance. As drone technology advances, they will remain key to high-precision aerial imaging, helping users unlock their equipment’s full potential.
