If your camera takes blurry photos, or your security camera’s recordings become unclear, how can you revive it? The most effective method, in my opinion, isn’t to replace the camera or security camera, but rather to upgrade the lens. Often, the difference in camera and security camera performance lies in that seemingly insignificant little lens.

Your camera isn’t capturing clear details, and your security camera’s recordings are so blurry you can’t see the key images? I think you don’t need to rush into replacing the entire device. Often, the difference in camera and security camera performance lies in that seemingly insignificant little lens.

Instead of spending a considerable sum on a new camera, it’s better to focus on upgrading the core component: a high-quality lens can revive an old device and easily restore clear image quality. Most cameras and security cameras on the market use the M12 Lenses—it’s compact, widely adaptable, and offers different specifications to precisely match your device’s needs, making it a cost-effective choice for improving image quality.

So, with a wide variety of M12 lenses available, which one is worth buying? The key is to choose based on your equipment type and usage scenario.

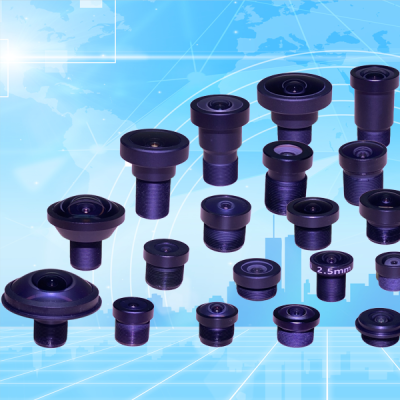

M12 Lenses Introduction

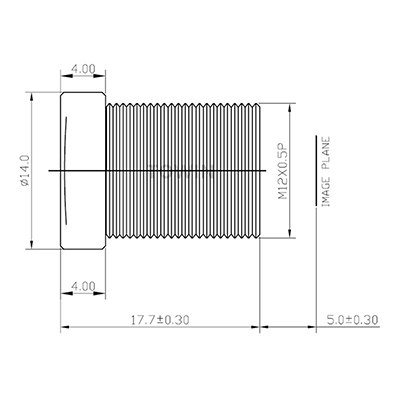

M12 lenses are relatively small camera lenses that use a standard M12×0.5mm threaded interface (12mm diameter, 0.5mm pitch). They are also known as S-Mount lenses or Micro Lenses.

Basic Characteristics

• Name Origin: “M12” indicates the thread specification is M12×0.5, a metric thread standard.
• Physical Dimensions: 12mm diameter, compact size (generally < 18.5mm total length), lightweight.
• Mounting Method: Can be directly screwed into the M12 interface of a PCB (printed circuit board) camera, hence also called a “board lens”.
• Focusing Method: No fixed flange focal length; focusing is achieved by adjusting the thread insertion depth, then locking with a fixing screw.

Optical Lens Suppliers

Comparison with Other Lens Interfaces

Analysis of 5 M12 Lenses with Different Features

1. Low Distortion Lens

• Key Highlights: Extremely low distortion (almost no distortion), accurate image quality, and clear details.
• Key Parameters: Focal length 2mm-50mm, resolution 5MP-16MP, field of view 10°-120°
• Suitable Scenarios: Industrial inspection, license plate/face recognition, medical equipment
• Advantages: Image closely matches the actual object, no post-processing required; Limitations: Slightly higher price.

Low distortion 5-Megapixel lens

2. Automotive Lens

• Key Highlights: Resistant to high and low temperatures (-40°C to +85°C), shockproof, waterproof and dustproof.
• Key Parameters: Focal length 2.95mm-6mm (wide-angle), resolution 5MP-8MP, field of view… 100°-132°
• Applicable Scenarios: Vehicle monitoring, panoramic parking, driver assistance systems
• Advantages: Adaptable to extreme driving environments; Limitations: More expensive than ordinary lenses, higher installation requirements

12MP Waterproof IP67 Automotive lens

3. CCTV Lens

• Core Highlights: Multiple focal length options, high cost-performance ratio, supports day/night switching (infrared enhancement)
• Key Parameters: Focal length 2.8mm-50mm, resolution 2MP-5MP, field of view 20°-110°
• Applicable Scenarios: Shops, residential areas, roads, smart home monitoring
• Advantages: Affordable and easy to use, simple installation; Limitations: Image quality is generally lower in low light environments

M12 CCTV lens 3-Megapixel IR corrected

4. Fisheye Lens

• Core Highlights: Ultra-wide angle (180°-235°), single lens covers the entire panorama
• Key Parameters: Focal length 0.98mm-2.2mm, resolution… 3MP-16MP, fisheye distortion effect
• Suitable scenarios: large shopping malls, parking lots, drone panoramic shooting
• Advantages: no blind spots, reduces the number of cameras; Limitations: image edge distortion, not suitable for accurate recognition

4-Megapixel F2.4 M12 mount fisheye lens

5. Pinhole Lens

• Core highlights: ultra-small size, strong concealment, large depth of field (no need to focus)
• Key parameters: focal length 2.5mm-30mm, resolution 2MP-5MP, field of view 75°-115°
• Suitable scenarios: covert monitoring, detection in confined spaces (such as inside equipment)
• Advantages: good concealment, easy installation; Limitations: average performance in low light environments

Fixed focus M12 Mount pinhole lens

Comparison table of five lenses

Key points for choosing M12 lenses with different focal lengths

Core principle

Shorter focal length → wider field of view (see more); longer focal length → see farther, clearer details (see more accurately)

Quick reference table for common focal lengths

3 key selection points

• 1. First, clarify your needs: For a “full view,” choose a short focal length (2.8-4mm); for a “clear view,” choose a telephoto lens (6-16mm).
• 2. Match the sensor: Lens size ≥ camera sensor size (avoid vignetting).
• 3. Consider the scene: Use a short focal length for close-up shots in small spaces; use a telephoto lens for medium to long distances where detail needs to be recognized.

Quick selection in three steps:

• 1. How much area do you want to cover? → Large area → short focal length, small area → telephoto.
• 2. How far away from the target? → Close (<10 meters) → 2.8-4mm, medium (10-15 meters) → 6mm, far (>15 meters) → 8mm+.
• 3. Do you need to see details clearly? → Yes (faces/license plates) → telephoto, no → short focal length.

8mm-M12-CCTV-lens

Where to Buy M12 Lenses with Peace of Mind

For a worry-free purchase of M12 lenses, we highly recommend professional optical lens supplier TOWIN:

1. Professional and Reliable, Guaranteed Quality

TOWIN is a manufacturer specializing in optical lenses, providing end-to-end services from design to production, not just a middleman. Their M12 lenses strictly adhere to the M12×0.5 standard threaded interface, compatible with most PCB cameras (onboard cameras). Compatibility and workmanship are professionally verified, avoiding the purchase of incompatible or substandard products with poor image quality.

2. Comprehensive Product Range, One-Stop Solution

Whether you need low-distortion lenses, fisheye lenses, automotive lenses, pinhole lenses, wide-angle lenses, or low-sensitivity lenses, TOWIN’s M12 series covers it all, eliminating the need for price comparisons. From general surveillance to industrial inspection and automotive applications, you can find corresponding models.

3. Simple Process, Fast Shipping

The official website has clear categorization, making it easy to find the target lens; after placing an order, it can be quickly filtered and shipped, without long waiting times. Even urgent orders are handled efficiently, consistent with its “EASY-FAST” service philosophy.

4. Supports Consultation and Customization, After-Sales Service Channel

If you have questions about lens parameters or suitable scenarios, you can directly contact customer service through the email address provided on the official website (info@towin-elec.com). A professional team can provide selection advice; for special needs, customized designs are also supported, and any problems encountered during subsequent use can be communicated and resolved promptly.

1/4″ 2.8mm M12 Wide-angle Car Lens

FAQs

Can M12 lenses be used for macro photography?

Most M12 lenses have a minimum focusing distance of ≥50mm. For close-range (<50mm) macro scenarios (such as small part inspection), a “macro-specific M12 lens” should be selected, or the close-focus performance of a regular lens should be tested beforehand. Some low-distortion models (such as OptiTrack’s 4.5mm lens) can be used with difficulty, but image quality may be unstable.

What is the maximum sensor size compatible with M12 lenses?

They typically support small sensors from 1/4 inch to 1/2.3 inch. Some high-end models (such as OptiTrack’s 1/1.8 inch series) support up to 1/1.8 inch (approximately 8.93mm diagonally). Note: If the sensor size exceeds the lens’s image circle, it can cause vignetting or image quality degradation. For example, a 1/2.5 inch sensor is recommended to be paired with an M12 lens with a focal length of 4-6mm.

What are the main parameters of an M12 lens?

The M12 lens uses a small lens mount with an M12×0.5mm metric thread. It has no fixed flange focal length; focusing is achieved by adjusting the thread depth. The back focal length is typically in the range of 1.5-8mm. Suitable for 1/4″ to 1/1.8″ sensors, with common focal lengths of 2-25mm and apertures typically F1.4-F2.8, supporting 1080P to 5MP resolution, widely used in embedded vision, security monitoring, and other fields.

How to correctly install the M12 lens?

After cleaning the lens and sensor, screw the lens into the mount until there is slight resistance. Adjust the focus using a live image (rotate the lens or focus ring), and then secure it with threadlocker. If the lens is loose, wrap 1-2 turns of Teflon tape around the threads before reinstalling.
