Wide Angle Lens – CCL175018MPR

CCL175018MPR is 1.8mm Lightweight Wide Angle Lens for Portability, F2.5 aperture M7x0.35 mount lens, 1/7.5″ 2-megapixel resolution CCTV lens.

1.8mm M7 2MP Wide Angle Miniature Lens

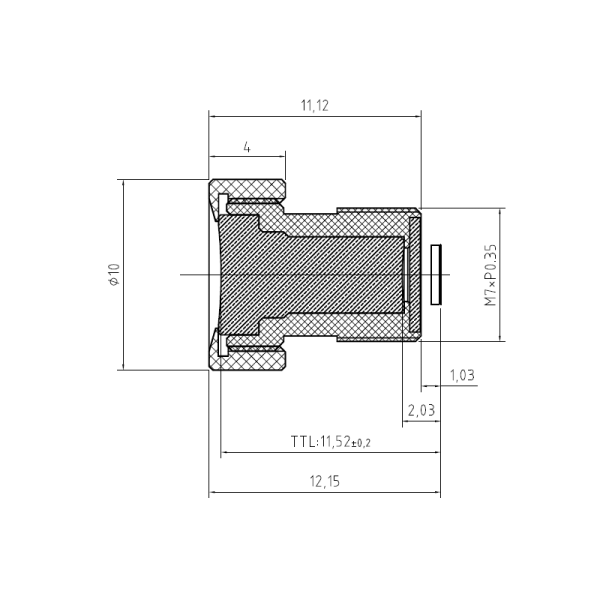

This 1.8mm M7 wide angle miniature lens is designed for compact camera modules requiring a wide field of view, 2MP imaging performance, and a small mechanical footprint. With a 1/7.5″ image format, 80° horizontal FOV, M7×0.35 mount, and 12.15mm TTL, it is suitable for embedded cameras, compact monitoring systems, IoT imaging devices, and other space-constrained applications.

M7 Miniature Wide Angle Lens Highlights at a Glance

• 1.8mm fixed focal length provides an 80° horizontal field of view for compact wide-area imaging.
• 2MP resolution supports image capture for embedded monitoring and general-purpose vision applications.
• M7×0.35 mount provides a compact mechanical interface for miniature camera modules.
• 12.15mm TTL helps accommodate applications where installation space is limited.
• F2.5 fixed aperture provides a practical balance between compact optical design and light collection.

M7 Miniature Wide Angle Lens Applications

Core Application Scenes

The combination of a 1.8mm focal length, 80° horizontal FOV, 2MP resolution, and M7×0.35 mount makes this lens suitable for applications where a compact lens needs to cover a relatively wide scene.

Typical applications include:

• Compact embedded camera modules
• IoT imaging devices
• Small-format monitoring cameras
• Indoor security and observation systems
• Smart home camera modules
• Robotics auxiliary cameras
• Compact vision sensors
• Space-constrained electronic devices
• Short-range wide-area imaging

The wide 95° diagonal field of view allows the lens to capture a relatively broad scene from a short working distance, while the 12.15mm TTL helps simplify integration into compact camera housings.

Designed for compact embedded imaging applications where wide scene coverage and a small M7 lens footprint are important.

For applications requiring a broader selection of miniature optical solutions, explore Towin’s M8/M7/M6/M5/M3.5 Small Mount Lenses.

Compatible Device List

This M7 miniature lens can be integrated into:

• M7-compatible compact camera modules
• Embedded monitoring cameras
• IoT vision devices
• Miniature security cameras
• Smart home imaging equipment
• Compact robotic imaging modules
• Custom OEM camera assemblies
• Small electronic imaging systems

The M7×0.35 mount and fixed-focus configuration make the lens particularly suitable for OEM camera designs where mechanical size and optical integration are key considerations.

For applications requiring a more structured lens selection process, see Towin’s Lens Selection Guide.

Optical Performance and Selection Considerations

The 1.8mm focal length provides a wide field of view of 95° diagonal, 80° horizontal, and 60° vertical on the specified 1/7.5″ image format. This makes the lens useful when the camera needs to observe a relatively large area without increasing the physical size of the imaging module.

However, the specified TV distortion of less than -13.5% should be considered when selecting the lens for applications requiring geometrically accurate imaging. For applications such as measurement, dimensional inspection, or precision machine vision, a lower-distortion optical design may be more appropriate.

The fixed F2.5 aperture also provides a simple optical configuration for compact camera systems. Because the lens uses a manual focus mechanism, the final focus position should be adjusted according to the actual camera module, working distance, and target scene during integration.

For additional information about optical parameters and lens selection, visit the Optical Design section of Towin’s Knowledge Center.

Frequently Asked Questions

Q: What type of lens is the 1.8mm M7 lens?
A: It is a fixed focal length, wide angle miniature lens with an M7×0.35 mount. Its 1.8mm focal length provides a 95° diagonal and 80° horizontal field of view.

Q: What sensor format is this 1.8mm M7 lens designed for?
A: The specified image format is 1/7.5″. The actual imaging performance should be verified with the selected camera sensor and module.

Q: Is this lens suitable for 2MP camera modules?
A: Yes. The lens is specified for 2 Megapixel resolution and is suitable for compact camera modules requiring 2MP imaging performance.

Q: Is this lens a low distortion lens?
A: No. With TV distortion specified at less than -13.5%, it should be treated as a wide angle lens rather than a low distortion lens. Applications requiring accurate geometric reproduction should consider a lower-distortion optical design.

Q: What is the mount specification?
A: The lens uses an M7×0.35 mount, making it suitable for compatible miniature camera modules and compact embedded imaging systems.

Q: Can the focus be adjusted?
A: Yes. The lens uses manual focus, allowing the optical focus to be adjusted during camera module integration.

Q: Is the aperture adjustable?
A: No. The lens uses a fixed F2.5 aperture.

Q: What applications are suitable for this lens?
A: Typical applications include compact monitoring cameras, IoT imaging devices, embedded camera modules, smart home cameras, robotic auxiliary cameras, and other space-constrained imaging systems.
