Wide Angle Lens – CCL16017MPF

CCL16017MPF is 1.6mm Premium wide angle lens with Built-In Filter, 105° F2.4 High-resolution M7X0.35 mount lens, 1/6″ 5-Megapixel CCTV lens.

1.6mm M7 5MP Wide Angle Fisheye Lens

This 1.6mm M7 wide angle lens is a compact 5MP imaging solution for miniature camera modules that require broad scene coverage in a very small optical package. With a 105° diagonal FOV, 88° horizontal FOV, 60° vertical FOV, F2.4 aperture, and M7x0.35 mount, it is well suited to embedded cameras, compact monitoring devices, robotics, and other space-constrained imaging systems.

M7 5MP Wide Angle Lens Core Product Highlights

• 5MP High-Resolution Imaging: Provides higher image detail than standard megapixel miniature lenses for compact camera applications.
• 105° Ultra-Wide Field of View: Delivers 105° diagonal coverage and 88° horizontal coverage for capturing a broader scene with a short 1.6mm focal length.

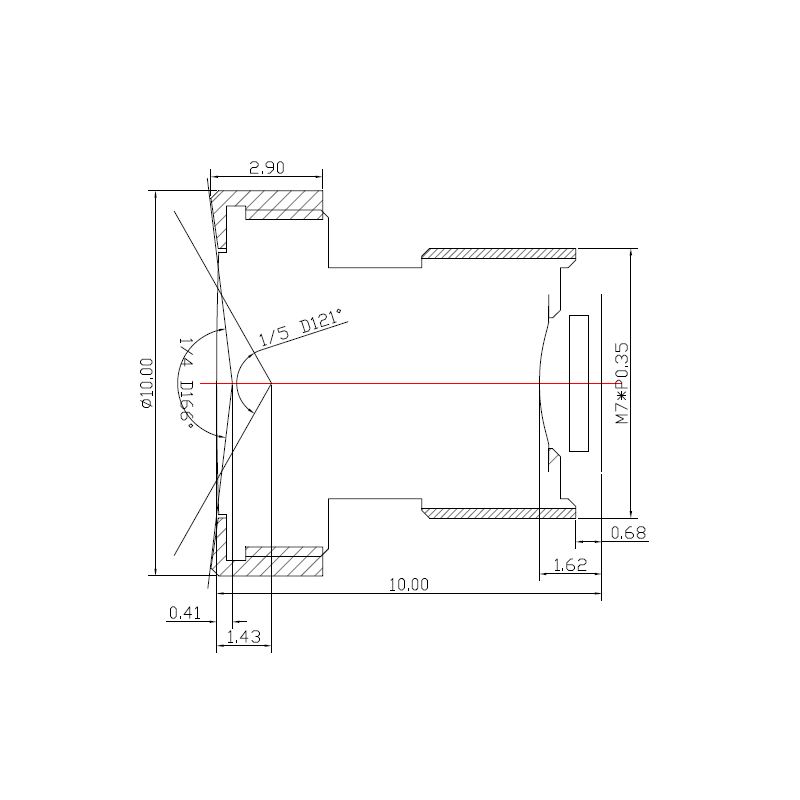

• Compact M7x0.35 Mount: Designed for miniature camera modules and embedded imaging devices where installation space is limited.
• Manual Focus Configuration: Allows the optical focus position to be adjusted during camera assembly to match the required working distance.
• 2G3P + IR Cut Filter Construction: Combines a compact optical structure with an integrated IR cut filter for visible-light imaging applications.

M7 5MP Wide Angle Lens Applications

Core Application Scenes

The combination of a 1.6mm focal length, 105° diagonal field of view, and 5MP resolution makes this lens suitable for miniature imaging systems that need both broad scene coverage and relatively high image detail. Its M7x0.35 mount is particularly useful where a smaller optical interface is preferred over standard M12 configurations.

Designed for miniature wide-angle imaging applications, this lens can be integrated into compact camera modules, embedded vision devices, smart monitoring equipment, robotic cameras, and other small-form-factor imaging systems.

The -41% distortion indicates that this lens uses a strongly wide-angle optical design. This can provide increased scene coverage, but applications requiring accurate geometric measurement should account for distortion during system design or image processing. TOWIN’s Distortion Guide provides additional information about lens distortion and its impact on imaging.

Compatible Device List

• Miniature Camera Modules: The M7x0.35 mount and compact optical configuration are suitable for camera assemblies with strict space limitations.
• Embedded Vision Devices: The 5MP resolution provides additional image detail for compact embedded imaging systems requiring a relatively wide viewing angle.
• Compact Robotic Cameras: The 105° diagonal FOV helps small robotic systems capture more of their surrounding environment without requiring a larger lens assembly.
• Smart Monitoring Devices: The wide-angle design can cover a broader scene from a relatively short installation distance.
• Small Imaging Sensors: The 1/6″ image format is designed for miniature image sensors used in compact camera architectures.

When selecting a miniature lens, the sensor format, mounting thread, focal length, required FOV, working distance, and available installation space should be evaluated together. TOWIN’s M8/M7/M6/M5/M3.5 Small Mount Lenses category provides additional options for miniature camera applications.

For engineers comparing different sensor formats and optical configurations, the Sensor Guide can help determine whether the selected lens is appropriate for the camera sensor. The FOV Calculator can also be used to estimate the relationship between sensor size, focal length, and viewing coverage.

Because this lens uses a fixed focal length and fixed iris, it is most suitable for camera systems with a predefined optical configuration. The manual focus allows the lens to be adjusted during installation, which can be useful when the final working distance varies between different camera assemblies.

For customized optical requirements, TOWIN’s Optical Design resources can help engineers evaluate lens parameters before finalizing an imaging system. For product selection or application-specific requirements, you can also contact TOWIN’s optical team.

Frequently Asked Questions

Q1: What type of lens is this 1.6mm M7 lens?

A: It is a fixed focal length miniature wide-angle lens with an M7x0.35 mount. Its 105° diagonal FOV and -41% distortion give it characteristics suitable for wide-angle and fisheye-style imaging applications.

Q2: What is the field of view of this lens?

A: The lens provides a 105° diagonal FOV, 88° horizontal FOV, and 60° vertical FOV on the specified 1/6″ image format.

Q3: What sensor size is this lens designed for?

A: The specified image format is 1/6″. The camera sensor should be checked against this optical format during lens selection to ensure the required image coverage.

Q4: Is this a 5MP lens?

A: Yes. This lens delivers 5MP optical resolution, suiting compact camera systems that demand high image detail alongside a wide field of view.

Q5: What does the -41% distortion specification mean?

A: The -41% value indicates significant barrel-type wide-angle distortion. This optical characteristic provides a broad field of view. Factor this in when image geometry or measurement accuracy matters.

Q6: Does this lens support manual focusing?

A: Yes. The focus is manual, allowing the optical focus position to be adjusted during assembly according to the required working distance. The specified minimum object distance is 0.2m.

Q7: What mount does this lens use?

A: This lens uses an M7x0.35 mount. This lens fits miniature camera modules and equipment that use the matching M7 threaded interface.

Q8: What is the function of the IR Cut Filter?

A: The 2G3P + IR Cut Filter construction includes an IR cut filter for visible-light imaging applications. It helps reduce unwanted infrared wavelengths reaching the image sensor under suitable lighting conditions.
