CCL16016MPF

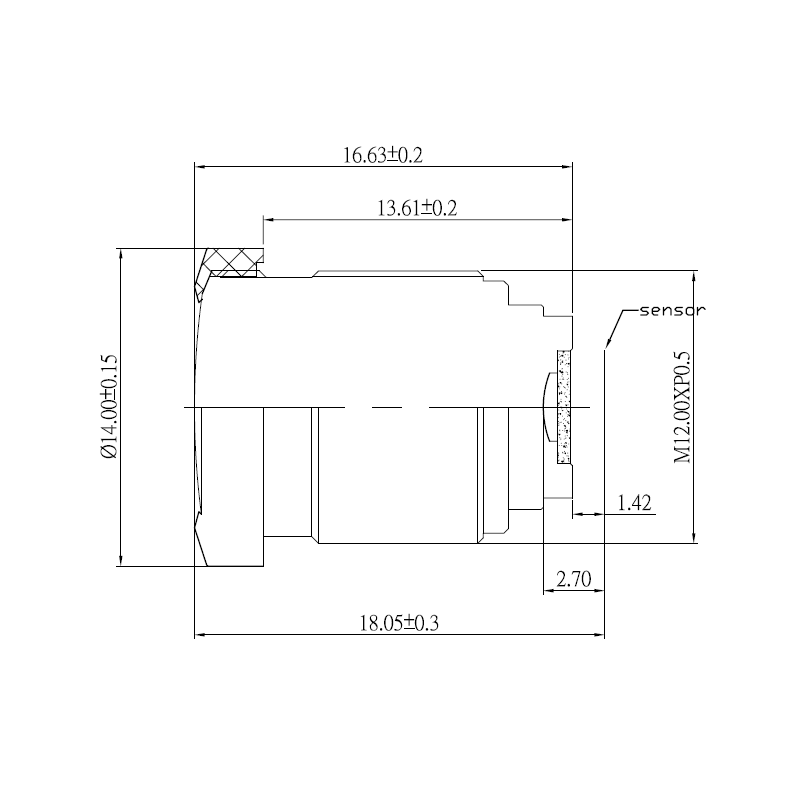

1.6mm Ultra-wide-angle lens, F2.5 M12/S-Mount Lens , 1/6″ Megapixel CCTV lens.
CCL16016MPF is 1.6mm Ultra-wide-angle lens with Built-In Filter, fixed iris F2.5 S-Mount Lens with M12 Thread, 1/6″ Megapixel CCTV lens.
| IMAGE FORMAT | 1/6″ |
| FOCAL LENGTH | 1.6mm |
| F.O.V. | 160°(D) |
| 120°(H) | |
| 90°(V) | |
| RESOLUTION | Megapixel |
| TV DISTORTION | <18% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 18mm |
| M.B.F.L. | 1.42mm |
| CONSTRUCTION | 4E+IR |
