Wide Angle Lens – S02511815028F

2.5mm High-Performance Wide Angle Lens for DSLR Cameras 8 Megapixel M12/S-Mount High-Resolution lens security/surveillance lens.

2.5mm Wide Angle M12 Fisheye Lens

This 2.5mm Wide Angle M12 fisheye lens delivers an exceptionally wide 176° diagonal field of view while supporting up to 8MP imaging on a 1/1.8″ image format. Its ultra-wide optical design is developed for camera systems that need maximum scene coverage from a compact lens module.

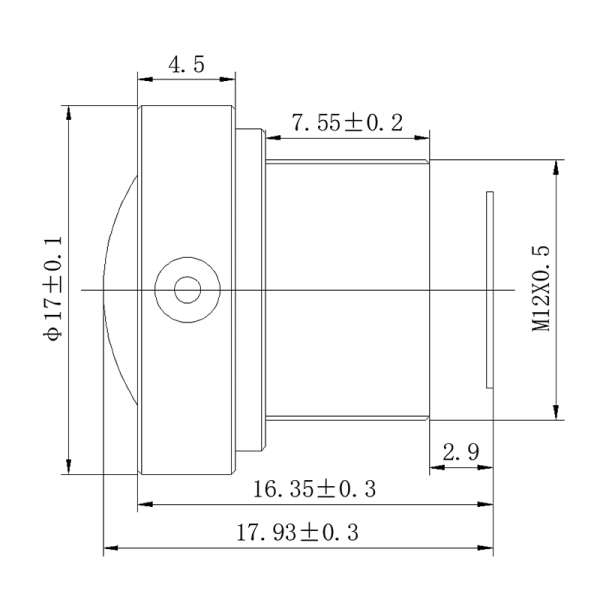

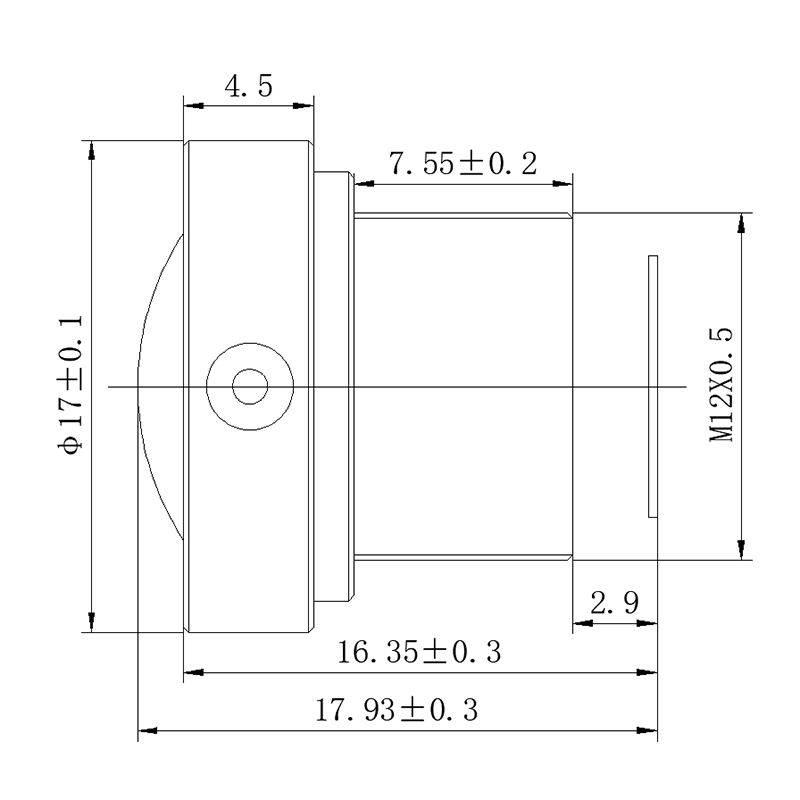

With an M12×0.5 mount, F2.8 fixed aperture, 0.2m minimum object distance, and compact 4G+3ASPG+IRCF construction, this wide angle lens is suitable for panoramic surveillance, embedded vision, industrial monitoring, and selected automotive vision applications.

Wide Angle Lens Core Highlights

• 176° Ultra-Wide FOV: Captures an exceptionally broad scene with a 2.5mm focal length.
• 8MP High-Resolution Imaging: Supports detailed image capture for advanced wide-area vision systems.
• 1/1.8″ Image Format: Designed for larger image sensors requiring extensive optical coverage.
• Compact M12 Mount: M12×0.5 interface simplifies integration into embedded camera modules.
• Fisheye Optical Design: Prioritizes maximum scene coverage for panoramic and surround-view imaging.

Wide Angle Lens Applications

Core Application Scenes

This 8MP M12 fisheye lens is designed for vision applications where extremely wide scene coverage is a primary requirement. Its 176° diagonal FOV enables a single camera to observe a very large area, reducing blind spots in applications such as panoramic surveillance, compact embedded vision, and near-field environmental monitoring.

For panoramic CCTV, the lens can be integrated into compact security cameras positioned in rooms, retail environments, entrances, lobbies, and other locations where broad coverage from a single camera is preferred. Its 153° horizontal FOV is particularly useful when the camera needs to monitor a wide horizontal area without relying on multiple imaging modules.

In industrial environments, the lens can be used for wide-area machine and equipment observation, especially where the camera is mounted close to the monitored zone. The 0.2m M.O.D. provides practical flexibility for short-range imaging, while the 8MP resolution helps preserve useful image detail across the captured scene.

The ultra-wide optical configuration can also support selected automotive surround-view and near-field vision systems, provided the lens distortion characteristics are properly compensated by the camera’s image-processing system. Unlike a low-distortion industrial lens, this product is intentionally optimized for maximum coverage rather than geometric accuracy.

Designed for panoramic surveillance, ultra-wide embedded vision, and short-range industrial monitoring applications.

Compatible Device List

• Panoramic CCTV Cameras: Suitable for compact surveillance cameras requiring extremely broad horizontal and diagonal scene coverage.
• Embedded AI Vision Cameras: Compatible with compact camera modules used for environmental awareness, occupancy monitoring, and wide-area AI imaging.
• Industrial Monitoring Cameras: Useful for monitoring equipment, workspaces, machine surroundings, and confined areas from short installation distances.
• Automotive Surround-View Modules: Can be considered for selected near-field automotive camera configurations where ultra-wide coverage is prioritized and digital distortion correction is available.
• Panoramic Imaging Devices: Suitable for compact panoramic and immersive imaging systems requiring a very large field of view.
• Robotic Vision Modules: The compact M12 interface can support integration into mobile robots and autonomous platforms requiring broad environmental awareness.
• Custom Camera Systems: TOWIN can provide OEM/ODM optical and mechanical customization according to specific sensor, housing, and application requirements.

For projects where extremely wide coverage is required, the M12 Lenses product range provides additional compact lens options. Engineers can also use the FOV Calculator to evaluate the relationship between sensor size, focal length, and required viewing coverage.

Because this lens has intentionally high fisheye distortion, designers should also review the Distortion Guide when determining whether the optical characteristics match their image-processing requirements.

Frequently Asked Questions

Q: What type of lens is this product?
A: This is a 2.5mm fixed focal M12 fisheye lens designed to provide an exceptionally wide field of view for panoramic and wide-area imaging applications.

Q: What is the field of view of this M12 fisheye lens?
A: On a 1/1.8″ image format, the lens provides a 176° diagonal FOV, 153° horizontal FOV, and 88° vertical FOV.

Q: Does this lens support 8MP imaging?
A: Yes. The lens is specified for 8MP resolution and is designed around a 1/1.8″ image format with a maximum image circle of approximately Φ9.1mm.

Q: Is this a low-distortion lens?
A: No. With distortion below -89%, this lens is designed as a fisheye/ultra-wide optical solution where maximum field of view is more important than geometric accuracy.

Q: What applications are suitable for this fisheye lens?
A: It is suitable for panoramic CCTV, embedded AI vision, industrial monitoring, robotic environmental awareness, panoramic imaging, and selected automotive surround-view applications.

Q: What is the minimum object distance?
A: The minimum object distance is 0.2m, making the lens suitable for many short-range wide-area imaging applications.

Q: What mount does this lens use?
A: The lens uses an M12×0.5 mount, making it compatible with camera modules and housings designed for the standard M12 interface.

Q: Can TOWIN customize this M12 fisheye lens?
A: TOWIN supports OEM/ODM optical and mechanical customization for specific camera projects, including application-specific optical requirements and mechanical integration.

Related Optical Selection Resources

Selecting an ultra-wide lens requires more than comparing focal length alone. Sensor format, image circle, field of view, distortion, working distance, and mechanical dimensions should all be considered during optical selection.

For engineers developing an embedded or compact camera, the Lens Selection Guide provides additional guidance on matching lens characteristics with system requirements. The Sensor Guide can also help evaluate sensor and lens compatibility.

For applications involving robotics and industrial automation, this lens can be considered alongside TOWIN’s Robotics Vision and Machine Vision optical solutions. For project-specific requirements or OEM/ODM development, customers can Contact TOWIN.
