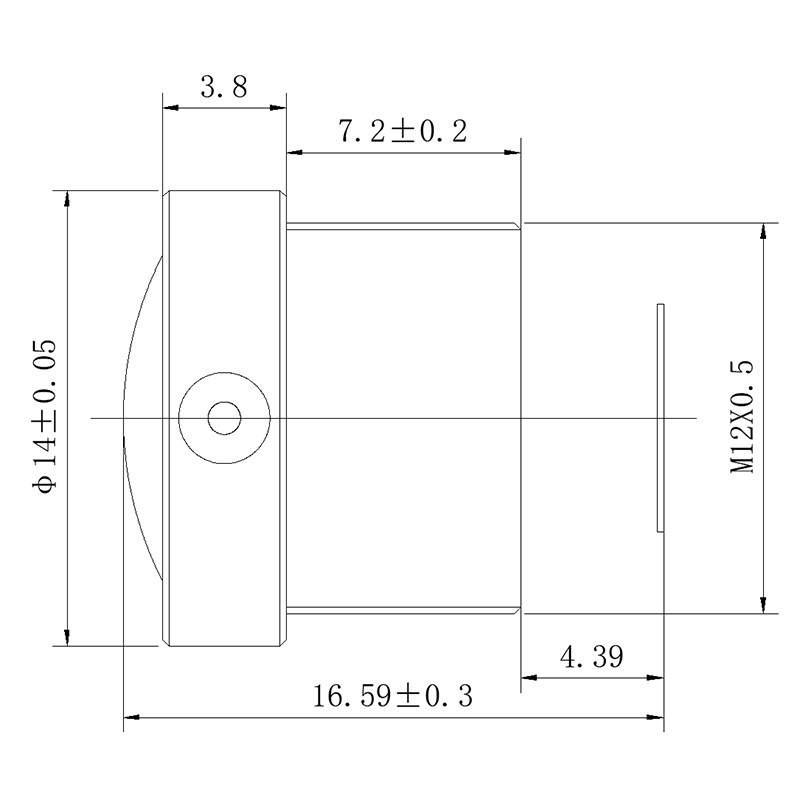

1/2.8″ 2.4mm Wide-angle CCTV HD lens 165° 5-Megapixel F2.2 M12/S-mount lens
S02412814022F – 1/2.8″ 2.4mm Wide-angle CCTV lens with Built-In Filter, 165°, 5-Megapixel resolution, F2.2 aperture, M12/S-mount lens.
| IMAGE FORMAT | Max Φ6.9mm |
| FOCAL LENGTH | 2.4mm |
| F.O.V. (1/2.8″, IMX715) | 165°(D) |
| 139°(H) | |
| 75°(V) | |
| RESOLUTION | 5 MegaPixel |
| DISTORTION | <-19% |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 16.59mm |
| STRUCTURE | 6G+IRCF |
