S06012505812

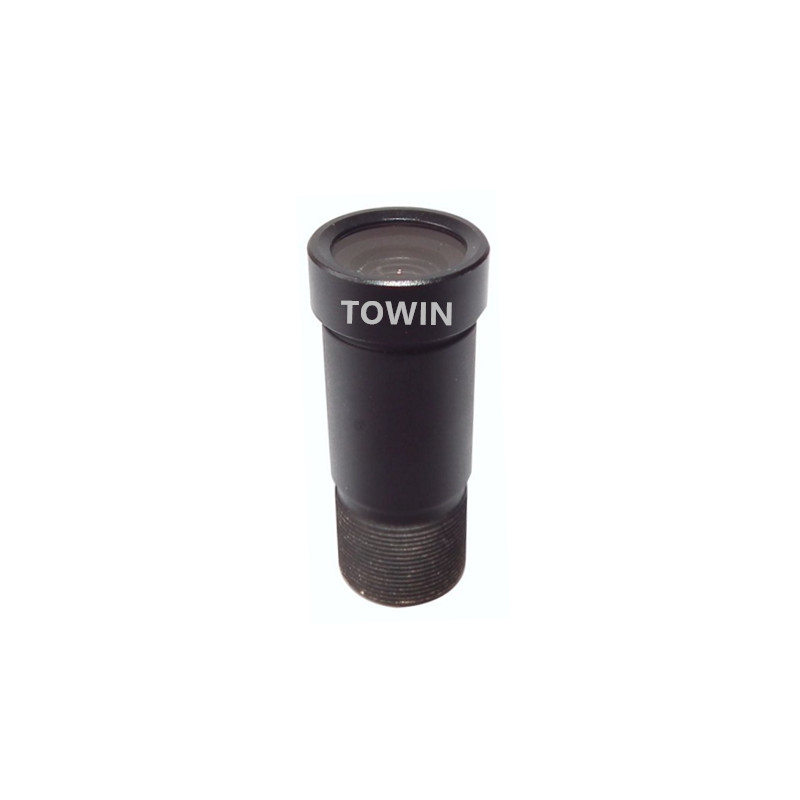

1/2.5″ 6mm F1.2 low light sensitive, 3Megapiel M12 IR corrected CCTV lens.
S06012505812 is a F1.2 low light M12 IR corrected CCTV lens. It is a 6mm HD 3 Megapixel S-mount board lens for 1/2.5″ IMX317, MT9P031. It has a large aperture for IP security surveillance camera.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 6mm |
| F.O.V. | 75° |
| 58° | |
| 42° | |
| RESOLUTION | 3 MP |
| DISTORTION | 20% |
| APERTURE | F1.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 36.8mm |
| IR | Corrected |
S06012505812 6mm low light M12 S-mount IR corrected CCTV lens
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
