Low Distortion Lens – S16011703016F67

S16011703016F67 is Low distortion 8-Megapixel CCTV lens with Built-In IR Filter, IP67 waterproof, F1.6 35° M16-mount for surveillance or industrial applications.

16mm M16 8MP Low Distortion Lens

This 16mm M16 low distortion lens is designed for 1/1.7-inch 8MP sensors such as the AR0821, delivering a controlled 35° diagonal field of view with less than -2% distortion. Its F1.6 aperture, compact 8G+IRCF optical structure, and IP67 protection make it suitable for high-resolution automotive, industrial, and embedded vision systems requiring accurate image geometry.

M16 Low Distortion Lens Core Highlights

• 16mm fixed focal length: Provides controlled scene coverage for applications requiring a narrower field of view.
• High-resolution 8MP imaging: Designed for 1/1.7-inch AR0821 sensors and detailed image capture.
• Ultra-low distortion: Less than -2% distortion helps preserve object geometry and image proportions.
• F1.6 large aperture: Provides strong light-gathering capability for variable lighting conditions.
• IP67 protection: Supports automotive and outdoor vision systems exposed to dust and water.

16mm M16 Low Distortion Lens Applications

Core Application Scenes

The combination of a 16mm focal length, 35° diagonal FOV, 8MP resolution, and distortion below -2% makes this lens particularly suitable for applications where controlled viewing coverage and accurate image geometry are more important than an extremely wide field of view.

Typical applications include:

• Automotive forward and long-range vision: The 16mm focal length provides a more concentrated viewing area than short-focal-length wide-angle lenses.
• Vehicle-mounted recognition: Low distortion helps maintain consistent object geometry for image analysis and recognition.
• Industrial inspection: The < -2% distortion specification supports applications where geometric accuracy is important.
• Machine vision positioning: A controlled 30° horizontal FOV can help isolate specific inspection areas while maintaining 8MP image detail.
• Outdoor intelligent imaging: IP67 protection allows integration into camera systems exposed to dust and water.
• Object recognition and measurement: Low optical distortion helps reduce geometric deformation in captured images.

Designed for automotive vision, industrial inspection, machine vision positioning, and high-resolution outdoor imaging applications.

For applications requiring compact optical integration, TOWIN’s M16/Mount Lens Solutions can be considered alongside other special-mount options. For low-distortion requirements, see the Low Distortion Lenses category.

Compatible Device List

• 1/1.7-inch AR0821 camera modules — matched to the specified 8MP image sensor.
• Automotive vision cameras — IP67 protection supports vehicle-mounted environments.
• Industrial inspection cameras — low distortion helps maintain image geometry during inspection.
• Machine vision camera modules — 16mm focal length provides controlled viewing coverage.
• Outdoor intelligent cameras — IP67 construction provides protection against dust and water.
• Embedded recognition systems — 8MP resolution supports detailed object and scene analysis.

Optical Design and Imaging Performance

The lens uses an 8G+IRCF optical structure. IRCF refers to an IR Cut Filter, which helps block unwanted infrared wavelengths during visible-light imaging. It should not be interpreted as an IR-corrected optical design.

The defining optical characteristic of this model is its less-than-2% distortion. Such a low distortion level helps maintain a more accurate relationship between real-world objects and their captured image positions. This can be valuable in machine vision, positioning, measurement, recognition, and automotive imaging applications.

The 16mm focal length provides a substantially narrower field of view than typical wide-angle M12 lenses. With the AR0821 sensor, the lens delivers approximately 35° diagonal, 30° horizontal, and 17° vertical FOV, allowing the camera system to focus on a more defined scene area.

The F1.6 fixed aperture provides strong light-gathering capability while maintaining a fixed optical configuration. This is useful for embedded vision systems where consistent optical behavior is preferred.

Low Distortion Performance

With distortion specified below -2%, this lens is well suited to applications where excessive barrel or pincushion distortion could affect image analysis.

Potential use cases include:

• Object dimension analysis
• Visual positioning
• Industrial inspection
• Target recognition
• Automotive object detection
• Machine vision measurement
• High-resolution scene analysis

Compared with strongly wide-angle or fisheye optics, the controlled FOV and low distortion make this lens more suitable when preserving the original geometry of the scene is a priority.

Environmental Protection

The lens features an IP67 waterproof rating, providing protection suitable for outdoor and automotive camera installations where dust and water exposure may occur.

This makes it appropriate for:

• Vehicle-mounted cameras
• Outdoor industrial cameras
• Smart transportation equipment
• Industrial inspection systems
• Embedded outdoor vision modules

The complete camera assembly should still be evaluated as a system because the final environmental protection level also depends on the housing, connector, cable, sealing, and installation structure.

Frequently Asked Questions

Q1: What sensor is this 16mm lens designed for?
A: It is designed for a 1/1.7-inch AR0821 sensor with 8MP resolution.

Q2: What is the field of view of the 16mm lens?
A: With the AR0821 sensor, the lens provides approximately 35° diagonal, 30° horizontal, and 17° vertical FOV.

Q3: Is this a low distortion lens?
A: Yes. The specified distortion is below -2%, making it suitable for applications requiring accurate image geometry.

Q4: Is this lens a wide-angle lens?
A: No. With a 35° diagonal FOV, the 16mm lens provides controlled, relatively narrow scene coverage rather than wide-angle coverage.

Q5: What are the main advantages of the 16mm focal length?
A: The 16mm focal length provides a more concentrated field of view, which can be useful for target recognition, controlled-area inspection, and automotive vision applications where excessive scene width is undesirable.

Q6: What does the IRCF in the optical structure mean?
A: IRCF means IR Cut Filter. It blocks unwanted infrared wavelengths in visible-light imaging. It does not mean the lens is optically IR corrected.

Q7: Is the lens suitable for automotive applications?
A: Yes. The IP67 waterproof construction makes it suitable for automotive and outdoor vision systems requiring protection against dust and water.

Q8: What mount does this lens use?

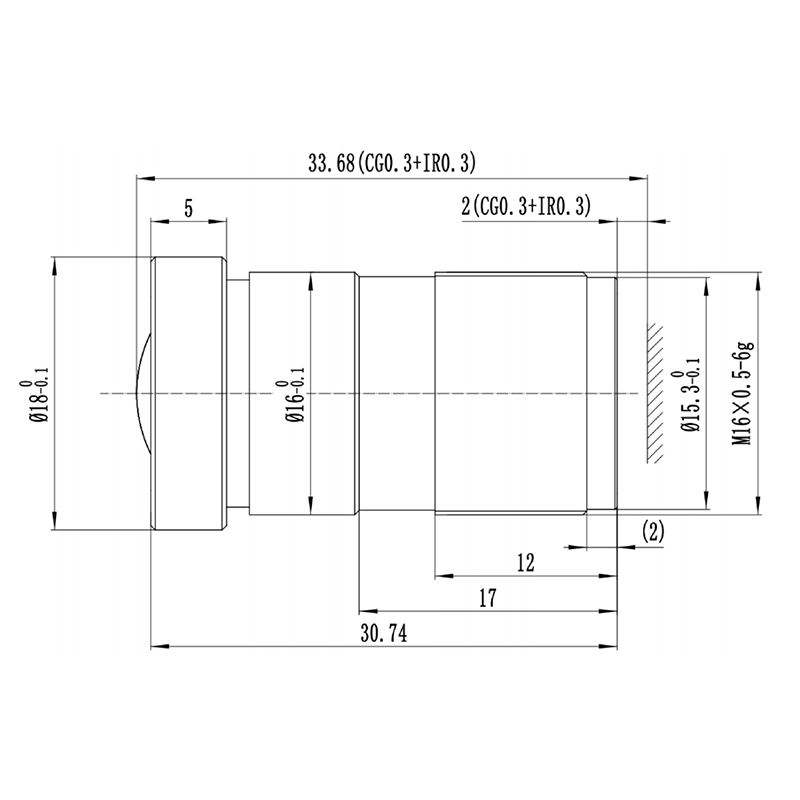

A: The lens uses an M16X0.5 mount, so the camera housing and mechanical interface should be designed to accommodate this mounting specification.

Recommended Related Resources

When matching the lens to an 8MP image sensor, TOWIN’s Sensor Guide provides useful information about sensor formats and optical compatibility.

For selecting focal length based on sensor size, working distance, and required field of view, see the Lens Selection Guide.

For applications where image geometry is important, the Distortion Guide provides additional information about lens distortion and its impact on imaging.

You can also use the FOV Calculator to evaluate focal length and field-of-view requirements.

For customized optical requirements, sensor matching, mechanical dimensions, or environmental protection, contact TOWIN Lens.
