Low Distortion Lens – S08813002835

S08813002835 is Low distortion lens for machine vision Megapixel CCTV lens, 1/3″ M12 mount lens, 8.8mm focal length, 35° diagonal F.O.V., F3.5 aperture.

8.8mm M12 Low Distortion Lens

This 8.8mm Megapixel M12 fixed focal lens is designed for compact camera modules that require a focused field of view and stable optical performance. With a 1/3″ image format, 8.8mm focal length, and 35° diagonal FOV, it is suitable for applications where the camera needs to concentrate on a defined target area rather than capture an extremely wide scene.

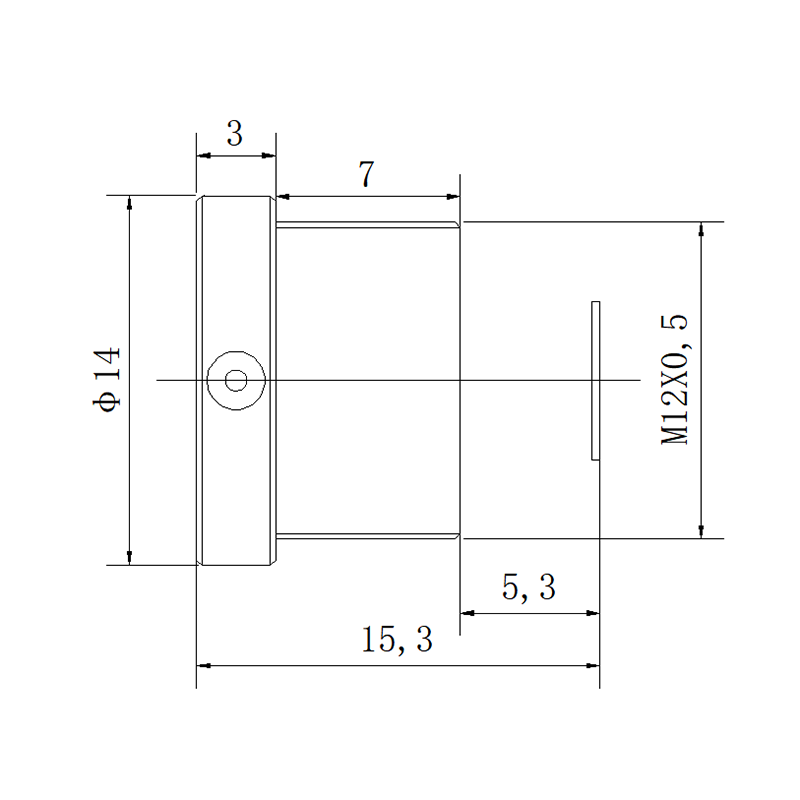

Featuring an M12×0.5 mount, F3.5 aperture, 0.1m minimum object distance, and compact 11.5mm TTL, this lens provides a practical optical configuration for embedded cameras, compact monitoring devices, and space-constrained vision modules.

Product Highlights at a Glance

• Megapixel imaging supports detailed image capture for compact camera systems.
• 8.8mm fixed focal length provides focused coverage for defined target areas.
• 35° diagonal FOV is suitable for applications requiring a controlled viewing angle.
• M12×0.5 mount enables compact and straightforward camera module integration.
• 11.5mm TTL supports installation in space-constrained optical assemblies.

8.8mm M12 Low Distortion Lens Applications

Core Application Scenes

This 8.8mm M12 fixed focal lens is designed for camera systems that need a concentrated field of view rather than broad-area coverage. Its 28° horizontal FOV and 21° vertical FOV make it suitable for imaging a defined region where the camera is positioned at a relatively controlled distance from the target.

The lens can be used in compact monitoring cameras, embedded vision modules, smart equipment cameras, access monitoring devices, and localized visual sensing systems. Compared with shorter focal length M12 lenses, the 8.8mm focal length narrows the viewing area and allows the camera system to focus more closely on a specific subject or zone.

The 0.1 m minimum object distance suits near‑field installations, where operators place the camera relatively close to the monitored object. This can include equipment-mounted cameras, compact access-control devices, small inspection modules, and other embedded imaging products.

Its 11.5mm TTL and M12×0.5 interface are especially useful for OEM camera designs where the optical assembly must fit inside a compact enclosure. The F3.5 aperture delivers a fixed optical configuration. Users pair it with controlled illumination to maintain consistent imaging conditions.

Engineers selecting an appropriate focal length must assess the relationship between sensor size, working distance, target dimensions, and FOV before finalizing the camera design. Towin’s Lens Selection Guide provides additional guidance for this process.

Compatible Device List

• Compact Monitoring Cameras: Suitable for fixed-position cameras that need focused coverage of a defined area.
• Embedded Vision Modules: The compact M12×0.5 mount and 11.5mm TTL support integration into small camera assemblies.
• Smart Access Devices: The controlled viewing angle can be used to monitor specific entry points, equipment interfaces, or access areas.
• Equipment-Mounted Cameras: The 8.8mm focal length provides concentrated coverage when the camera is installed close to a machine or device.
• Compact Recognition Systems: Megapixel imaging supports image capture for basic visual recognition and monitoring tasks.
• OEM/ODM Camera Modules: The compact optical structure can be incorporated into customized camera designs requiring specific mechanical dimensions.

For engineers developing compact camera modules, Towin’s M12 lens solutions provide additional optical configurations for different focal lengths and sensor formats.

If you need to compare different focal lengths for a specific sensor and working distance, the Focal Length Calculator can help estimate the required focal length. The FOV Calculator can then be used to evaluate the resulting scene coverage.

For customized mechanical dimensions, optical specifications, or OEM/ODM requirements, engineers can contact Towin for further product development support.

Designed for compact embedded cameras, focused monitoring, and localized vision applications requiring a stable fixed focal length.

Frequently Asked Questions

Q: What type of lens is this 8.8mm M12 lens?
A: It is an 8.8mm fixed focal M12 lens designed for 1/3″ image format and Megapixel imaging applications. Its relatively narrow field of view makes it suitable for focused target coverage.

Q: What sensor format does this lens support?
A: The specified image format is 1/3″. The lens is designed around this sensor format for the stated field-of-view performance.

Q: What is the field of view of the 8.8mm lens?
A: The lens provides a 35° diagonal FOV, 28° horizontal FOV, and 21° vertical FOV.

Q: Is this 8.8mm lens a wide-angle lens?
A: No. With a 28° horizontal FOV and 21° vertical FOV, this lens is designed for focused scene coverage rather than wide-angle imaging.

Q: What is the distortion specification of this lens?
A: The specified distortion is below 3.9%. This represents the stated geometric distortion performance of the optical design.

Q: What is the minimum object distance?
A: The minimum object distance is 0.1m, allowing the lens to image relatively close targets when correctly focused.

Q: Why is the M12×0.5 mount suitable for compact cameras?
A: The M12×0.5 threaded interface is compact and commonly used in embedded camera modules, making it suitable for space-constrained imaging equipment.

Q: How do I select the right focal length for my camera?
A: Focal length should be selected according to sensor size, working distance, target dimensions, and required field of view. Towin’s Focal Length Calculator can help estimate the required focal length for a specific setup.
