Low Distortion Lens – S08012504028

S08012504028 is 1/2.5″ 8mm low distortion lens for Drones, IR Corrected M12 mount lens, fixed iris F2.8, high resolution 5 Megapixel CCTV lens.

8mm 5MP IR Corrected M12 Low Distortion Lens

This 8mm 5MP IR corrected M12 low distortion lens is designed for compact camera systems that require detailed imaging, controlled optical distortion, and consistent performance across visible and near-infrared imaging conditions. With a 1/2.5″ image format, 50° diagonal FOV, and 5MP resolution, it provides a focused viewing perspective for industrial, machine vision, security, and embedded imaging applications.

The lens combines an 8mm fixed focal length, <-7% distortion, F2.8 aperture, 0.1m minimum object distance, and M12×0.5 mount in a compact optical configuration. Its IR corrected design makes it particularly useful for camera systems that switch between day and night imaging or use near-infrared illumination.

Compared with ultra-wide M12 lenses, the 8mm focal length provides a more concentrated field of view, making it suitable for applications where the camera needs to focus on a defined target area. The 0.1m MOD also supports close-range imaging where the lens must be positioned near the subject.

Explore the TOWIN M12 Lenses portfolio for additional compact fixed focal optical solutions.

M12 Low Distortion Lens Core Highlights

• IR Corrected Optical Design — Designed to maintain more consistent focus performance when imaging with visible light and near-infrared illumination.
• 5MP Resolution — Provides detailed imaging for industrial inspection, security, embedded vision, and recognition applications.
• Low-Distortion Performance — TV distortion below -7% helps maintain controlled image geometry for targeted imaging.
• 0.1m Minimum Object Distance — Supports close-range imaging of components, equipment, products, and other nearby targets.
• Compact M12×0.5 Mount — Enables integration into small camera modules and space-constrained optical systems.

M12 Low Distortion Lens Applications

Core Application Scenes

This 8mm IR corrected M12 lens is designed for imaging systems where the camera must capture a defined target area while maintaining stable optical performance under different illumination conditions.

The IR corrected design is particularly useful in day/night security and near-infrared imaging systems. When a camera uses an IR illuminator at night, the effective focus position of different wavelengths can vary in conventional optical systems. An IR corrected lens is designed to reduce this focus shift and help maintain usable image sharpness when the imaging system transitions between visible and near-infrared light.

For industrial machine vision, the 8mm focal length provides a relatively focused field of view that is useful for observing a specific inspection region rather than an entire large scene. The 5MP resolution can support detailed detection and recognition tasks, while the <-7% distortion specification provides controlled image geometry.

The 0.1m minimum object distance makes this lens especially useful for close-range inspection. It can be positioned near components, product surfaces, machine interfaces, labels, connectors, and other small targets where installation space is limited.

For smart security, the combination of 5MP imaging, moderate FOV, low distortion, and IR correction makes the lens suitable for compact cameras that need reliable daytime and nighttime imaging.

Designed for close-range machine vision, day/night security, and IR-assisted industrial imaging applications.

Low Distortion Imaging

The lens provides a specified distortion of less than -7%, giving it a more controlled optical profile than extreme wide-angle designs.

This can be useful for industrial imaging applications where excessive geometric deformation may affect object recognition, positioning, inspection, or image analysis.

The 40° horizontal FOV is particularly suitable for targeted imaging. Rather than maximizing the amount of environment captured by the camera, the lens provides a more concentrated view of the intended subject.

For applications where distortion must be carefully evaluated against FOV and focal length, refer to TOWIN’s Distortion Guide.

Optical Integration

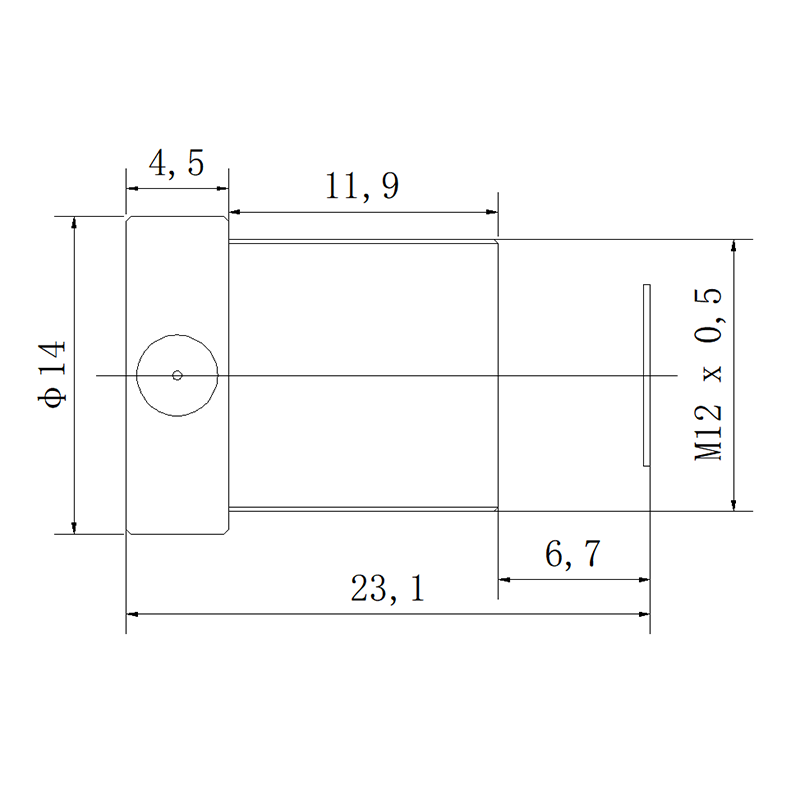

The lens uses an M12×0.5 mount with a total track length of 23.10mm. This compact mechanical configuration is suitable for embedded cameras and space-constrained optical assemblies.

The F2.8 fixed aperture provides a stable optical configuration without requiring an adjustable iris mechanism. This can simplify integration into compact camera designs where a fixed optical configuration is preferred.

The 6G optical construction provides the specified optical configuration for this model.

For optical system planning and lens integration, engineers can refer to TOWIN’s Optical Design resources.

Frequently Asked Questions

Q: What type of lens is this 8mm M12 lens?

A: It is a fixed focal 5MP IR corrected M12 low distortion lens designed for 1/2.5″ camera systems. It provides a 50° diagonal FOV, <-7% distortion, and a 0.1m minimum object distance.

Q: What does IR corrected mean?

A: IR correction is designed to reduce focus differences between visible and near-infrared wavelengths. This helps maintain more consistent image focus when a camera operates with IR illumination or switches between daytime and nighttime imaging.

Q: Is this lens suitable for day/night security cameras?

A: Yes. Its IR corrected optical design makes it suitable for camera systems using near-infrared illumination, including day/night security cameras and smart monitoring systems.

Q: What is the field of view of this 8mm lens?

A: The specified field of view is 50° diagonal, 40° horizontal, and 30° vertical.

Q: Is this an 8mm low distortion M12 lens?

A: Yes. The specified distortion is below -7%, providing controlled geometric performance for many industrial, security, and embedded imaging applications. Precision measurement applications should still validate the complete camera system through calibration.

Q: What is the minimum object distance?

A: The specified minimum object distance is 0.1m, allowing the lens to be used for relatively close-range imaging.

Q: Is this lens suitable for machine vision?

A: Yes. Its 5MP resolution, controlled distortion, focused 8mm focal length, close focusing capability, and compact M12 mount make it suitable for selected machine vision and industrial inspection applications.

Q: What sensor size is this lens designed for?

A: The lens is specified for a 1/2.5″ image format. The final sensor compatibility should be confirmed by checking the sensor’s active area and the complete camera optical configuration.

Related Products & Optical Resources

This lens is part of TOWIN’s M12 Lenses range and is particularly suited to customers looking for a compact IR corrected, low distortion, fixed focal M12 lens.

For day/night camera systems, customers can also review TOWIN’s IR Cut Filter Switcher Holder accessories.

When selecting an industrial camera lens, focal length, sensor size, FOV, distortion, working distance, and illumination conditions should be considered together. TOWIN’s Lens Selection Guide provides additional selection guidance.

For understanding sensor and lens matching, see the Sensor Guide; For preliminary focal-length calculations, engineers can use the Focal Length Calculator; For industrial inspection and automated imaging applications, see TOWIN’s Machine Vision solution; For OEM/ODM optical development, sample evaluation, or customized requirements, Contact TOWIN.
