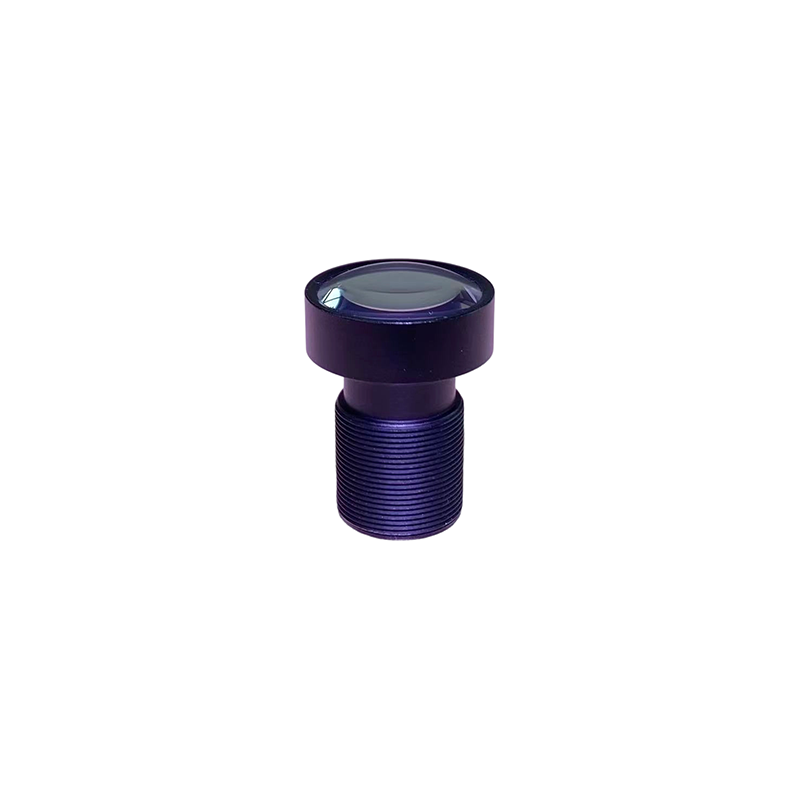

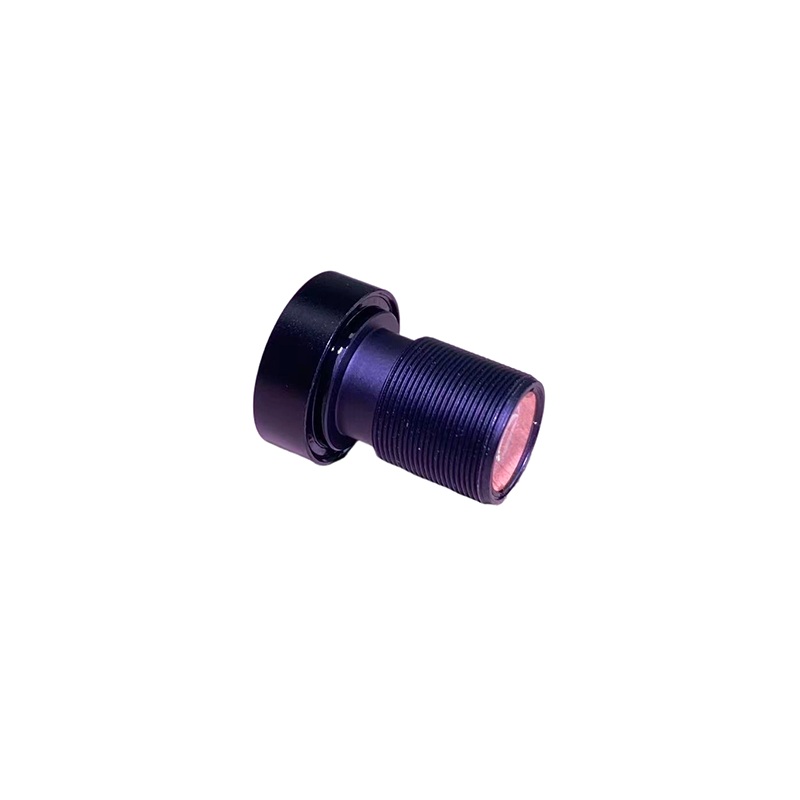

Low distortion Wide-angle 1/1.8″ Φ9.5mm M12/S-Mount lens, 8-Megapixel, F2.4, for general surveillance applications.
S05211807524 is Low distortion Wide-angle 1/1.8″ Φ9.5mm M12/S-Mount lens, 8-Megapixel, F2.4 aperture, for general surveillance applications.

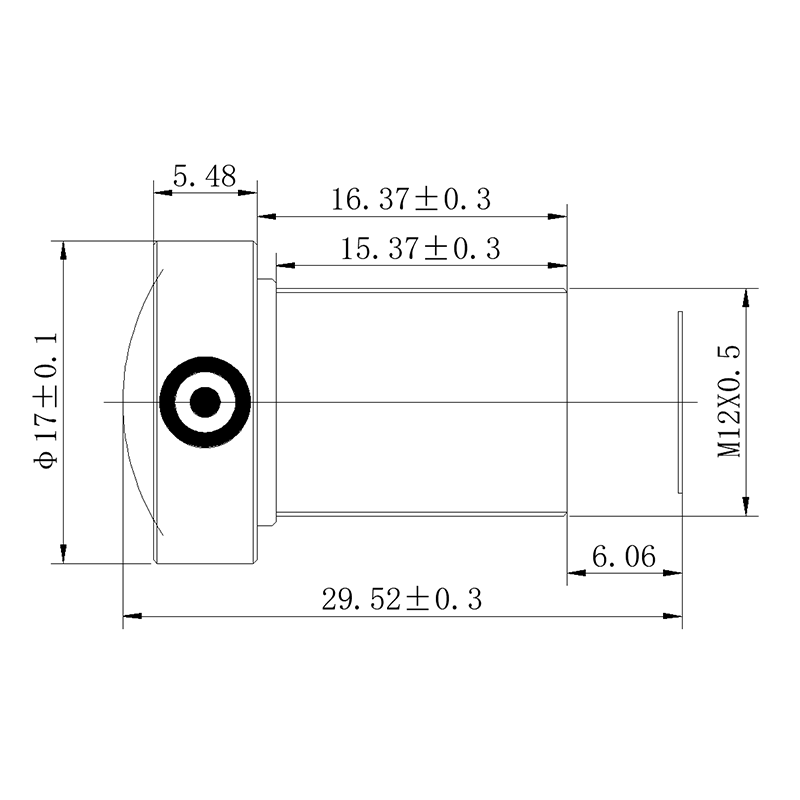

| IMAGE FORMAT | Φ9.5mm, 1/1.8″ |
| FOCAL LENGTH | 5.28mm |
| F.O.V.@1/1.8″ | 83°(D=8.81) |
| 75°(H=7.68) | |
| 46°(V=4.32) | |
| RESOLUTION | 8 MP |
| TV DISTORTION | <-1.3% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| M.O.D. | 0.2m |
| T.T.L. | 29.52mm |
| STRUCTURE | Without IRCF |
