Low Distortion Lens – S05513204528

S05513204528 is Low distortion M12-mount 13-megapixel lens, featuring an F2.8 aperture, with 1/2.3″ or 1/3.2″ sensors, for general CCTV applications.

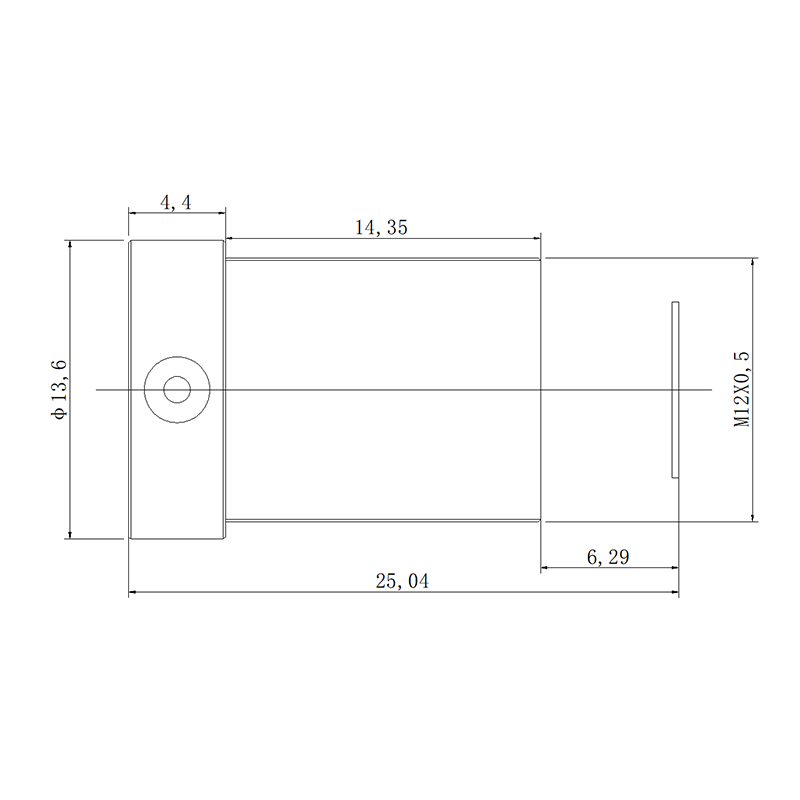

5.5mm M12 Low Distortion Lens

This 5.5mm M12 lens is a 13MP high-resolution low distortion lens designed for compact machine vision, industrial imaging, and embedded camera systems. Supporting 1/2.3″ and 1/3.2″ image formats, it provides different fields of view for IMX477 and AR1335 sensors, making it a flexible optical solution for high-resolution vision applications.

Product Highlights at a Glance

• 13MP resolution for detailed image capture in high-resolution vision systems
• Multi-format compatibility with 1/2.3″ and 1/3.2″ sensors
• Sensor-specific FOV optimized for IMX477 and AR1335 configurations
• CRA below 8° supports optical matching with compact image sensors
• F2.8 aperture for compact high-resolution camera designs
• M12x0.5 mount for embedded and board-level camera integration

5.5mm M12 Low Distortion Lens Applications

Core Application Scenes

The 5.5mm focal length is designed for high-resolution camera systems using 1/2.3″ or 1/3.2″ sensors. One of its key advantages is the ability to provide different fields of view according to the selected sensor.

With the IMX477, the lens provides a 71° diagonal, 62° horizontal, and 47° vertical field of view. When paired with the AR1335, the FOV becomes 57° diagonal, 45° horizontal, and 35° vertical. This makes the same 5.5mm optical design adaptable to different camera platforms while maintaining a defined imaging geometry.

The 13MP resolution makes this lens particularly suitable for applications where image detail is more important than simply maximizing scene coverage. It can be used for object recognition, detailed inspection, embedded AI vision, robotic imaging, and other high-resolution applications.

The CRA below 8° is another useful characteristic for compact sensor integration, particularly when the lens is paired with modern high-resolution image sensors. The 24.79mm TTL provides a compact optical format while allowing a longer optical assembly than ultra-short M12 modules.

Typical applications include:

• High-resolution machine vision
• Industrial visual inspection
• Embedded AI vision
• Object recognition
• Robotic vision
• Precision component inspection
• Automated optical inspection
• Compact high-resolution cameras
• Smart factory imaging
• Edge AI camera systems
• High-detail monitoring systems

For systems using different sensor formats, TOWIN’s Sensor Guide can help engineers understand how sensor size affects image coverage. The Lens Selection Guide can also be used when comparing focal length, sensor format, FOV, and resolution requirements.

Compatible Devices

This lens can be considered for:

• Sony IMX477-based camera modules
• ON Semiconductor AR1335-based camera modules
• 1/2.3″ high-resolution cameras
• 1/3.2″ embedded cameras
• 13MP machine vision cameras
• M12-mount board cameras
• Embedded AI vision modules
• Robotic vision cameras
• Compact industrial imaging systems
• High-resolution inspection cameras

Because the FOV changes with sensor format, the selected sensor should be confirmed before system design. Engineers can also use TOWIN’s FOV Calculator to evaluate the relationship between sensor dimensions, focal length, and working distance.

Designed for high-resolution machine vision and embedded imaging applications requiring 13MP detail with flexible compatibility across different sensor formats.

Frequently Asked Questions

Q1: What resolution does this 5.5mm M12 lens support?
A: The lens is specified for 13MP resolution, making it suitable for high-resolution machine vision, industrial imaging, and embedded camera applications.

Q2: Which image sensors can be used with this lens?
A: The supplied specifications list IMX477 and AR1335 configurations. The lens supports 1/2.3″ and 1/3.2″ image formats.

Q3: What is the FOV with the IMX477 sensor?
A: With the IMX477, the specified FOV is 71° diagonal, 62° horizontal, and 47° vertical.

Q4: What is the FOV with the AR1335 sensor?
A: With the AR1335, the specified FOV is 57° diagonal, 45° horizontal, and 35° vertical.

Q5: Is this a low distortion lens?
A: The specified distortion is below 3%. While this provides controlled optical distortion, the lens is better positioned as a high-resolution M12 lens rather than as a dedicated low distortion model.

Q6: Is this lens a fisheye lens?
A: No. The specified FOV and distortion do not support fisheye classification. It is better categorized as a fixed focal high-resolution M12 lens.

Q7: What does CRA <8° mean?
A: CRA, or chief ray angle, describes the angle of the chief ray reaching the image sensor. A CRA below 8° is useful when matching the lens to compact image sensors and their pixel architecture.

Q8: What is the minimum object distance?
A: The specified MOD is 0.2m, or 200mm.
