M803112908025F
Low Distortion Wide-angle CCTV lens with Built-In IR Filter, 1/2.9″ format, M8x0.35 mount, and F2.5 aperture for security surveillance.
M803112908025F is Low Distortion Wide-angle CCTV lens with Built-In IR Filter, 1/2.9″ format, M8x0.35 mount, and F2.5 aperture for security surveillance.
| IMAGE FORMAT | 1/2.9″ |
| FOCAL LENGTH | 3.1mm |
| F.O.V. @OV2718 | 90°(D) |
| 80°(H) | |
| 49°(V) | |
| RESOLUTION | 2 MP |
| DISTORTION | <-9.7% |
| APERTURE | F2.5 |

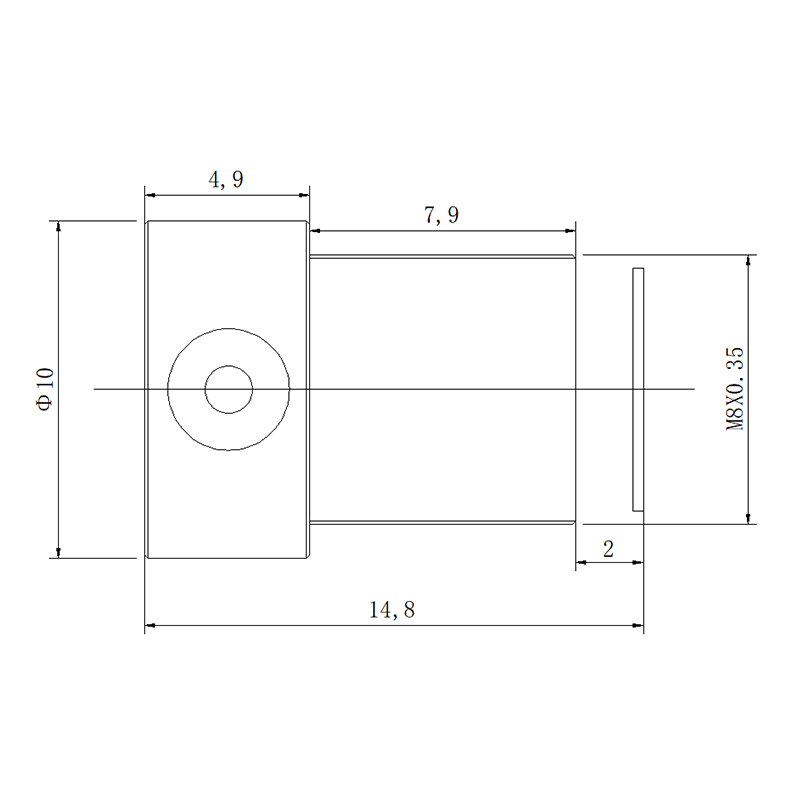

| MOUNT | M8x0.35 |
| T.T.L. | 14.6mm |
| STRUCTURE | 2G2P+IRCF |
