Low distortion wide angle 1/2.5″ 5.1mm 65° M7.5 mount lens rectilinear scanning HD 5MP

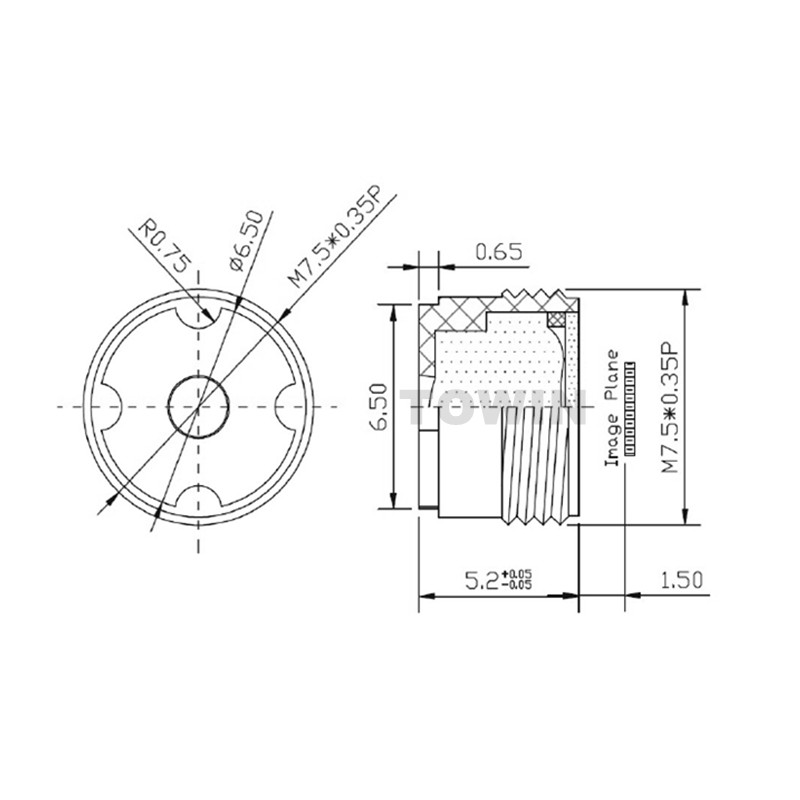

CCL125051MPF Low distortion wide angle 1/2.5″ 5.1mm 65° M7.5 mount lens rectilinear scanning HD 5MP
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 5.1mm |
| H.F.O.V. | 65° |
| RESOLUTION | 5 MP |
| OPTICAL DISTORTION | <-1% |
| APERTURE | F2.8 |
| MOUNT | M7.5×0.35 |
| IRIS | Fixed |
| B.F.L. | 1.5mm |
| M.O.D. | 0.2m |
| T.T.L. | 6.7mm |
| DIMENSION | Φ7.5×5.2mm |
| LENS COMPOMEMT | 5P+ 1IR cut |
CCL125051MPF Low distortion wide angle 5.1mm 65° M7.5 mount lens rectilinear scanning HD 5MP
