CCL12080MP

low distortion lens 1/2″ 5MP 8mm F1.8 IR correction M12 mount lens

Category: Low Distortion Lens Tags: low distortion lens, M12-mount lens

Description
Additional information

CCL12080MP low distortion lens 1/2″ 5MP 8mm F1.8 IR correction M12 mount lens

IMAGE FORMAT	1/2″
FOCAL LENGTH	8mm
F.O.V.	63°(D)
	51°(H)
	39°(V)
RESOLUTION	5 MP
DISTORTION	<12.9%
APERTURE	F1.8
MOUNT(mm)	M12x0.5
IRIS	Fixed
B.F.L.	7.8mm
T.T.L.	26.20mm

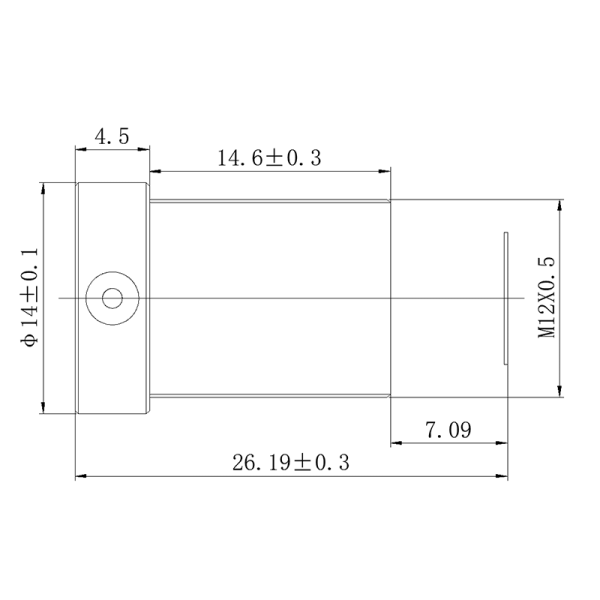

DIMENSION	Φ14×19.1mm
CONSTRUCTION	6G
IR	Corrected

Download Specs Sheet

Online contact

SENSOR	1/2"
E.F.L.	8mm
H. F.O.V.	52°-25°
IRIS	Fixed
RESOLUTION	5MP
MOUNT	M12x0.5
FNo.	1.8
FEATURE	Low Distortion
Max Dist.	12.9%
MARK	HOT LENSES
T.T.L.(mm)	26.20
