S02812812018
1/2.8″, 2.8mm S-mount lens, wide angle HFOV 120, large aperutre F1.8 for CCTV.

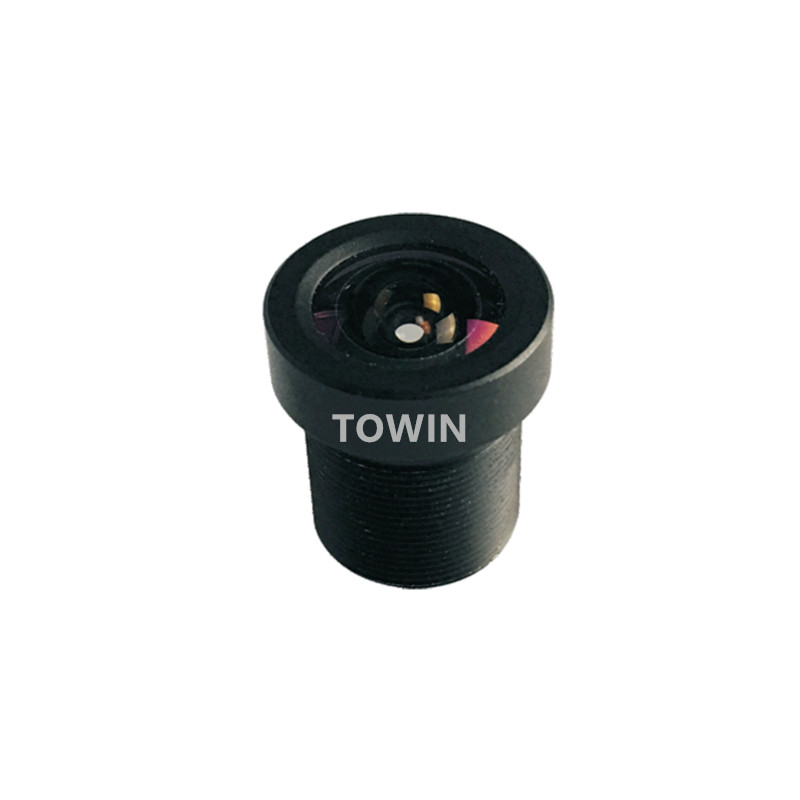

S02812812018 is a 2.8mm HD M12 S-Mount lens. It is for 1/2.8”, IMX322, IMX290, IMX291, 3 megapixel sensors. And it is super wide angle HFOV 120 degree with large aperture F1.8 for low light CCTV.
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V. (IMX291) | 135° |
| 120° | |
| 73° | |
| RESOLUTION | 3 MP |
| TV DISTORTION | <-26% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 23.2mm |
| STRUCTURE | 6G |

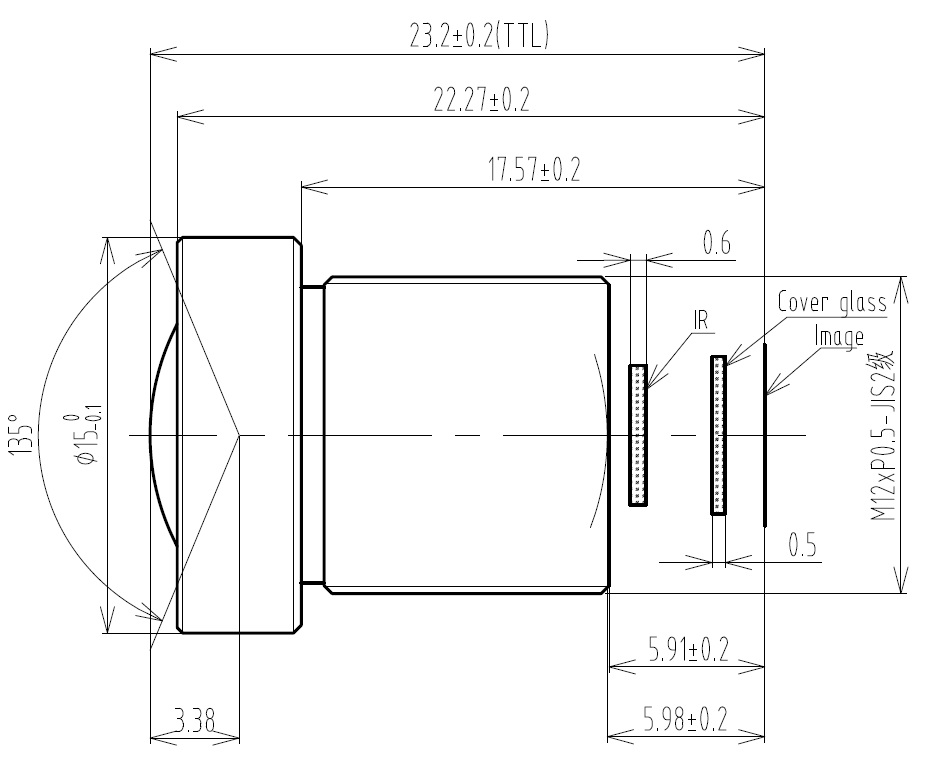

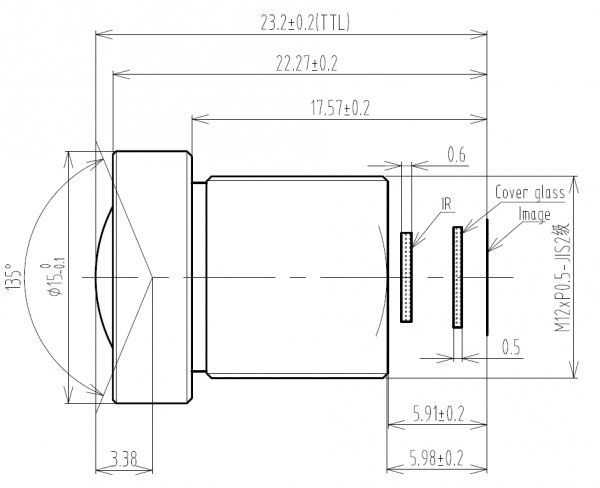

S02812812018 2.8mm HD S-Mount lens-1
