0.9mm Fisheye lens, F2.8 170° M12/S-mount ultra-wide-angle lens,1/4″ Megapixel CCTV Lens.

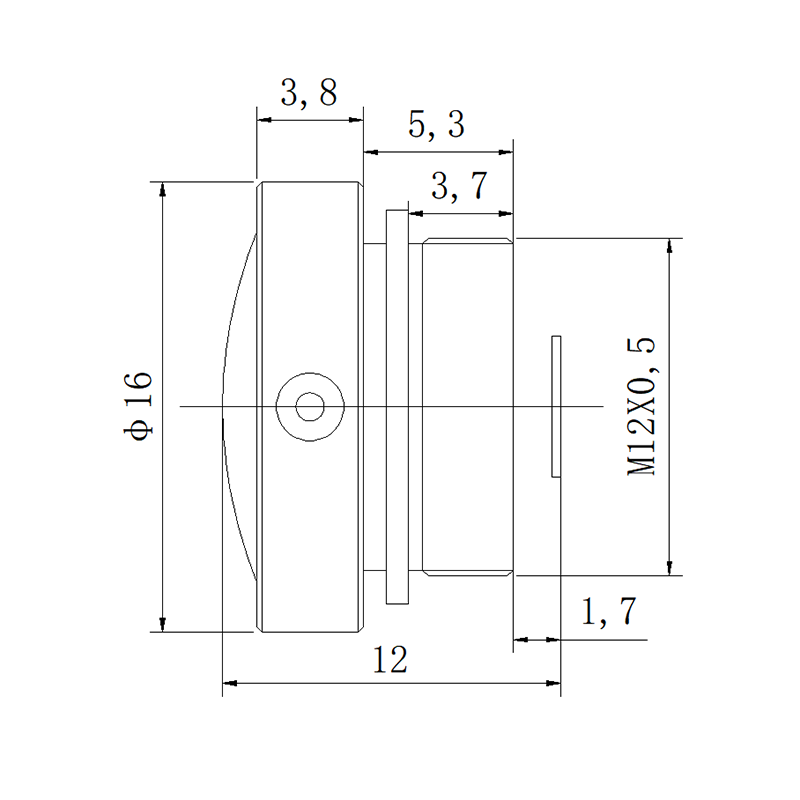

S00914014528F is 0.9mm High-Precision Fisheye lens with Built-In Filter, F2.8 170° M12/S-mount ultra-wide-angle lens,1/4″ Megapixel CCTV Lens.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 0.9mm |
| F.O.V. | 170°(D) |
| 145°(H) | |
| 122°(V) | |
| RESOLUTION | MP |
| TV DISTORTION | <-19% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 12mm |
| STRUCTURE | 2G2P+IRCF |
