Fisheye Lens – CCL136015

CCL136015 is 1/3.6″ 1.5mm High-Precision Fisheye lens with Built-In Filter, F2.2 Affordable M12/S-Mount Lens for DIY Projects, 190° VGA resolution CCTV lens.

For systems where the required field of view depends on camera geometry and installation distance, the FOV Calculator can help estimate the coverage area before selecting the final lens configuration.

1.5mm M12 190° Fisheye Lens for Ultra-Wide-Angle Imaging

This 1.5mm M12 fisheye lens is designed for compact camera systems that require an extremely wide field of view in a small optical package. With a 190° diagonal and horizontal FOV, 120° vertical FOV, fixed F2.2 aperture, and M12x0.5 mount, it provides broad scene coverage for embedded vision, compact surveillance, automotive vision, and panoramic imaging applications.

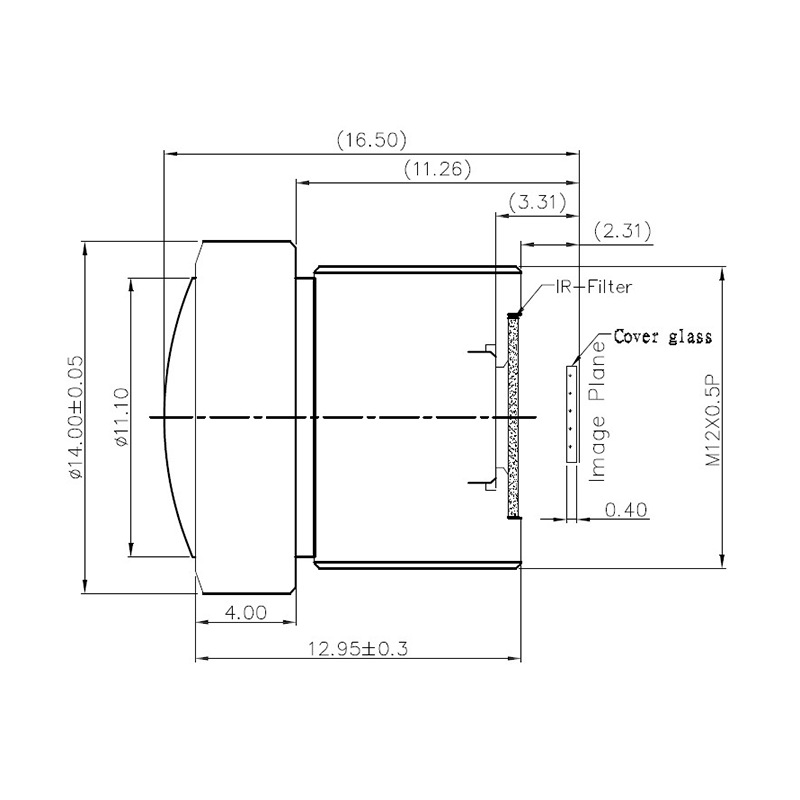

Its Φ14 × 12.95mm compact housing and 16.50mm total track length make this fixed focal lens well suited to space-constrained camera modules where maximum coverage is more important than long-distance image magnification.

M12 190° Fisheye Lens Core Product Highlights

• 190° Ultra-Wide FOV: Captures an exceptionally broad scene with a 190° diagonal and horizontal field of view.
• 1.5mm Focal Length: Provides extremely wide-angle coverage for close-range and panoramic imaging.
• Compact M12 Design: M12 × 0.5 mounting and Φ14mm housing support space-constrained camera modules.
• Fixed F2.2 Aperture: Delivers a consistent optical configuration for compact embedded vision systems.
• 4G1P + IR Construction: Compact optical construction combines wide-angle imaging with an IR-oriented optical configuration.

Applications & Compatible Devices

Core Application Scenes

This 1.5mm M12 fisheye lens is primarily designed for applications where extremely wide scene coverage is required from a small camera module. Its 190° FOV makes it particularly useful for short-range panoramic imaging, compact monitoring modules, and embedded cameras that need to capture areas immediately surrounding the camera.

In smart security systems, the lens can be integrated into compact indoor monitoring cameras, ceiling-mounted observation modules, and small embedded surveillance devices where a single camera needs to cover a large area at close range. The ultra-wide viewing angle helps reduce blind spots and can simplify camera placement in confined spaces.

For automotive vision and vehicle-mounted imaging, its compact M12 form factor and extremely wide FOV make it suitable for close-range auxiliary cameras, surround-view concepts, parking-area observation, and other embedded camera modules where broad coverage is required within a limited installation space.

The lens can also be used in compact machine vision and robotic vision systems where the objective is scene awareness rather than high-resolution dimensional inspection. Its wide perspective can help an embedded camera observe work areas, machine surroundings, or short-range movement within a confined installation zone.

Compatible Device List

• Compact Embedded Cameras: Suitable for small camera modules using 1/3.6″ image sensors and M12 × 0.5 lens interfaces.
• Smart Security Cameras: Appropriate for compact indoor monitoring units, panoramic observation modules, and close-range surveillance devices.
• Automotive Camera Modules: Can be considered for auxiliary vehicle cameras and close-range surround-view or parking observation systems requiring very wide coverage.
• Robotic & Embedded Vision: Useful for compact robots and embedded vision devices that need broad environmental awareness within a short working range.
• Custom Camera Systems: The M12 form factor allows integration into customized camera housings where installation space and viewing coverage are critical design considerations.

Designed for ultra-wide-angle embedded vision, compact surveillance, automotive auxiliary imaging, and short-range panoramic camera applications.

For more information about compact optical configurations, visit the M12 Lenses product section. For projects that require a different mounting format or optical specification, the full product range provides additional industrial and embedded lens options.

Frequently Asked Questions

Q: What type of lens is this 1.5mm M12 lens?

A: It is a fixed focal M12 fisheye lens with a 1.5mm focal length and an extremely wide 190° diagonal and horizontal field of view.

Q: What image sensor format is compatible with this lens?

A: The lens is specified for a 1/3.6″ image format and is designed for camera modules using compatible image sensors.

Q: What is the field of view of this M12 fisheye lens?

A: The specified field of view is 190° horizontally, 190° diagonally, and 120° vertically, providing very broad scene coverage.

Q: Is this lens suitable for compact camera modules?

A: Yes. The M12 × 0.5 mount, Φ14 × 12.95mm dimensions, and 16.50mm T.T.L. make it suitable for space-constrained embedded camera designs.

Q: What applications are suitable for this 1.5mm fisheye lens?

A: Typical applications include compact surveillance cameras, panoramic observation, automotive auxiliary imaging, embedded vision, robotic awareness, and other short-range applications requiring extremely wide coverage.

Q: Does this lens have adjustable iris control?

A: No. The lens uses a fixed iris with an F2.2 aperture, providing a fixed optical configuration for the target camera system.

Q: Can this lens be used for high-precision machine vision inspection?

A: The lens is better suited to wide-area scene coverage and visual awareness than precision measurement. Its specified resolution is VGA, while its primary advantage is the extremely wide 190° field of view.

Q: How can I determine whether this lens provides enough coverage for my camera installation?

A: You can use the FOV Calculator together with the camera sensor and installation distance to estimate the required coverage. For focal-length selection, the Focal Length Calculator can also assist with lens planning.

Need a Custom M12 190° Fisheye Lens Configuration?

If your camera project requires a specific field of view, sensor format, mechanical envelope, optical coating, or customized housing, contact the TOWIN optical engineering team to discuss your requirements. TOWIN provides M12 and other industrial lens configurations for customized embedded vision and imaging systems.
