S02212814824F
Wide-Angle 3-Megapixel CCTV Lens with Built-In IR Filter, M12 Mount, 170° (Diagonal) F2.4 Lens for Security Surveillance.
S02212814824F is Wide-Angle 3-Megapixel CCTV Lens with Built-In IR Filter, M12 Mount, 170° (Diagonal) F2.4 Lens for Security Surveillance.
| IMAGE FORMAT | Φ6.8 |
| FOCAL LENGTH | 2.2mm |
| F.O.V. (IMX307) | 170°(D=6.39) |
| 148°(H=5.57) | |
| 82°(V=3.13) | |
| RESOLUTION | 3 MP |
| TV DISTORTION | <-29% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |

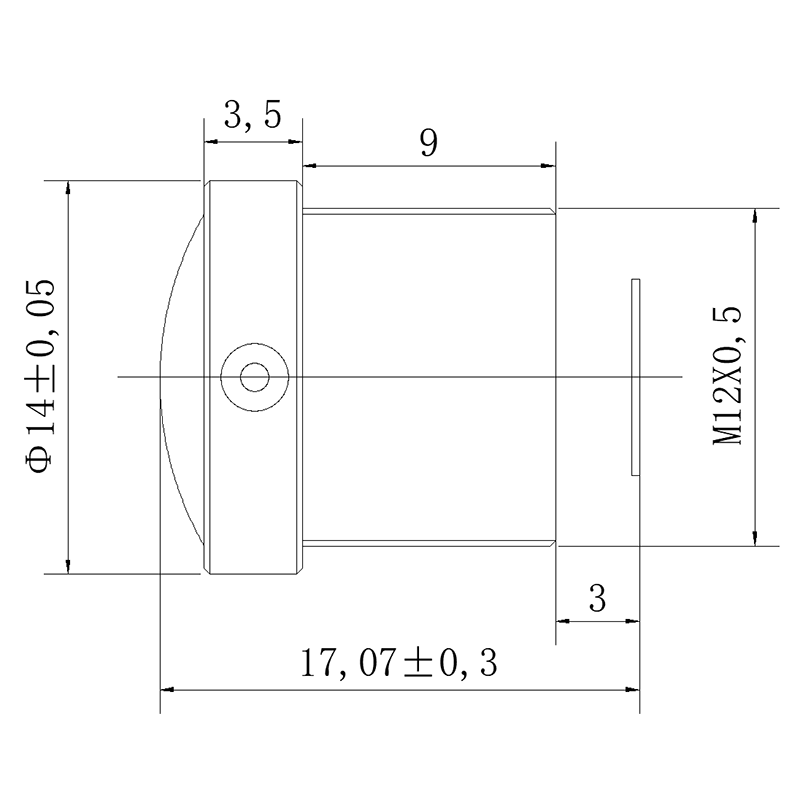

| T.T.L. | 17.07mm |
| STRUCTURE | 6G+IRCF |
