CCL13032MPR M12 S-mount wide angle CCTV board lens IR corrected
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 3.2mm |
| F.O.V. | 108°(D) |
| 87°(H) | |
| 66° (V) | |
| RESOLUTION | 8 MP |
| APERTURE | F2.0 |
| DISTORTION | <-34% |
| MOUNT | M12 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 6.14mm |
| IR | Corrected |

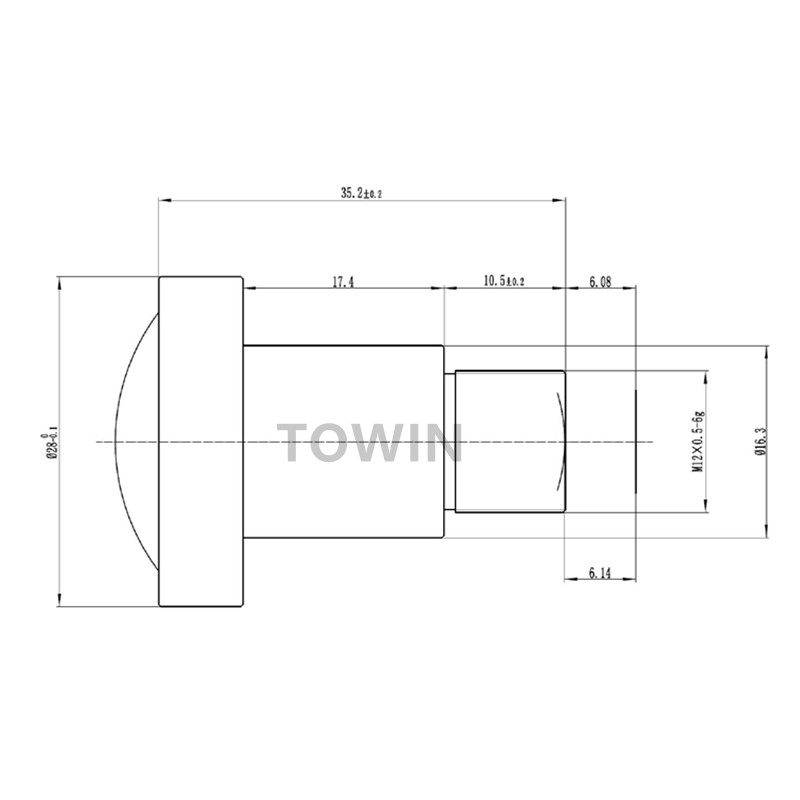

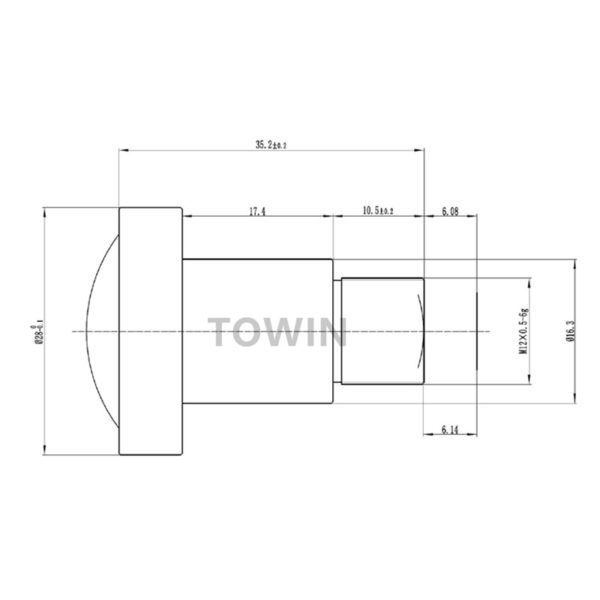

CCL13032MPR M12 S-mount wide angle CCTV board lens IR corrected-1
