M12 S-mount wide angle 2.8mm board lens with IR cut off filter for OV4689

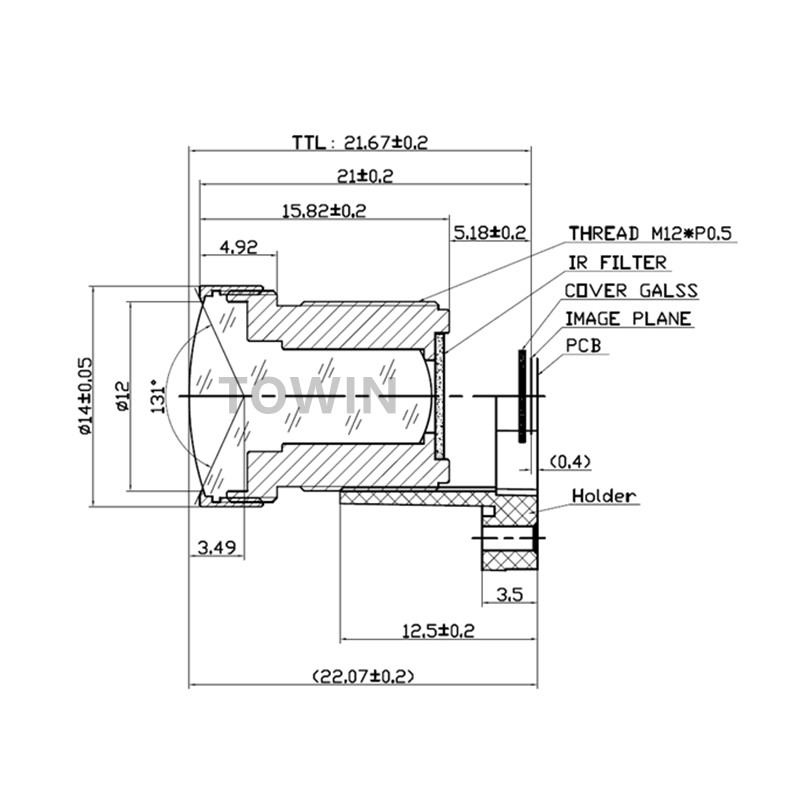

CCL1302822MPF M12 S-mount wide angle 2.8mm board lens with IR cut off filter for OV4689
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V.@6.38 | 138°(D) |
| F.O.V.@5.38 | 114°(H) |
| F.O.V.@3.34 | 70°(V) |
| RESOLUTION | 4 Megapixel |
| DISTORTION | <-37% |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 21.67mm |
| B.F.L. | 6.3mm |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G+IRF |
CCL1302822MPF M12 S-mount wide angle 2.8mm board lens with IR cut off filter for OV4689
