CCL13017MPR
Low distortion wide angle 100° M12 mount board lens 1/3″ HD 3MP rectilinear scanning

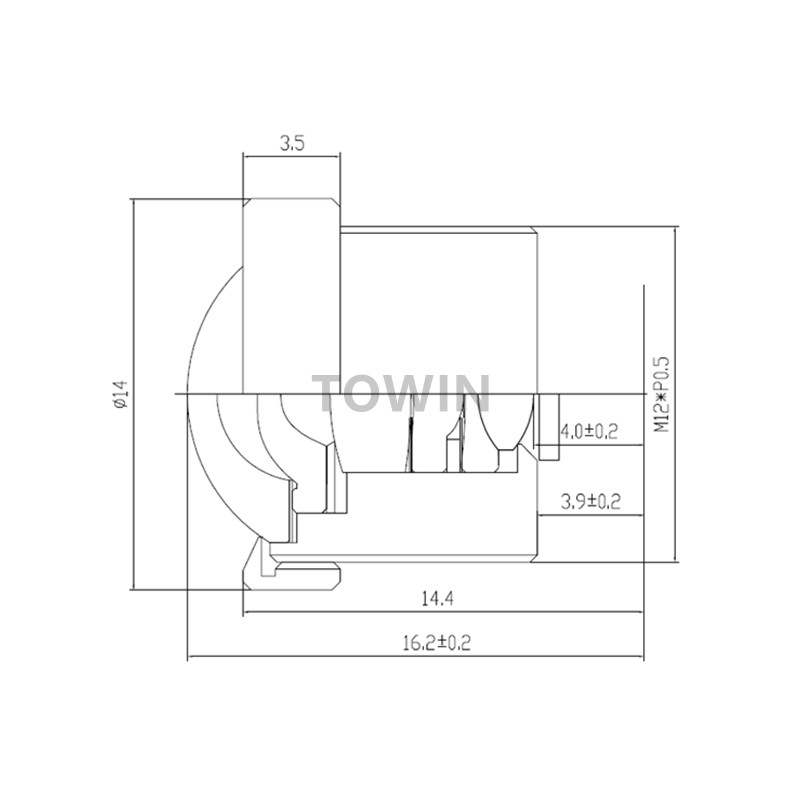

CCL13017MPR Low distortion wide angle 100° M12 mount board lens 1/3″ HD 3MP rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 1.7 mm |
| F.O.V. | 120°(D) |
| 100°(H) | |
| 85°(V) | |
| RESOLUTION | 3 megapixel |
| DISTORTION | <2% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 4 mm |
| T.T.L. | 16.2mm |
| LENS COMPONENT | 4G2P |
CCL13017MPR Low distortion wide angle 100° M12 mount board lens HD 3MP rectilinear scanning
