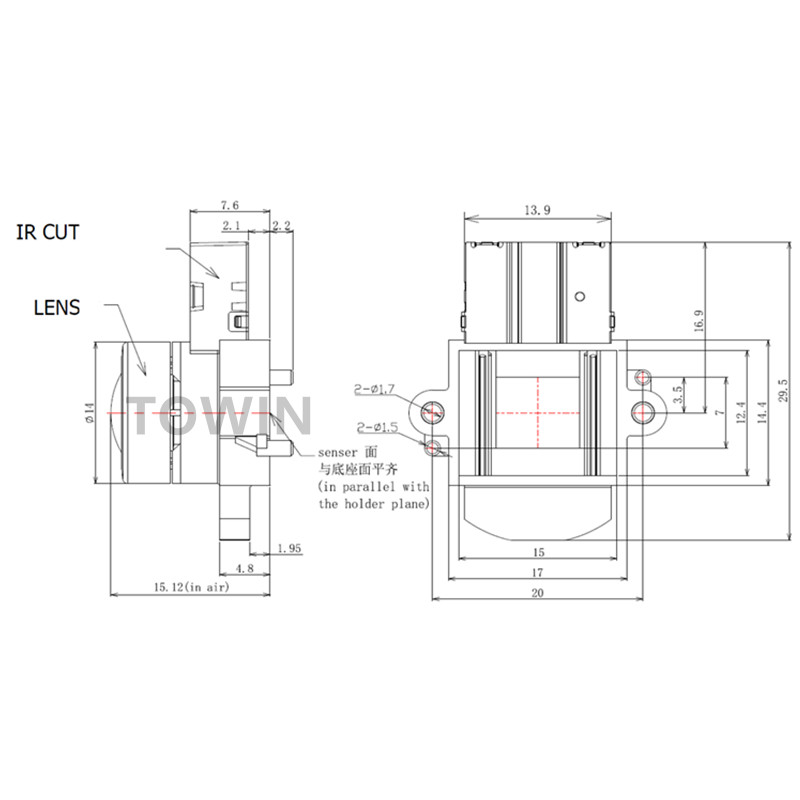

CCL129021MPIRC M12 S-mount wide angle 2.1mm board lens with IR cut filter removable。
| IMAGE FORMAT | 1/2.9″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V. | 161°(D) |
| 141°(H) | |
| 82°(V) | |
| RESOLUTION | 4 Megapixel |
| OPTICAL DISTORTION | <-25% |
| APERTURE | F2.1 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| T.T.L. | 15.12mm |
| B.F.L. | 3.72mm |
| M.B.F.L. | 3.37mm |
| M.O.D. | 0.3m |
| LENS STRUCTURE | 2G5P |
CCL129021MPIRC M12 S-mount wide angle 2.1 board lens with IR cut filter removable
