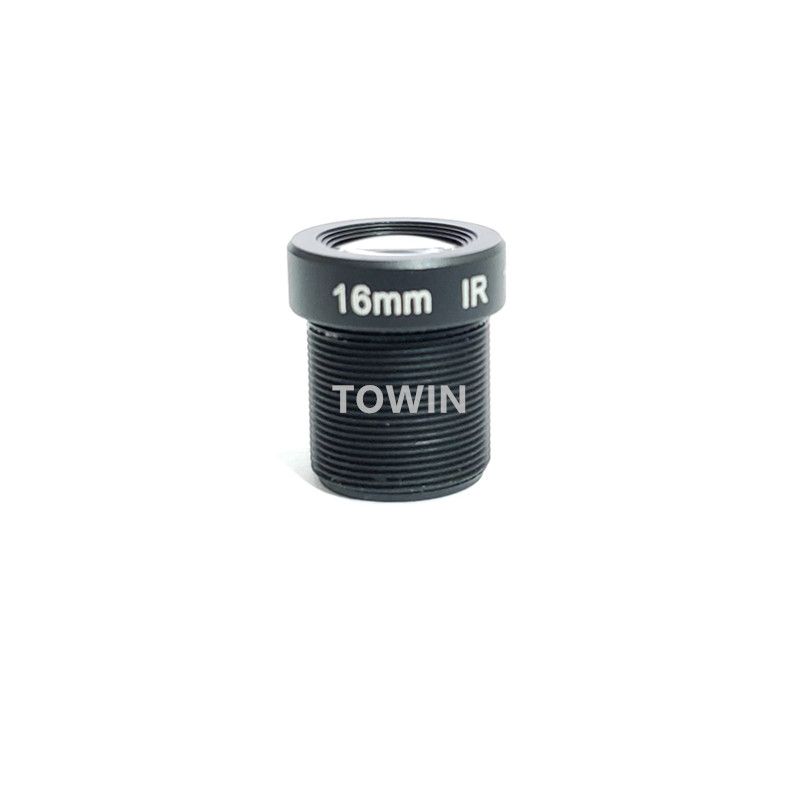

Low distortion CCTV 16mm M12 s-mount board lens 1/2.5″ IR corrected HD 5MP security
CCL12516MPR2 Low distortion CCTV 16mm 1/2.5″ M12 s-mount board lens IR corrected HD 5MP security
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 16mm |
| F.O.V. | 26°(D) |
| 25°(H) | |
| 16°(V) | |
| RESOLUTION | 5MP |
| DISTORTION | <-0.3% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 22.5mm |
| B.F.L. | 7.1mm |

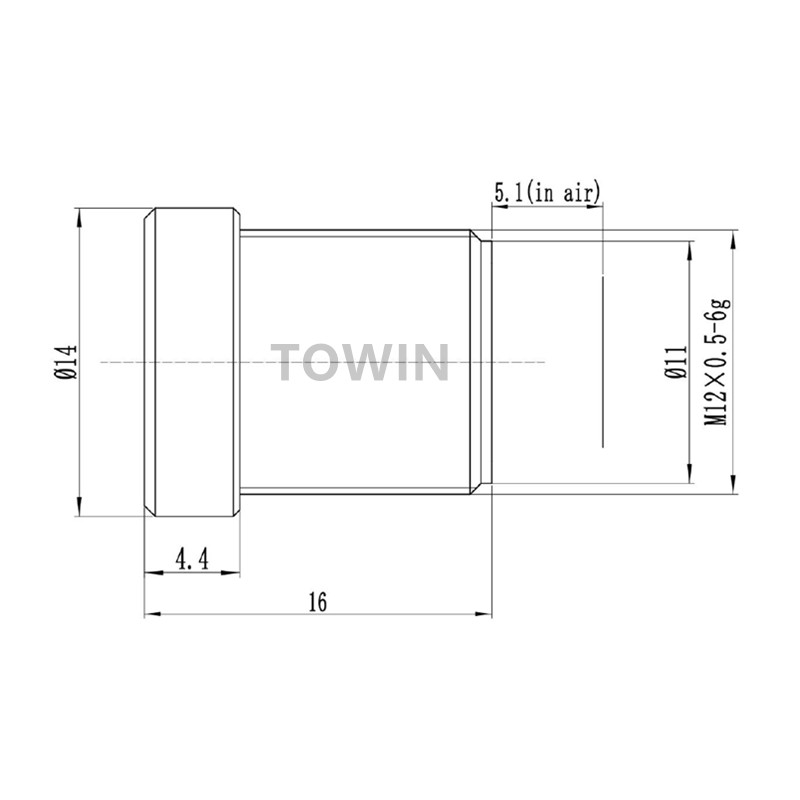

| DIMENSION | Φ14×15.8mm |
| IR | Corrected |
