CCL123044MPF
Low distortion wide angle 1/2.3″ 72° M12 s-mount board lens HD 12MP rectilinear scanning
CCL123044MPF Low distortion wide angle 1/2.3″ 72° M12 s-mount board lens HD 12MP rectilinear scanning
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 4.4mm |
| F.O.V. | 84°(D) |
| 72°(H) | |
| 56°(V) | |
| RESOLUTION | 12 MP |
| DISTORTION | <1% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |

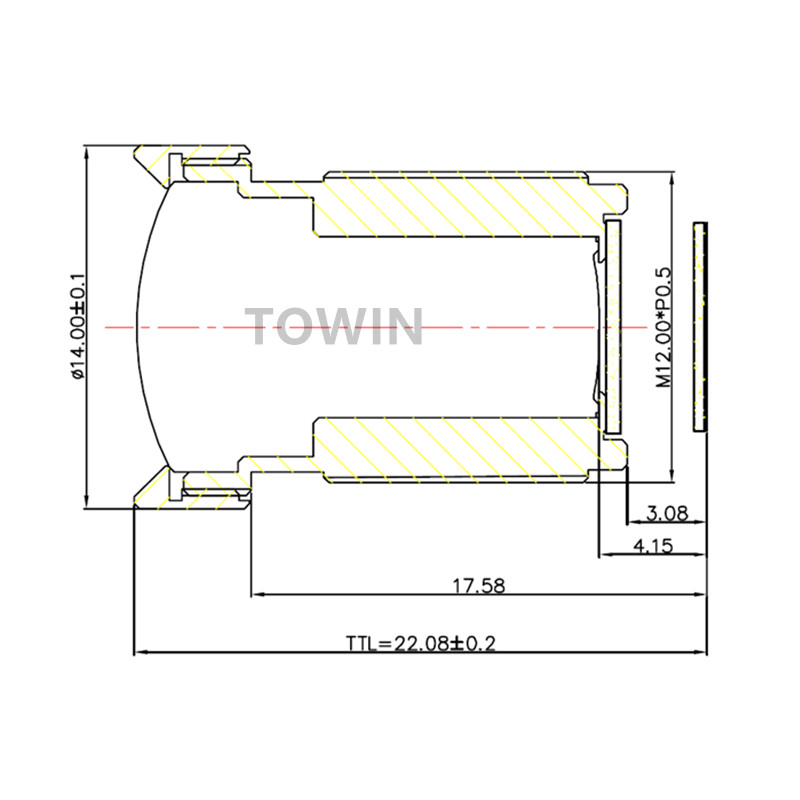

| T.T.L. | 22.08mm |
| DIMENSION | Φ14x19mm |
| COMPONENT | 4G2P+IRF |
CCL123044MPF Low distortion wide angle 72° M12 s-mount board lens HD 12MP rectilinear scanning
