Why Use an Ultra Wide Angle Lens for Sports Camera?

Ultra wide angle lenses are essential for sports and action cameras because they capture wider scenes, enhance perspective, and maintain sharpness in fast-moving environments.

Benefits include:

• Wider field of view to record full action scenes without missing details
• Stronger sense of depth and immersion for outdoor sports footage
• Larger depth of field to keep foreground and background clear
• Compact size and lightweight design suitable for sports camera assembly
• Better performance in outdoor, riding, skiing, surfing, and first-person view shooting

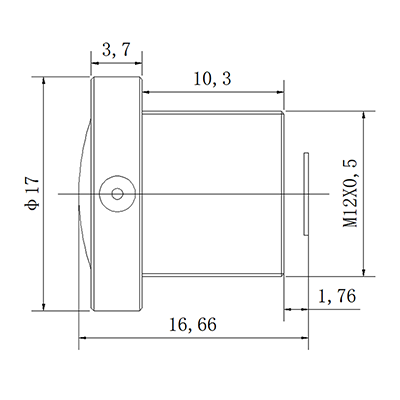

Fisheye CCTV Lens

Key Specifications of Ultra Wide Angle Lens for Sports Camera

When choosing an ultra wide angle lenses for sports camera, these parameters directly determine image quality and compatibility.

Focal Length & Field of View (FOV)

• Focal length range: 1.8mm – 3.6mm for sports camera ultra wide lenses
• FOV range: 110° – 145° is the most practical for action recording
• Over 150° often causes heavy distortion and is not recommended for professional use

Distortion Control

• Low distortion is critical for natural, non-deformed footage
• Optical distortion rate below 1% provides professional-level imaging
• TOWIN lenses use precision optical design to minimize barrel distortion

Aperture & Light Sensitivity

• Aperture between F1.6 – F2.6 for better low-light performance
• Larger aperture improves night sports and indoor recording
• Balances brightness and depth of field for stable imaging

Resolution & Sensor Compatibility

• Support 5MP, 8MP, 12MP, and 4K sensors
• Match your sports camera sensor to avoid blurry or cropped images
• High-resolution lenses ensure sharp edges and clear details

Mount Type & Structure

• M12 / S-mount: Most widely used for compact sports cameras
• CS-mount: For integrated sports camera modules
• C-mount: For industrial-grade and high-shock-resistance applications

Environmental Durability

• Wide operating temperature range for outdoor use
• Anti-shock and anti-vibration design
• Multi-layer coating to reduce glare and reflections
• IR-sensitive or IR-cut options for day/night dual-use

Ultra Wide Angle Lens Comparison for Sports Camera

Below is a clear comparison between standard wide lenses, high-distortion fisheye lenses, and professional TOWIN ultra wide lenses.

How to Select the Best Ultra Wide Angle Lens for Sports Camera

Follow this step-by-step guide to choose the most suitable lens for your device.

• Confirm your camera mount type (M12, CS, or C)
• Decide your required FOV based on scene:
  • Vlog & selfie: 110° – 120°
  • Outdoor sports & riding: 120° – 135°
  • Extreme sports & first-person view: 135° – 145°
• Choose aperture based on lighting: F1.6–F2.0 for low light, F2.2–F2.6 for general use
• Select resolution matching your sensor (5MP, 8MP, 4K)
• Decide if you need IR compatibility for day-night dual-use
• Consider shock resistance and temperature range for outdoor use

Recommended TOWIN Ultra Wide Angle Lenses for Sports Camera

TOWIN designs and manufactures high-quality ultra wide angle lenses optimized for sports and action cameras.

CCL132021MP 2.1mm M12 ultra wide angle lens

• Focal length: 2.1mm
• FOV: 130°
• Distortion: ≤12%
• Aperture: F1.8
• Resolution: 8MP
• Mount: M12
• Ideal for mini sports cameras and portable action cams

CCL14014MP 1/4″ M12 Fixed Focus Lens

• Focal length: 1.4mm
• FOV: 138°
• Low distortion optical design
• Aperture: F2.0
• Resolution: 5MP
• Mount: M12
• Suitable for high-end sports camera modules

Custom Ultra Wide angle Lens Solution

• Customizable FOV, focal length, and distortion
• Support for wide temperature and anti-shock requirements
• OEM & ODM available for bulk projects
• Fast prototyping and stable mass production

8mp S-mount-wide-angle-2.1mm-f1.8-lens

FAQs

Q: What FOV is best for a sports camera ultra wide lens?

120°–140° offers the best balance between wide view and natural imaging. Too wide causes distortion; too narrow limits scene capture.

Q: Are M12 lenses suitable for sports cameras?

Yes. M12 mount is the most common, compact, and cost-effective choice for consumer and industrial sports cameras.

Q: How to reduce distortion in ultra wide sports camera lenses?

Choose optically corrected low-distortion lenses like TOWIN models, and use mild in-camera distortion correction.

Q: Can I replace my original sports camera lens?

In most modular sports cameras, yes. Confirm the mount, back focal length, and sensor size before replacement.

Q: Does TOWIN support custom ultra wide lenses?

Yes. TOWIN provides custom design, sample testing, and mass production for sports camera manufacturers and engineering teams.

Installation & Maintenance Tips

• Handle lenses gently to avoid scratching the glass surface
• Align the thread correctly before tightening to prevent cross-threading
• Use clean, lint-free cloth to wipe the lens
• Store in a dry, dust-free environment
• Calibrate focus after installation for sharpest imaging
• Avoid strong impact and high humidity for long-term durability

Conclusion

An ultra wide angle lens for sports camera greatly improves imaging range, immersion, and overall video quality. By comparing focal length, FOV, distortion, aperture, and mount type, you can select the ideal lens for your application.

TOWIN specializes in high-performance ultra wide angle lenses for sports cameras, with stable quality, competitive pricing, and professional customization support.
