Automotive Lens – S0661170711669

S0661170711669 is IP67/IP69K Waterproof Automotive Lens with a fixed F1.6 aperture, 8-Megapixel M12 lens suitable for surveillance or automotive applications.

6.5mm M12 8MP Automotive Lens

The 6.5mm M12 8MP lens is a wide-angle fixed focal lens designed for the 1/1.73″ OX08B40 image sensor, delivering an 81° diagonal field of view with F1.6 aperture. Its M12x0.5 mount, compact 32.75mm TTL, and IP67/IP69K protection make it suitable for demanding industrial, automotive, and outdoor machine vision imaging systems.

For more M12 optical options, explore the complete M12 Lens collection.

M12 Automotive Lens Core Highlights

• 8MP optical performance designed for the 1/1.73″ OX08B40 sensor.
• 6.5mm focal length provides an 81° diagonal and 71° horizontal FOV.
• F1.6 aperture provides strong light-gathering capability for challenging imaging environments.
• M12x0.5 compact mount integrates easily into space-constrained camera systems.
• IP67/IP69K protection supports demanding automotive, outdoor, and industrial environments.

6.5mm M12 Automotive Lens Applications

Wide-Angle Imaging for OX08B40

With an 81° diagonal FOV and 71° horizontal FOV on the 1/1.73″ OX08B40 sensor, this 6.5mm lens provides a practical balance between scene coverage and image detail. The optical configuration is suitable for applications where the camera needs to capture a relatively broad scene without using an extremely short focal length.

The 6.5mm M12 lens can be used in compact camera modules, embedded vision systems, industrial cameras, and vehicle-mounted imaging equipment.

For applications requiring wider or specialized optical coverage, TOWIN’s Wide Angle Lens range provides additional configurations.

8MP OX08B40 Sensor Compatibility

The lens is specifically matched to the 1/1.73″ OX08B40 8MP image sensor, making it suitable for high-resolution imaging systems where sensor coverage and optical resolution need to be considered together.

Its 6.5mm focal length provides:

• 81° diagonal FOV
• 71° horizontal FOV
• 40° vertical FOV
• 8MP sensor compatibility
• Max. Φ9.5mm image format

For engineers selecting a lens according to sensor dimensions, the TOWIN Sensor Guide can help explain the relationship between sensor size, image circle, and lens compatibility.

F1.6 Aperture for Low-Light Imaging

The F1.6 aperture provides a relatively large optical aperture for this compact M12 lens. This allows more light to reach the sensor compared with smaller-aperture designs, helping maintain usable image brightness when ambient illumination is limited.

This characteristic is particularly useful for:

• Outdoor machine vision cameras
• Vehicle-mounted cameras
• Industrial monitoring systems
• Embedded vision modules
• Compact smart cameras

IP67/IP69K Protection for Harsh Environments

The IP67 and IP69K protection ratings make this lens suitable for applications exposed to dust, water, cleaning processes, and demanding environmental conditions.

Designed for automotive, industrial, outdoor machine vision, and embedded imaging applications.

The waterproof construction also makes it suitable for TOWIN’s broader Waterproof Automotive Lens range.

Compact M12 Optical Integration

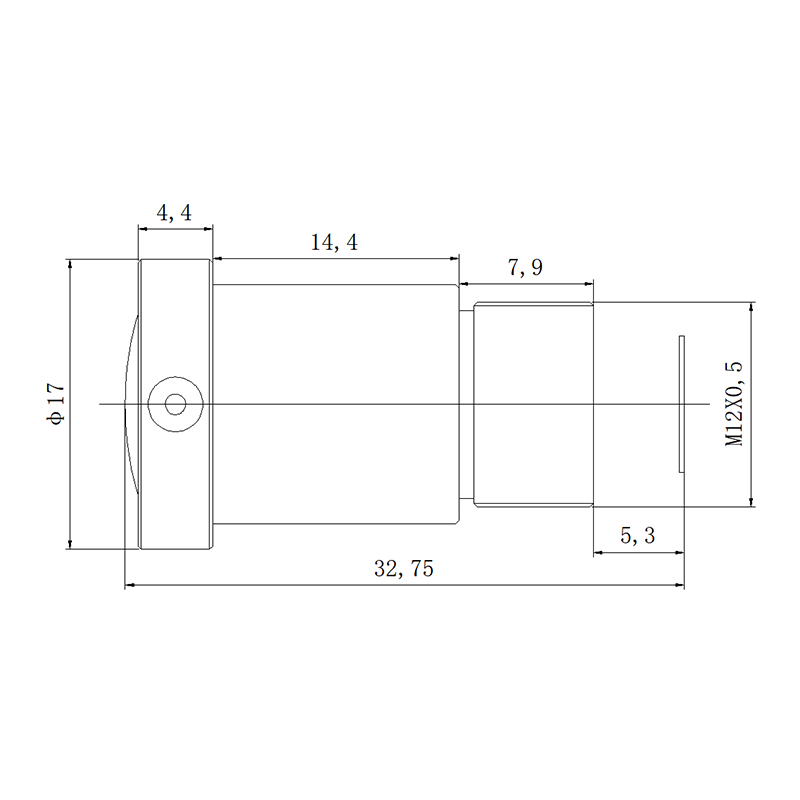

The M12x0.5 mount and 32.75mm total track length make this lens practical for compact camera assemblies where installation space is limited.

Typical compatible systems include:

• M12 camera modules
• Embedded vision cameras
• Compact industrial cameras
• Automotive vision modules
• Outdoor monitoring cameras
• Machine vision inspection equipment

For system-level machine vision applications, see TOWIN’s Machine Vision Solutions.

Frequently Asked Questions

Q: What sensor is the 6.5mm M12 lens designed for?

A: This lens is designed for the 1/1.73″ OX08B40 8MP image sensor and provides an 81° diagonal field of view.

Q: What is the field of view of this 6.5mm lens?

A: On the 1/1.73″ OX08B40 sensor, the lens provides 81° diagonal, 71° horizontal, and 40° vertical FOV.

Q: Is this 6.5mm M12 lens a wide-angle lens?

A: Yes. Its 81° diagonal FOV and 71° horizontal FOV provide wide-angle scene coverage while maintaining a relatively moderate 6.5mm focal length.

Q: Is this lens a fisheye lens?

A: No. Although it provides a relatively wide field of view, the lens is positioned as a wide-angle M12 lens rather than a fisheye lens.

Q: What is the aperture of this 6.5mm lens?

A: The lens uses a fixed F1.6 aperture, providing strong light-gathering capability for industrial and outdoor imaging applications.

Q: Is the 6.5mm M12 lens waterproof?

A: Yes. The lens is rated IP67 / IP69K, making it suitable for applications requiring protection against dust, water, and demanding environmental conditions.

Q: What mount does this lens use?

A: It uses an M12x0.5 mount, making it compatible with M12 camera modules and compact embedded imaging systems.

Q: Is this lens suitable for machine vision?

A: Yes. The 8MP OX08B40 compatibility, fixed 6.5mm focal length, wide-angle FOV, and rugged IP67/IP69K construction make it suitable for various industrial and machine vision camera systems.
