Wide Angle Lens – S01514013720F

S01514013720F is 1.5mm Ultra-wide-angle lens with Built-In Filter, F2.0 Low F-number M12/S-Mount Lens, 1/4″ VGA resolution Fixed iris CCTV lens.

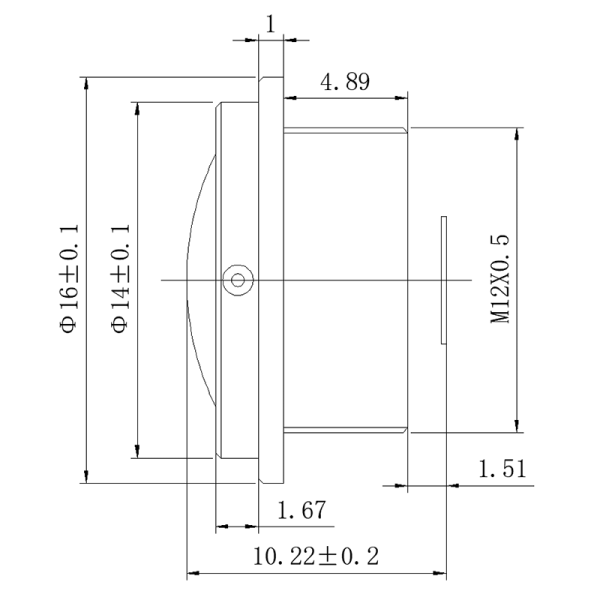

1.5mm M12 Ultra Wide Angle Lens for Compact Vision Systems

This 1.5mm M12 ultra wide angle lens is designed for compact imaging systems requiring an extremely broad field of view within a 1/4-inch image format. With a 169° diagonal FOV, 137° horizontal FOV, and 112° vertical FOV, the lens captures a wide scene from a very short focal length. Its F2.0 fixed aperture, manual focus, 0.2m minimum object distance, and compact 2G2P+IRCF optical structure make it suitable for embedded cameras, compact monitoring systems, automotive vision, and space-constrained imaging equipment.

For engineers selecting a compact lens, the combination of focal length, sensor size, field of view, and distortion should be evaluated together. TOWIN’s Lens Selection Guide provides additional information on selecting the appropriate optical configuration for different imaging requirements.

M12 Ultra Wide Angle Lens Core Product Highlights

• 169° diagonal field of view: The 1.5mm focal length provides an exceptionally broad viewing angle for applications where maximum scene coverage is important.
• Compact M12 x 0.5 mounting: The standard M12 interface allows integration into compact camera modules and embedded vision equipment.
• 1/4-inch image format: Optimized for VGA-class imaging sensors with a maximum image format of Φ4.7mm.
• F2.0 fixed aperture: Provides a practical balance between optical compactness and light transmission for embedded imaging applications.
• 2G2P + IRCF construction: The optical structure integrates an infrared-cut filter component for visible-light imaging systems.

M12 Ultra Wide Angle Lens Applications

Core Application Scenes

The extremely wide field of view makes this lens particularly useful when the camera must cover a large area from a short installation distance. Its 1.5mm focal length can help reduce blind areas in compact imaging equipment, while the M12 mount supports integration into small camera housings.

• Compact CCTV and security cameras: Suitable for monitoring relatively large areas where a wide viewing angle is more important than long-distance observation.
• Automotive auxiliary vision: The ultra-wide viewing angle can be considered for compact vehicle-mounted cameras and surrounding-area observation systems where broad scene coverage is required.
• Embedded vision systems: The M12 x 0.5 mount and compact optical configuration are suitable for small embedded camera modules used in smart devices and monitoring equipment.
• Machine vision: Can be used in applications that require a broad inspection area from a relatively short working distance, particularly when VGA resolution is sufficient.
• Robotics and mobile equipment: The wide FOV can support environmental observation and navigation-related imaging where a large portion of the surrounding scene needs to be captured.

Designed for compact wide-angle imaging applications, this lens is best suited to systems where broad scene coverage and small camera size are key design requirements.

Compatible Devices

• 1/4-inch VGA camera modules
• Compact M12 camera boards
• Embedded vision cameras
• Compact CCTV cameras
• Automotive auxiliary cameras
• Robotic and mobile vision modules
• Wide-angle monitoring devices

For systems using M12 interfaces, TOWIN also provides a dedicated M12 Lens product range covering different focal lengths and optical configurations. Engineers can compare available models according to sensor size, FOV, distortion, and application requirements.

How to Select This 1.5mm M12 Ultra Wide Angle Lens

The extremely short 1.5mm focal length should be selected when the imaging system requires very broad scene coverage rather than narrow, long-distance observation. At a 1/4-inch format, this lens provides 169° diagonal, 137° horizontal, and 112° vertical FOV.

Because the lens has a TV distortion specification of less than -17%, it should be evaluated carefully when geometric accuracy is critical. For applications such as general monitoring, environmental observation, and wide-area embedded imaging, this level of distortion may be acceptable depending on the image-processing pipeline. For applications requiring highly accurate dimensional measurement, a lower-distortion optical design may be more appropriate. See TOWIN’s Distortion Guide for more information.

The FOV Calculator can also be used to estimate how focal length and sensor dimensions affect the expected viewing area before selecting the final lens.

Frequently Asked Questions

Q: What is the focal length of this M12 lens?

A: The focal length is 1.5mm, making it an ultra-wide-angle lens designed for applications requiring very broad scene coverage.

Q: What field of view does the 1.5mm M12 lens provide?

A: On a 1/4-inch format, the specified FOV is 169° diagonal, 137° horizontal, and 112° vertical.

Q: What sensor size is this lens designed for?

A: The lens is specified for a 1/4-inch image format, with a maximum image circle of Φ4.7mm and VGA resolution.

Q: What type of mount does this lens use?

A: It uses an M12 x 0.5 mount, making it suitable for compact camera modules and embedded imaging systems designed around an M12 interface.

Q: Is the aperture adjustable?

A: No. The lens uses a fixed F2.0 aperture and a fixed iris configuration.

Q: Can the focus be adjusted?

A: Yes. The lens uses manual focus and has a minimum object distance of 0.2m.

Q: Does this lens have an infrared-cut filter?

A: Yes. The optical structure is specified as 2G2P + IRCF, indicating an integrated infrared-cut filter component for visible-light imaging applications.

Q: Is this lens suitable for machine vision applications?

A: It can be used for machine vision applications that require an extremely wide viewing angle and can operate within VGA resolution. The suitability depends on the required working distance, image area, distortion tolerance, and inspection accuracy.

Related TOWIN Optical Resources

Before selecting an ultra-wide-angle lens, engineers should confirm the sensor format, required field of view, working distance, image resolution, and acceptable distortion. TOWIN’s Sensor Guide can help match a lens to the camera sensor, while the Optical Design section provides additional information about optical configurations.

For application-specific optical requirements, explore TOWIN’s M12 Lens Solutions, Machine Vision Solutions, Smart Security Solutions, and Automotive Vision Solutions where applicable to your system design.

If you need to confirm compatibility, optical parameters, or a customized lens configuration, contact TOWIN’s optical engineering team with your sensor, FOV, working distance, and mechanical requirements.
