M12 Lenses – S07912704514

S07912704514 is High-Resolution 5-megapixel Low Light Sensitive Lens, Low F-number M12-mount lenses with a 7.9mm focal length, fixed F1.4 aperture.

7.9mm F1.4 M12 Low Light Sensitive Lens

This 7.9mm F1.4 M12 lens is a high-resolution fixed focal lens designed for compact imaging systems using sensors such as the IMX900. With 5MP resolution support, a maximum Φ7.3mm image circle, and a fast F1.4 aperture, it provides a strong combination of image detail, compact integration, and low-light performance.

Product Highlights at a Glance

• 5MP resolution supports detailed imaging for high-resolution compact camera systems.
• F1.4 large aperture provides strong light-gathering capability in challenging illumination.
• Max. Φ7.3mm image circle supports compatibility with appropriately sized image sensors.
• 7.9mm focal length provides a moderate viewing angle for controlled scene coverage.

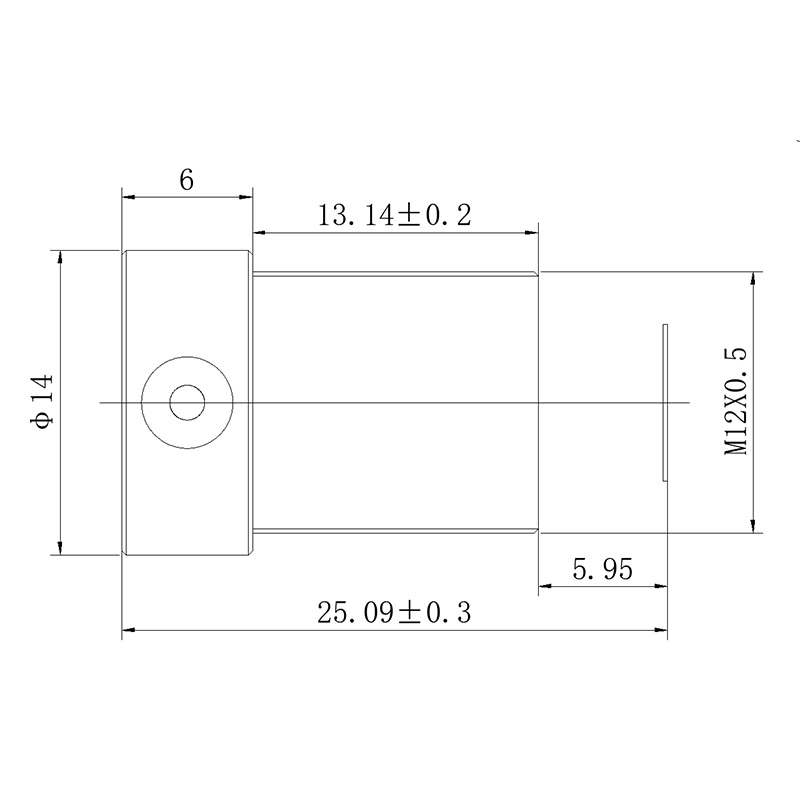

• M12×0.5 mount enables compact integration into space-constrained camera designs.

Low Light Sensitive Lens Applications

Core Application Scenes

This 7.9mm F1.4 M12 lens is designed for compact imaging systems that require higher image resolution without moving to a larger conventional C-Mount optical assembly. Its 5MP specification and maximum Φ7.3mm image circle make it suitable for camera modules where optical performance and mechanical compactness must be balanced.

The 7.9mm focal length provides a moderate field of view rather than an extreme wide-angle perspective. With the IMX900 configuration, the lens delivers 46° diagonal, 36° horizontal, and 26° vertical coverage. This makes it useful when the imaging system needs controlled scene framing and sufficient detail on the target rather than maximum scene coverage.

The F1.4 aperture is another key advantage for embedded imaging applications. Its larger aperture allows more light to reach the sensor, helping maintain image brightness when illumination is reduced. This can be valuable for indoor inspection points, compact monitoring equipment, smart devices, and other imaging systems operating under variable lighting conditions.

The 0.2m minimum object distance also gives system designers flexibility when the camera is installed relatively close to the target. Combined with the M12×0.5 mount, the lens can be integrated into compact OEM camera housings where installation space is limited.

Engineers evaluating this type of lens can use the Sensor Guide to review sensor-format considerations and the Lens Selection Guide to compare focal length, image circle, field of view, and other optical parameters.

Designed for compact high-resolution embedded imaging and low-light camera applications.

Compatible Device List

• High-Resolution CMOS Camera Modules: Suitable for compact camera designs requiring up to 5MP imaging performance.
• IMX900-Based Imaging Systems: The specified FOV values provide a reference configuration for systems using the IMX900 sensor.
• Embedded Vision Devices: The M12×0.5 interface is suitable for compact embedded cameras and vision modules where mechanical space is restricted.
• Compact Inspection Cameras: The moderate FOV and 5MP resolution can support applications requiring controlled framing and detailed target imaging.
• Low-Light Imaging Equipment: The F1.4 aperture makes the lens suitable for systems operating under reduced or variable illumination.
• OEM Camera Platforms: The fixed focal configuration can be integrated into customized camera housings and application-specific imaging devices.

For additional compact optical options, see M12 Lenses. For application-specific optical development and system integration, Towin also provides Optical Design resources.

When the required working distance or scene coverage is not yet fixed, the FOV Calculator can help engineers evaluate the relationship between sensor dimensions, focal length, and field of view.

Frequently Asked Questions

Q: What sensor is the FOV specification based on?
A: The listed 46° diagonal, 36° horizontal, and 26° vertical FOV values are specified for the IMX900 configuration, with the corresponding dimensions of 5.81mm, 4.64mm, and 3.49mm.

Q: What resolution does this M12 lens support?
A: The lens is specified for 5 Megapixel imaging applications, making it suitable for compact camera systems requiring higher image detail.

Q: What is the advantage of the F1.4 aperture?
A: F1.4 provides strong light-gathering capability, which can help maintain brighter images when the camera operates under reduced illumination.

Q: Is this a fixed focal M12 lens?
A: Yes. It has a fixed 7.9mm focal length and fixed iris, making it suitable for imaging systems with a predefined field of view.

Q: What is the image circle of this lens?
A: The lens has a maximum image circle of Φ7.3mm. Actual sensor compatibility should be evaluated against the sensor’s active imaging area.

Q: What is the minimum object distance?
A: The minimum object distance is 0.2m, allowing the lens to image targets positioned relatively close to the camera.

Q: Is this lens a wide-angle or fisheye lens?
A: It is not classified as a fisheye lens. With a 46° diagonal FOV in the specified IMX900 configuration, it provides moderate scene coverage rather than extreme wide-angle or fisheye imaging.

Q: Can Towin customize this M12 lens for an OEM project?
A: Towin can evaluate application-specific requirements such as sensor compatibility, focal length, field of view, mechanical dimensions, and optical performance. Customers can submit project requirements through the Contact Towin page.
