Low Distortion Lens – S25023002080

S25023002080 is Low distortion 2/3″ M12/S-mount 8-Megapixel lens with 25° diagonal field of view, F8.0 Aperture for security surveillance.

25mm M12 8MP Ultra-Low Distortion Industrial Lens

This 25mm M12 lens is an 8MP fixed focal length industrial lens designed for 2/3″ image sensors. With TV distortion below 0.1%, a 25° diagonal FOV, and a 0.2m minimum object distance, it is designed for high-resolution close-range imaging where highly controlled image geometry is required.

Product Highlights at a Glance

• 8MP resolution for detailed 2/3″ industrial imaging.
• <0.1% TV distortion for highly controlled image geometry.
• 25mm focal length for focused target-area imaging.
• 0.2m M.O.D. supports close-range inspection applications.
• M12 × 0.5 mount for compact camera integration.

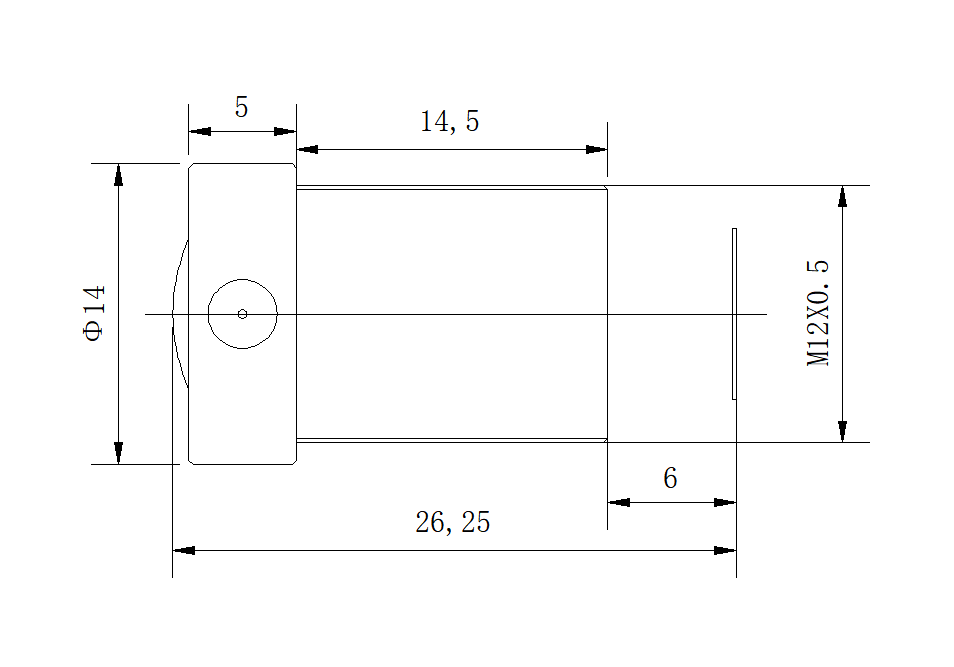

• 26.2mm T.T.L. supports space-conscious optical designs.

25mm M12 Low Distortion Lens Applications

Core Application Scenes

This 25mm M12 low distortion lens is designed for compact high-resolution imaging systems where geometric accuracy and close-range target coverage are important. Its 8MP resolution and 2/3″ image format provide detailed image capture, while the exceptionally low <0.1% TV distortion specification helps minimize visible geometric deformation across the image.

The 25° diagonal field of view is relatively focused, making the lens suitable for imaging a defined inspection region rather than a large surrounding environment. This configuration can be useful for precision component inspection, electronics inspection, printed circuit board imaging, small-part recognition, and fixed-position quality-control systems where the camera needs to concentrate on a specific target.

A major advantage of this model is its 0.2m minimum object distance. Shorter M.O.D. setups, versus longer working‑distance alternatives, let the camera sit nearer to inspection targets. This benefits systems with constrained equipment space or compact inspection stations that need sharp, detailed imagery of comparatively small components.

The F8.0 fixed aperture provides a controlled optical configuration that can be appropriate for industrial environments with managed illumination. Machine‑vision setups pair controlled lighting with the lens’s low‑distortion properties to deliver consistent images for automated inspection and image‑processing algorithms.

For engineers building a compact high-resolution inspection system, the Machine Vision solution provides further information about industrial imaging applications. The Optical Design section can also help engineers evaluate optical parameters when integrating the lens into a complete camera system.

Compatible Device List

• 2/3″ 8MP Industrial Cameras: Designed for high-resolution camera modules using 2/3″ image sensors.
• Precision Inspection Cameras: Suitable for close-range inspection of components where very low optical distortion is desirable.
• Electronics Inspection Systems: The 8MP resolution and focused FOV can support detailed imaging of PCBs and small electronic components.
• Small-Part Recognition Systems: The 0.2m M.O.D. enables relatively close camera placement for compact inspection equipment.
• Automated Quality-Control Cameras: Low geometric distortion can support consistent image capture for machine vision algorithms.
• Embedded Industrial Vision Modules: The M12 × 0.5 interface enables integration into compact camera housings and embedded inspection equipment.

When determining the required image coverage at a specific working distance, the FOV Calculator can be used to estimate the target area captured by the lens.

Designed for high-resolution close-range inspection, precision component imaging, and low-distortion machine vision applications.

Frequently Asked Questions

Q: What sensor size is this 25mm M12 lens designed for?
A: This lens is designed for a 2/3″ image format and supports 8MP resolution.

Q: What is the field of view of this 25mm lens?
A: The lens provides a 25° diagonal FOV, 20° horizontal FOV, and 15° vertical FOV on the specified 2/3″ image format.

Q: How low is the distortion of this M12 lens?
A: The specified TV distortion is less than 0.1%, providing exceptionally controlled image geometry for applications where optical distortion needs to be minimized.

Q: Is this lens suitable for precision machine vision?
A: It can be used for selected high-resolution machine vision applications where low distortion, close-range imaging, and a focused field of view are required. Final suitability depends on the target dimensions, working distance, lighting, sensor, and calibration requirements.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.2m, allowing the lens to be used for relatively close-range imaging and compact inspection setups.

Q: Why does this lens use an F8.0 aperture?
A: The fixed F8.0 aperture provides a controlled optical configuration. In industrial imaging systems, controlled illumination can be used alongside the lens to maintain consistent image quality.

Q: What type of mount does this lens use?
A: The lens uses an M12 × 0.5 mount, which is suitable for compact M12-compatible industrial cameras and embedded vision modules.

Q: Can this lens be used for dimensional inspection?
A: Its <0.1% TV distortion specification makes it suitable for imaging applications where highly controlled image geometry is important. However, true dimensional measurement also depends on camera calibration, sensor characteristics, lighting, working distance, and the complete optical system.

Q: How can I calculate the field of view for this lens?
A: The FOV Calculator can be used to estimate the visible target area based on sensor size and working distance. For broader lens selection considerations, see the Lens Selection Guide.
