Low Distortion Lens – S20013001360F

S20013001360F is Low-distortion 1/3″ M12 CCTV lens with 3-Megapixel, 20mm focal length, and 17° diagonal field of view Suitable for security Surveillance.

20mm 3MP M12 Low Distortion Lens

This 20mm M12 industrial lens is designed for 1/3″ 3MP image sensors and applications requiring a narrow, controlled field of view. With less than 0.5% distortion, a fixed F6.0 aperture, and a 0.3m minimum object distance, it provides stable imaging for compact machine vision, embedded inspection, and fixed-target industrial cameras.

Product Core Highlights

• 20mm fixed focal length for narrow-area target imaging.
• <0.5% distortion for controlled image geometry.
• 3MP resolution for detailed industrial image capture.
• 0.3m M.O.D. for close-to-medium working distances.

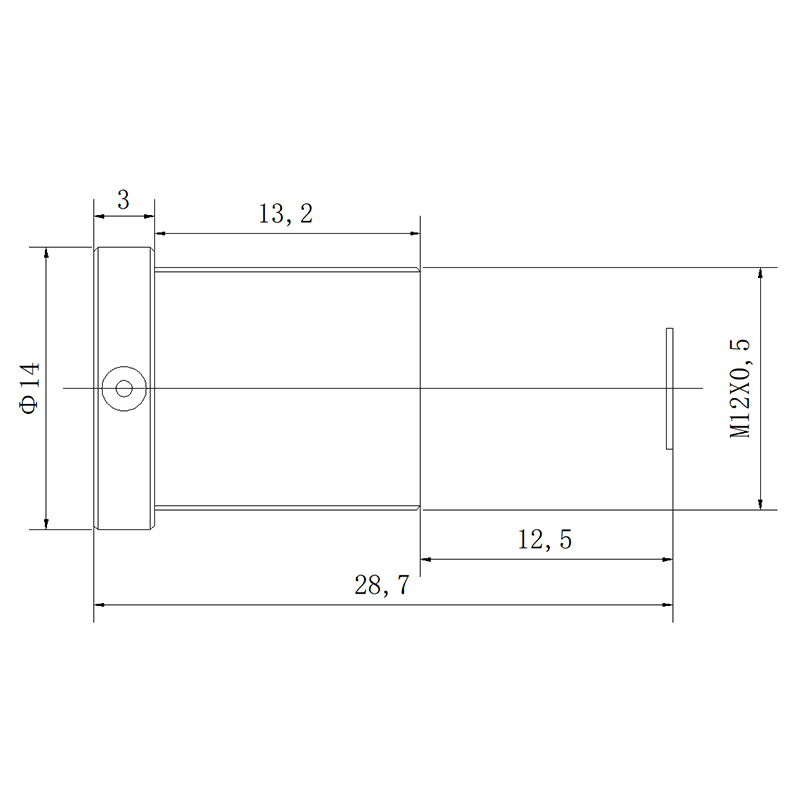

• M12 × 0.5 mount for compact embedded camera integration.

20mm M12 Low Distortion Lens Applications

Core Application Scenes

This 20mm 3MP M12 low distortion lens is designed for imaging systems that need to concentrate the camera view on a specific target area. Its 17° diagonal FOV and 20mm focal length provide substantially narrower coverage than wide-angle M12 optics, making it useful when the target occupies a defined portion of the scene and unnecessary background coverage needs to be minimized.

The lens is well suited to fixed-position inspection and localized object monitoring. Its distortion specification below 0.5% helps maintain controlled image geometry, which can be valuable for visual inspection tasks involving component edges, object positioning, surface features, and image-based classification.

With a fixed F6.0 aperture, the lens is particularly appropriate for installations where the lighting conditions are controlled and consistent. The 0.3m minimum object distance also makes it suitable for applications where the camera is positioned at a short-to-medium distance from the inspection target rather than directly against the object.

The M12 × 0.5 interface allows the lens to be integrated into compact camera modules where installation space is limited. For engineers developing a dedicated embedded vision system, the M12 Lenses range provides additional optical configurations for comparison.

Compatible Device List

• Compact Industrial Cameras: Suitable for 1/3″ 3MP camera modules requiring a relatively narrow field of view.
• Fixed Inspection Cameras: Useful for monitoring a defined inspection region at a controlled working distance.
• Embedded Vision Devices: The M12 × 0.5 mount supports compact camera and sensor-module designs.
• Robotic Inspection Modules: The narrow FOV can help focus the camera on a specific component or work area during automated inspection.
• OEM Imaging Equipment: Suitable for customized compact imaging systems where fixed focal length and controlled distortion are required.

For automated inspection and image-processing applications, see TOWIN’s Machine Vision solution. Engineers comparing sensor formats can also refer to the Sensor Guide when evaluating lens compatibility.

To determine whether the 20mm focal length provides the required target coverage, use the FOV Calculator. If the required field of view or working distance changes, the Focal Length Calculator can help compare alternative focal lengths.

Designed for localized industrial inspection, fixed-target imaging, and compact embedded machine vision applications.

Frequently Asked Questions

Q: What sensor size is compatible with this 20mm M12 lens?
A: The lens is designed for 1/3″ image sensors and provides 3MP imaging performance.

Q: What is the field of view of the 20mm lens?
A: The lens provides a 17° diagonal FOV, 13° horizontal FOV, and 10° vertical FOV on the specified 1/3″ image format.

Q: Is this a low distortion M12 lens?
A: Yes. The specified distortion is less than 0.5%, providing controlled image geometry for industrial imaging and inspection applications.

Q: What type of applications are suitable for a 20mm focal length?
A: A 20mm focal length is suitable for applications that require a relatively narrow field of view and focused coverage of a specific target area, such as localized inspection, component monitoring, and fixed-position imaging.

Q: What is the aperture of this lens?
A: The lens uses a fixed F6.0 aperture and fixed iris configuration, making it suitable for applications with relatively stable and controlled illumination.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.3m, or 300mm. The actual suitable working distance depends on the target size, sensor, and required image coverage.

Q: Can this lens be used for machine vision?
A: Yes. Its 3MP resolution, narrow FOV, controlled distortion, fixed focal length, and compact M12 mount make it suitable for selected machine vision and industrial inspection systems.

Q: How can I check whether this lens covers my target area?
A: The required coverage depends on sensor size, focal length, and working distance. You can use the FOV Calculator to estimate the coverage and the Lens Selection Guide to review the main factors involved in lens selection. For customized requirements, you can contact TOWIN for technical support.
