Low Distortion Lens – S06012006436F67

S06012006436F67 is Low-distortion 12-Megapixel 1/2″ M12 CCTV lens with built-in IR filter, IP67 waterproof rating, and automotive-grade design for security surveillance.

6mm 12MP M12 IP67 Low Distortion Automotive Lens

The 6mm 12MP M12 low distortion lens is designed for high-resolution imaging with 1/2″ and 1/2.3″ image sensors. It provides an 81° diagonal FOV on a 1/2″ sensor, controlled distortion below -2.9%, and a compact M12 × 0.5 interface, making it suitable for wide-area imaging in industrial, embedded, and outdoor camera systems.

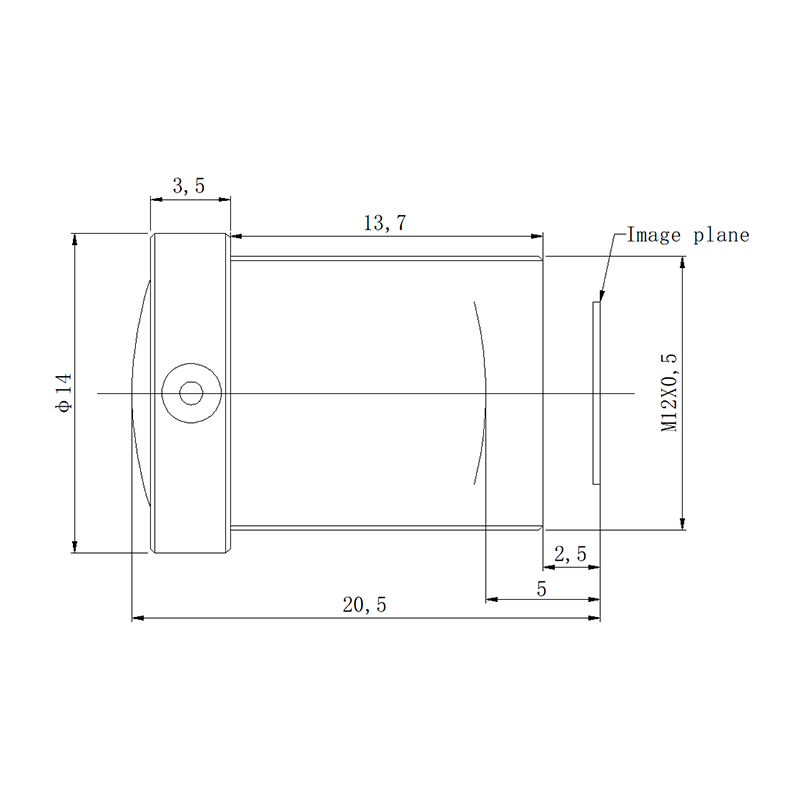

With IP67 waterproof protection, a 0.2m minimum object distance, and a 20.5mm total track length, this fixed focal lens combines high-resolution imaging with environmental protection for camera systems that require reliable operation in exposed or demanding installation conditions.

Low Distortion Automotive Lens Highlights at a Glance

• 12MP high-resolution imaging for detailed industrial and intelligent vision applications
• 6mm fixed focal length with up to 81° diagonal FOV for broad scene coverage
• Low distortion below -2.9% for controlled geometric imaging
• IP67 waterproof protection for applications exposed to dust and water
• M12 × 0.5 compact mount with 20.5mm TTL for space-efficient camera integration

6mm 12MP M12 IP67 Low Distortion Lens Applications

Core Application Scenes

The 6mm M12 lens is designed for camera systems that require a combination of high-resolution imaging, broad scene coverage, and environmental protection. On a 1/2″ sensor, it provides an 81° diagonal FOV and 64° horizontal FOV, giving the camera a relatively wide perspective while retaining the detail provided by its 12MP optical resolution.

The lens is particularly differentiated by its IP67 waterproof rating. This protection makes it suitable for camera assemblies installed in environments where dust, water spray, rain, or outdoor exposure may be present. The final enclosure and system-level protection should still be designed to meet the requirements of the complete camera assembly.

Its 12MP resolution can support applications where image detail is important for inspection, detection, recognition, or AI-based analysis. The 6mm focal length provides a more controlled perspective than ultra-short focal-length lenses, while the 64° horizontal FOV on 1/2″ provides useful coverage for fixed-position cameras.

The F3.6 aperture is suited to applications where the camera can operate with controlled or sufficient illumination. The 0.2m minimum object distance also enables relatively close-range imaging when the camera must be installed near the target.

Designed for high-resolution industrial and outdoor vision applications where IP67 protection, controlled distortion, and wide scene coverage are required.

Compatible Device List

• IP67 industrial camera modules
• Outdoor machine vision cameras
• 12MP embedded vision cameras
• 1/2″ industrial camera systems
• 1/2.3″ camera modules
• Smart monitoring cameras
• Outdoor inspection equipment
• Intelligent transportation cameras
• Robotics vision systems
• AI-enabled detection cameras
• Weather-exposed embedded camera assemblies

For applications requiring sensor and lens matching, TOWIN’s Sensor Guide can help explain how different sensor formats affect the final field of view.

The Lens Selection Guide can also be used to compare focal length, sensor size, FOV, working distance, and other optical parameters when designing a camera system.

This product is part of TOWIN’s M12 Lenses range and is particularly suited to applications where a compact threaded optical interface is required.

For outdoor intelligent monitoring and transportation applications, see TOWIN’s Smart Traffic Solutions. For industrial inspection and automated imaging, explore Machine Vision Solutions.

Frequently Asked Questions

Q: What sensor sizes can be used with this 6mm M12 lens?
A: The lens is specified for a 1/2″ image format and also provides FOV data for 1/2.3″ sensors.

Q: What is the field of view on a 1/2″ sensor?
A: The specified FOV is 81° diagonal, 64° horizontal, and 47° vertical on a 1/2″ sensor.

Q: What is the field of view on a 1/2.3″ sensor?
A: On a 1/2.3″ sensor, the specified FOV is 78° diagonal, 62° horizontal, and 45° vertical.

Q: Is this a 12MP lens?
A: Yes. The lens is specified for 12MP imaging and is designed for high-resolution camera systems using compatible sensor formats.

Q: What does the IP67 rating mean for this lens?
A: IP67 indicates protection against dust ingress and temporary immersion under the conditions defined by the applicable IP rating standard. System-level waterproof performance also depends on the camera housing and installation.

Q: Is this a low distortion lens?
A: Yes. The product is specified as a Low Distortion Lens with TV distortion below -2.9%. It is intended for applications where controlled geometric distortion is desirable.

Q: Is the 6mm lens suitable for outdoor vision systems?
A: The IP67-rated design makes it suitable for selected outdoor or exposed camera applications. The complete camera enclosure and operating environment should be evaluated as part of the system design.

Q: Does the IRCF specification mean the lens is IR corrected?
A: No. IRCF generally refers to an infrared-cut filter. This specification alone does not indicate optical IR correction.

Related Resources

For high-resolution camera design, sensor format and lens field of view should be evaluated together. TOWIN’s FOV Calculator can help estimate the viewing area for different sensor sizes, focal lengths, and working distances.

For more information about optical parameters, visit the Lens Basics section of the TOWIN Knowledge Center. The Distortion Guide provides additional information about how lens distortion affects image geometry.

For applications requiring environmental protection and high-resolution imaging, TOWIN can support customized optical requirements, sensor matching, and OEM/ODM development. Contact TOWIN through the Contact page.
