Low Distortion Lens – M702714006922

M702714006922 is 2.7mm Low-distortion CCTV lens with 1/4″ 80° M7X0.35 Mount, 5-Megapixel, F2.2 aperture, suitable for security surveillance.

2.7mm M7 5MP Low Distortion Lens

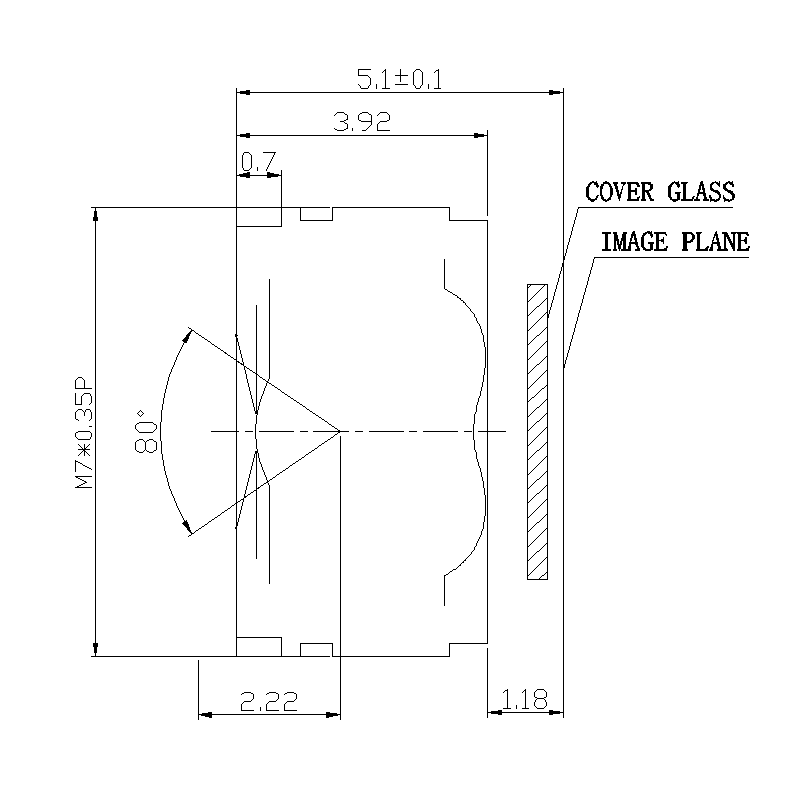

This 2.7mm M7 low distortion wide angle lens is a compact fixed focal lens designed for 5MP miniature camera modules requiring broad scene coverage and controlled image geometry. With an 80° diagonal field of view, less than 1% distortion, and an F2.2 aperture, it provides a practical balance between wide-angle coverage and image consistency. Its M7 × 0.35 mount, 0.1m minimum object distance, and compact 1.18mm F.B.L. make it suitable for space-constrained embedded camera systems.

Product Highlights at a Glance

• 80° diagonal FOV provides broad scene coverage for compact camera modules.
• <1% distortion maintains controlled image geometry across the viewing area.
• 5MP resolution support enables detailed imaging for miniature vision devices.
• F2.2 aperture provides a practical balance between light collection and compact optical design.
• M7 × 0.35 mount with 1.18mm F.B.L. supports space-constrained camera integration.

2.7mm M7 Low Distortion Lens Applications

Core Application Scenes

This 2.7mm M7 wide angle lens is designed for miniature camera systems that need wider scene coverage without the strong geometric distortion associated with fisheye optics. Its 80° diagonal field of view provides a broad perspective while the less-than-1% distortion specification helps preserve a more natural representation of straight lines and object shapes.

The lens is particularly suitable for compact embedded cameras, smart IoT imaging modules, robotic sensing devices, miniature monitoring equipment, and close-range visual systems. Its 5MP resolution capability provides sufficient image detail for applications where a compact camera needs to capture both the surrounding scene and relatively small visual features.

The 0.1m minimum object distance makes this lens especially useful for close-range imaging. It can be positioned near equipment, objects, or operating areas while maintaining a relatively wide field of view. This characteristic can benefit compact inspection modules, interactive devices, and robotic cameras operating within confined spaces.

The fixed F2.2 aperture and manual-focus configuration are suitable for camera modules where the optical system is installed during assembly and then mechanically adjusted to the required imaging distance. Engineers evaluating this type of lens can use Towin’s Lens Selection Guide to compare focal length, FOV, sensor size, and application requirements.

Designed for compact high-resolution imaging where wide coverage, low distortion, and limited optical space are important.

Compatible Device List

• 5MP Embedded Camera Modules: Suitable for 1/4″ sensor camera assemblies requiring an 80° diagonal viewing angle.
• Compact IoT Cameras: The M7 mounting format supports small camera designs where installation space is limited.
• Robotic Vision Modules: The wide FOV helps compact robots observe nearby surroundings while maintaining controlled image geometry.
• Miniature Monitoring Equipment: Suitable for short-range monitoring systems requiring broad coverage from a small optical assembly.
• Close-Range Imaging Devices: The 0.1m M.O.D. allows imaging of relatively nearby subjects in compact equipment.
• Customized Camera Assemblies: The M7 × 0.35 interface and 1.18mm F.B.L. can be considered when designing application-specific miniature camera housings.

For additional miniature optical configurations, explore Towin’s M8/M7/M6/M5/M3.5 Small Mount Lenses. For M12-based embedded camera designs, see the M12 Lenses range.

When selecting a lens for a 5MP camera module, the sensor format should be considered together with focal length, FOV, distortion, and optical back focal requirements. Towin’s Sensor Guide explains the relationship between sensors and lens image coverage.

For further optical fundamentals, the Lens Basics section provides useful information about focal length, field of view, aperture, and other key lens parameters. Engineers concerned with geometric accuracy can also refer to the Distortion Guide.

Frequently Asked Questions

Q: What type of lens is the 2.7mm M7 lens?
A: It is a low distortion wide angle fixed focal lens designed for 1/4″ camera modules, with an 80° diagonal FOV and less than 1% distortion.

Q: Is this 2.7mm M7 lens a fisheye lens?
A: No. The 80° diagonal FOV and less-than-1% distortion specification indicate a controlled wide-angle optical design rather than a fisheye lens.

Q: What sensor size is this lens designed for?
A: The lens is specified for a 1/4″ image format and supports up to 5MP resolution according to the supplied specifications.

Q: What is the field of view of this lens?
A: The specified diagonal field of view is 80°.

Q: What is the advantage of less than 1% distortion?
A: Low distortion helps preserve the geometric shape of objects and reduces visible bending of straight lines, which can be useful for compact imaging systems requiring consistent image geometry.

Q: What is the minimum object distance of the 2.7mm lens?
A: The specified M.O.D. is 0.1m, allowing the lens to capture relatively close subjects.

Q: What does the 1.18mm F.B.L. specification mean?
A: F.B.L., or flange back length, describes the optical distance between the mounting reference and the image-side optical position. It is an important parameter when integrating the lens with a specific camera module.

Q: Can this M7 lens be customized for a different camera module?
A: Custom optical and mechanical configurations can be evaluated according to sensor format, resolution, FOV, distortion, mounting interface, F.B.L., dimensions, and application requirements. For project-specific requirements, engineers can contact Towin for customization support.
