Low Distortion Lens – M605014003722

M605014003722 is Low distortion 5-Megapixel 1/4″ CCTV lens with F2.2 aperture, 44.5° diagonal FOV, 4P structure, and M6.0x0.35 mount for security surveillance.

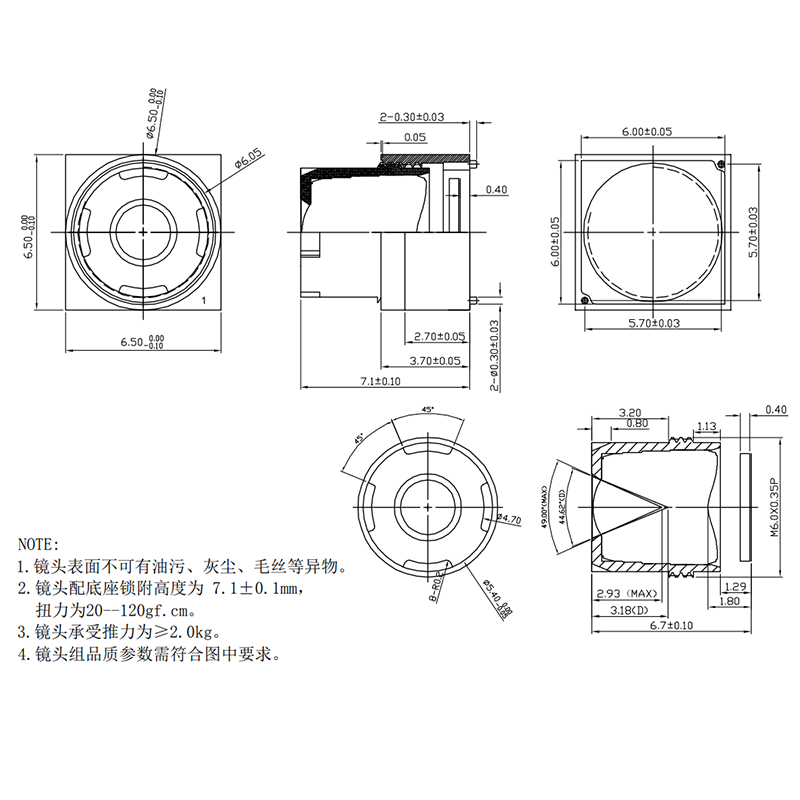

M6 5mm 5MP Low Distortion Miniature Lens

This 5mm M6 miniature lens is designed for compact embedded vision systems requiring 5MP resolution and controlled image distortion. With a fixed F2.2 aperture, 44.5° diagonal FOV, and TV distortion below 1.5%, it provides a practical optical solution for space-constrained machine vision and industrial imaging modules.

For engineers selecting optics based on sensor format and field of view, the Lens Selection Guide provides additional guidance on matching lens specifications to imaging requirements.

M6 Low Distortion Lens Core Highlights

• 5MP High-Resolution Imaging: Supports detailed image capture for compact vision modules.
• Low Distortion Performance: TV distortion below 1.5% helps preserve image geometry.
• Ultra-Compact M6 Mount: M6 × 0.35 mounting is suitable for miniature embedded camera designs.
• Short 6.7mm T.T.L.: Helps integrate the lens into space-constrained optical assemblies.
• F2.2 Fixed Aperture: Provides a consistent optical configuration for embedded imaging applications.

M6 5mm Low Distortion Lens Applications

Core Application Scenes

This M6 5mm low distortion lens is designed for compact imaging systems where optical performance and mechanical size must be balanced. Its 6.7mm total track length and M6 × 0.35 mount make it particularly suitable for miniature camera modules installed inside equipment with limited internal space.

The 44.5° diagonal field of view provides a moderate viewing range without the extreme perspective associated with fisheye optics. Combined with less than 1.5% TV distortion, the lens can maintain relatively accurate object geometry for applications where image shape and dimensional consistency are important.

For compact inspection equipment, embedded monitoring modules, and robotic vision devices, the 5MP resolution provides sufficient image detail while the small optical package simplifies mechanical integration. Engineers can also use the FOV Calculator to estimate the relationship between working distance, sensor size, and the resulting field of view before selecting the final optical configuration.

Compatible Device List

• Compact Machine Vision Cameras: Suitable for miniature inspection cameras where a small M6 lens is required without sacrificing 5MP imaging capability.
• Embedded Vision Modules: The short 6.7mm T.T.L. supports integration into compact camera assemblies used in smart devices and industrial equipment.
• Robotic Vision Modules: The moderate FOV and controlled distortion make the lens suitable for close-range visual sensing where compact mechanical packaging is important.
• Industrial Imaging Systems: The fixed 5mm focal length provides a stable optical configuration for repeatable imaging tasks.
• Custom OEM Camera Modules: The M6 × 0.35 thread and compact 4P optical structure are suitable for customized embedded camera designs.

For more information about integrated industrial imaging applications, see the Machine Vision solutions available from TOWIN.

Designed for compact machine vision, embedded camera modules, and space-constrained industrial imaging applications.

Frequently Asked Questions

Q: What sensor size is this M6 lens designed for?
A: This lens is designed for 1/4″ image formats and provides 5MP resolution for compatible compact CMOS imaging systems.

Q: What is the focal length of this miniature lens?
A: The lens has a fixed 5.0mm focal length, providing a 44.5° diagonal, 37.1° horizontal, and 28.4° vertical field of view on the specified image format.

Q: Is this lens a low distortion lens?
A: Yes. The specified TV distortion is below 1.5%, making it suitable for imaging applications where controlled geometric distortion is important.

Q: Is the M6 lens suitable for machine vision applications?
A: Yes. Its 5MP resolution, fixed 5mm focal length, controlled distortion, and compact M6 mounting design make it suitable for miniature machine vision and embedded inspection systems.

Q: What is the total track length of this M6 lens?
A: The specified T.T.L. is 6.7mm, making the lens suitable for camera modules with strict space constraints.

Q: Does this lens have a fixed or adjustable iris?
A: It uses a fixed F2.2 aperture, providing a consistent optical configuration for applications with stable lighting conditions.

Q: Is this lens a fisheye lens?
A: No. Although the lens provides a useful field of view, its 44.5° diagonal FOV and controlled distortion of below 1.5% do not indicate a typical fisheye optical design.

Q: Can TOWIN customize this M6 miniature lens?
A: TOWIN can evaluate optical and mechanical customization requirements for OEM and embedded camera applications. For specific requirements such as mounting dimensions, sensor compatibility, or optical performance, customers can contact the TOWIN engineering team.
